Home Screens

When starting an Executive Elite system, the first page that comes up on the

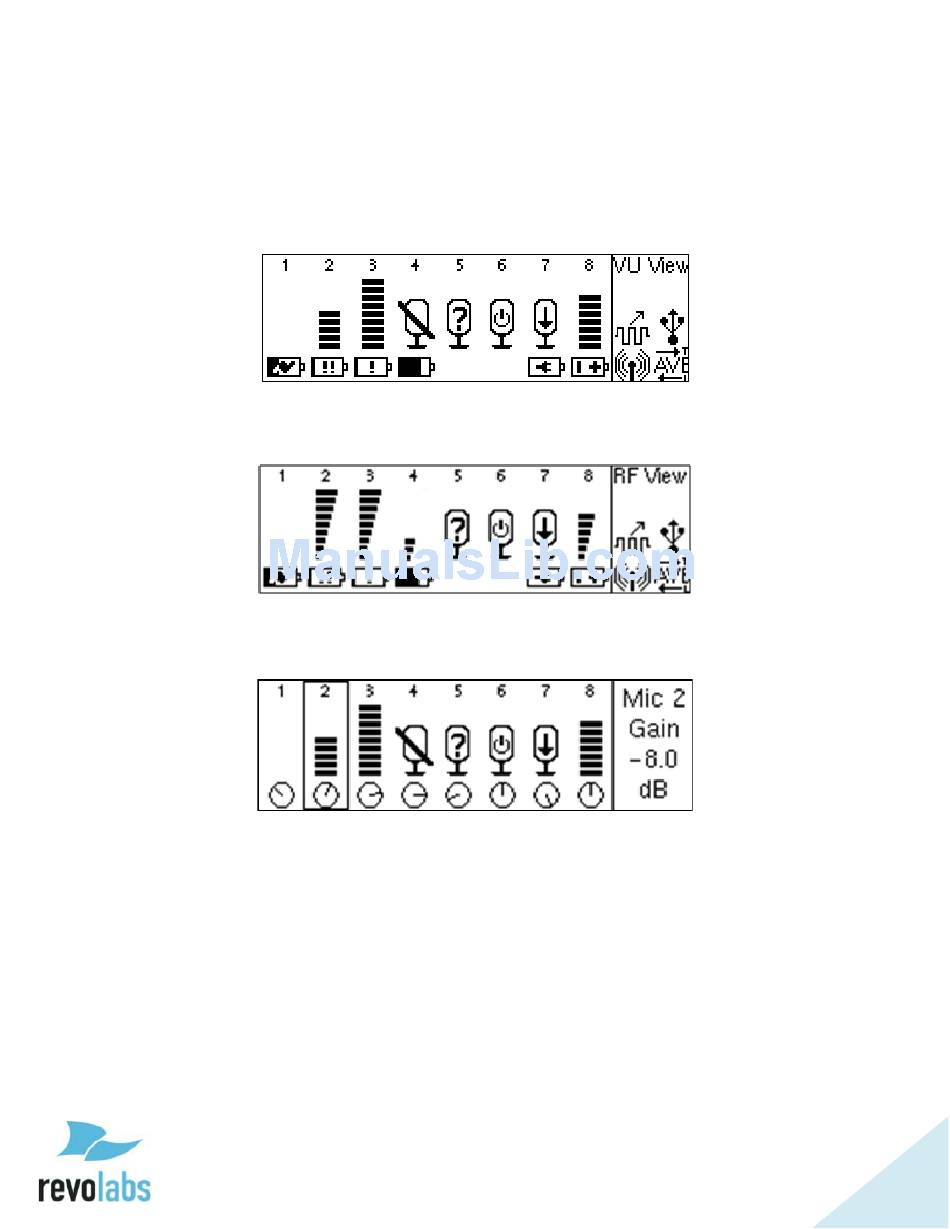

Front Panel LCD is the Volume Unit (VU) screen. This screen is one of the 3
home screens on the Front Panel UI. Using the "up" and "down" keys to the
right of the LCD while on the VU page will show the other two home screens.
The VU screen shows the audio volume for each unmuted, linked microphone,
as well as battery charge information.
"Up" from the VU screen, the RF View home screen shows the radio signal
strength as measured on the receiver for each microphone.
"Down" from the VU screen, the Gain control screen shows the VU meters as
well as the input gain setting for each microphone channel, which the user can
change from this screen. To adjust the gain, a user presses the "Enter" while
on the gain screen, and a black highlighted selection will appear. The channel
is selected using the "left" and "right" keys and once in the correct channel, the
up and down keys change the gain in 1 dB steps. The gain setting for the
highlighted channel is listed on the right-hand side of the LCD. The user
cannot leave the gain control screen while in channel selection mode. To leave
the screen, press "Enter" again to get into the normal mode. "Up" and "Down"
will now switch between home screens again, and using the "Right" arrow key
will enter the main menu.
