Contents of packaging:

1 x rangehood
1 x packet of fasteners
2 x face plates
1 x Installation and Operating Instructions

Ducting Options

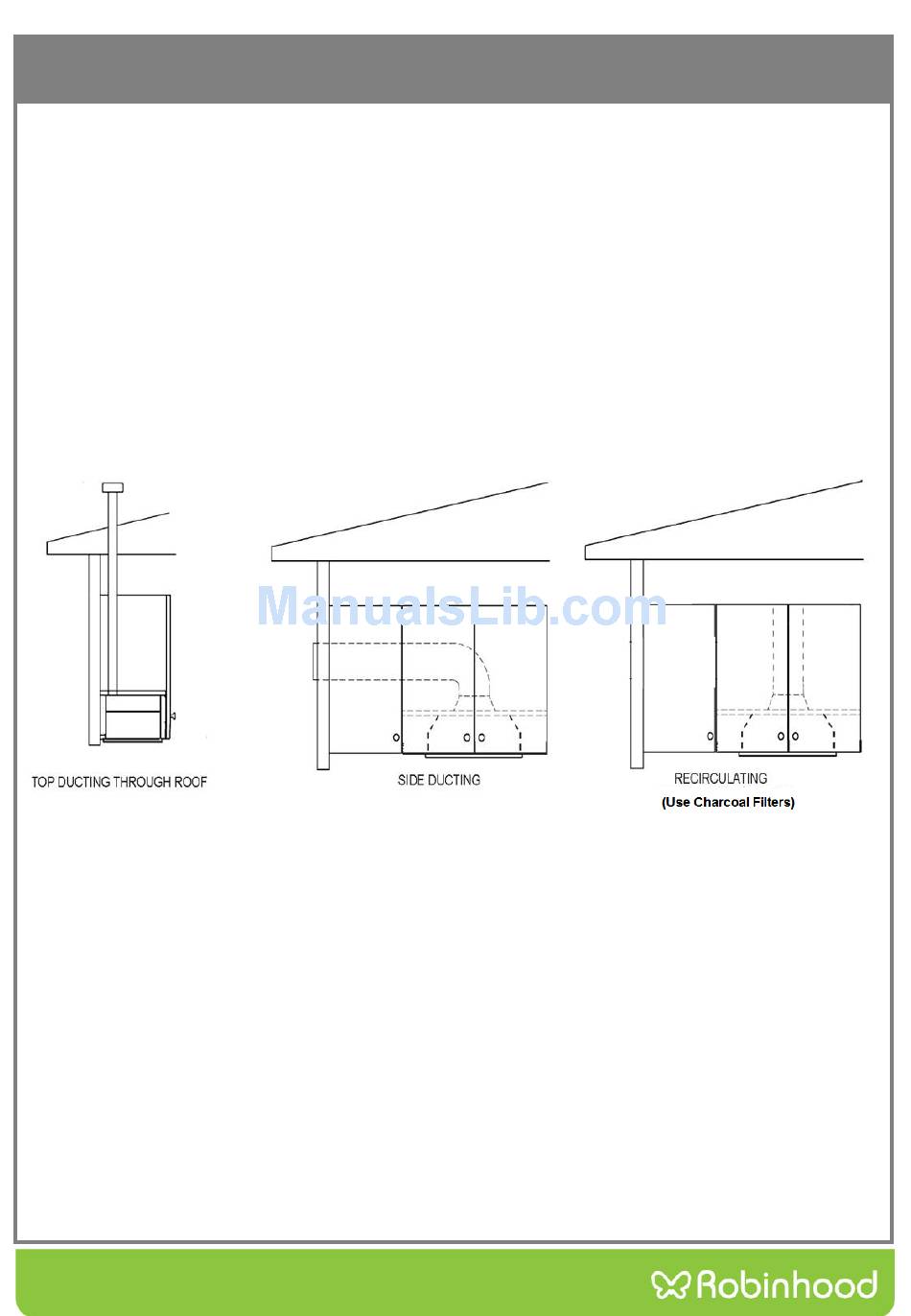

The method of ducting should be carefully considered before installing the rangehood. The
guide below recommends the ducting components to use for all common ducting configurations
- through the top of the home (for the roof and soffit) and through the rear of the home.
150mm round ducting should be used in conjunction with this model rangehood.
Extra lengths and/or bends may be required, depending on the length required and whether
there is any structural material in the way, e.g. rafters.
Please note that this chart is designed as a guide. Please consult Robinhood customer services
if unsure.
For NZ phone (09) 415 6000 or www.robinhood.co.nz. For AUS phone 1800 648 556 or
www.robinhood.com.au.
Typical equipment required:
electric drill and screwdriver
tape measure and spirit level
step ladder
duct tape (if ducting)
jig saw (if ducting)
ladder (if ducting)
