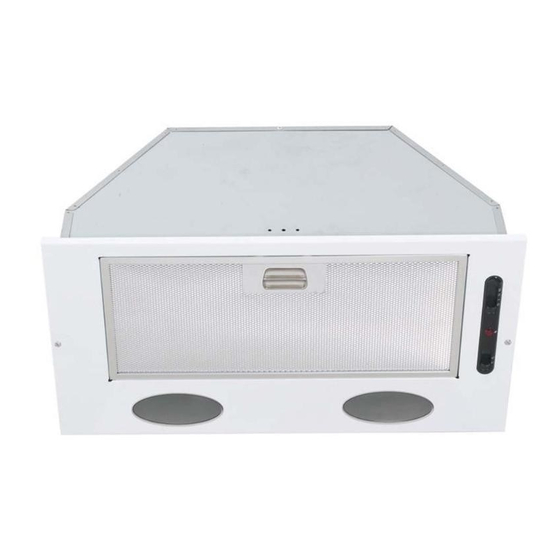

- Page 1 Issue:B Description: ROBINHOOD POWERPACK RANGEHOOD Model Numbers: RPA3CI6SS/WH, RPA3CI9SS/WH Model pictured: RPA3CI6SS/WH All dimensions in mm Model may vary slightly from images pictured...
-
Page 2: Pre-Installation
Overview Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory. Important: Please read the entire instructions before installing the rangehood. -
Page 3: Ducting Options
Some authorities require rangehoods to be vented outside. Ducted models should comply with this requirement in every respect. Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone 0800 760 667 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au. -
Page 4: Installation Position
Pre-Installation - continued Installation position When installing the rangehood, the lower edge of the unit must be a minimum of 600mm (650mm for gas cooker) above the cooking range. The recommended position for the hood is 650mm above the hotplates. Pictured: Minimum height from the hob surface to the underside face of the rangehood is: 600mm for electric hob, 650mm for gas hob Notes: If the instructions for the gas hob specify a greater distance, this has to be taken into account. -
Page 5: Installation
Installation Mounting the Rangehood Fit the ducting adaptor to the rangehood using the short screws supplied. Provide an opening on the underside of the cupboard to suit models/ provide 490mm x 258mm for 600 model or 665mm x 258mm for 900 model. Remove the face plate of the rangehood by undoing the two visible screws located on both side-ends. - Page 6 Operating instructions Controls Light The light can be operated independently by sliding the light switch on/off despite the working status of the fan. Please refer to the icon on switch panel. The fan is operated by sliding the power switch on. It can be run at three different speeds (Speed 1 / Speed 2 / Speed 3) depending on the cooking requirements.
-
Page 7: Important Safety Information
Product approvals and ratings Product approval number V08376 Product rating 290W (1.21A) Max at 240V 50Hz Electric approval AS/NZS 60335.2.31:2004 EMC AS/NZS CISPR14:2001 Performance tested IEC61591 Important safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory •... - Page 8 Uniduct – 12 months from date of original purchase. For commercial use 3 months from date of original purchase. This warranty is limited to the repair or replacement free of charge within the warranty period of any component part which Robinhood at its discretion determines to be faulty.
- Page 9 Uniduct – 12 months from date of original purchase. For commercial use 3 months from date of original purchase. This warranty is limited to the repair or replacement free of charge within the warranty period of any component part which Robinhood at its discretion determines to be faulty.
