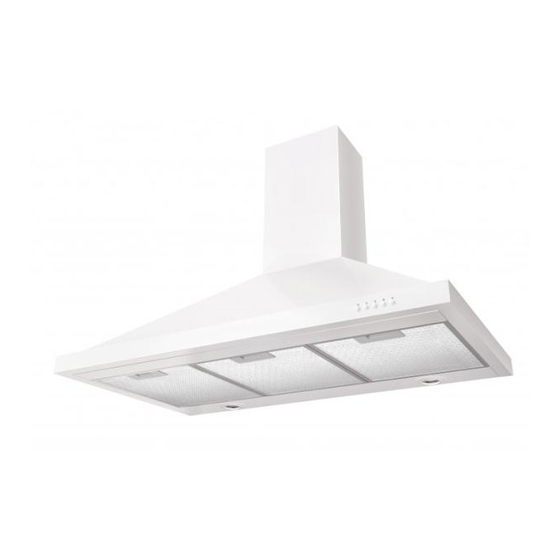

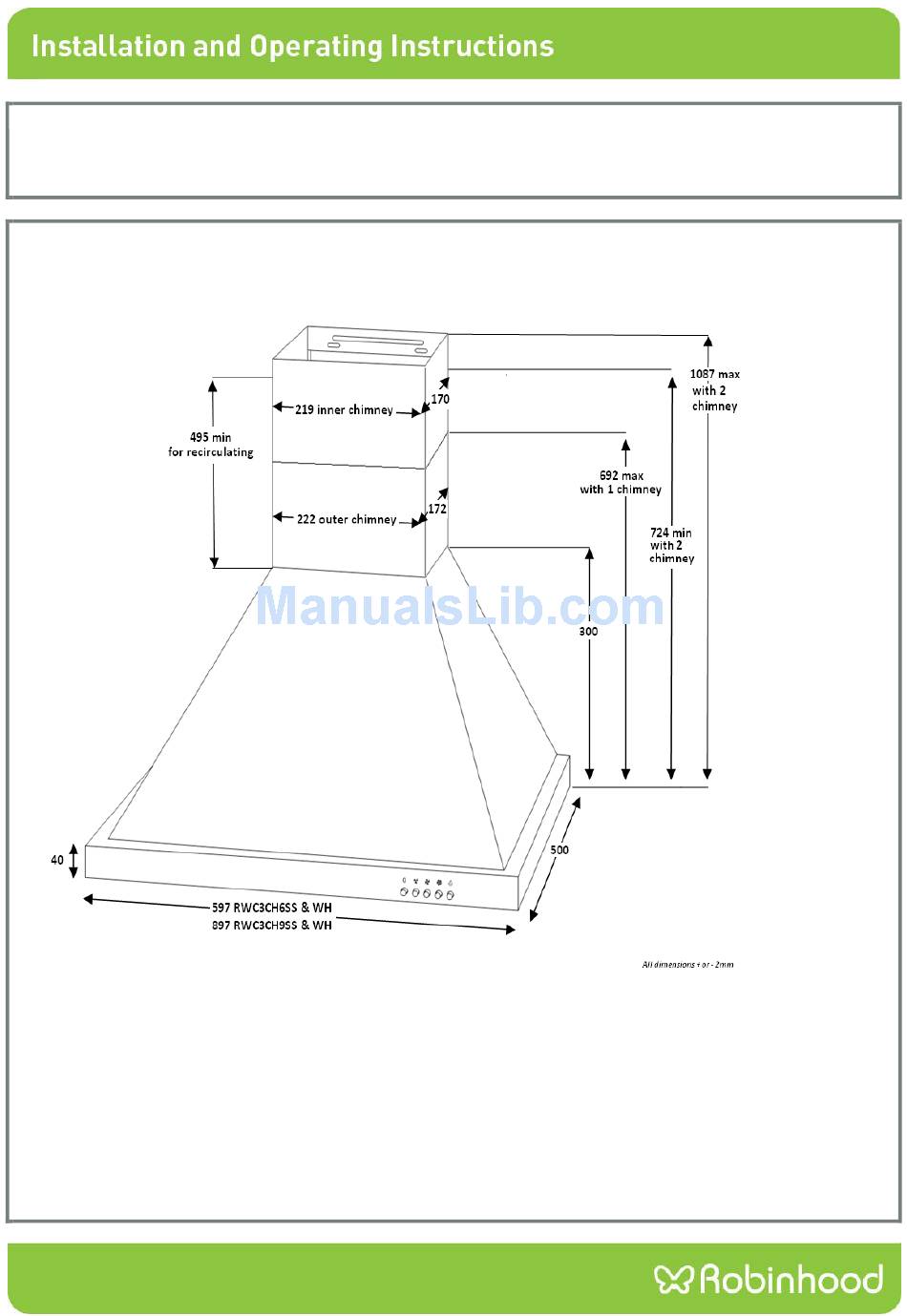

- Page 1 Issue: K Description: ROBINHOOD WALL CANOPY Model Numbers: RWC3CH6SS, RWC3CH9SS, RWC3CH6WH, RWC3CH9WH Model pictured: RWC3CH6SS/WH All dimensions in mm Model may vary slightly from images pictured...
-
Page 2: Pre-Installation
Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory. Important: Please read the entire instructions before installing the rangehood. Always switch power off prior to installation. -
Page 3: Ducting Options
Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone 0800 760 667 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au. -
Page 4: Installation Position
Pre-Installation - continued Installation position Minimum height from the hob surface to the underside face of the rangehood 600mm electric hob 650mm gas hob Notes: If the instructions for the gas hob specify a greater distance, this has to be taken into account. Any installation above 750mm will compromise performance. -
Page 5: Installation
Installation Mounting to a stud is recommended. However, if fitted to other wall linings (plasterboard, concrete etc) suitable fixings will be required. Before drilling any holes check that the wall and ceiling are clear of any electrical cables, pipes etc. Rear wall Wall stud Fixing screw... -
Page 6: Recirculation Mode
Installation - continued Connect and secure the ducting (use duct tape if required). Remove the protective plastic covering from all parts including the filters. Fit the canopy hood on the fixing bracket. Mark and drill the two holes required for the safety screws. Secure the canopy in place with the safety screws provided. -
Page 7: Filter Maintenance
Operating instructions Controls Power On/Off Speed 1 Speed 2 Speed 3 Lights On/Off Light The light can be operated independently from the fan and is controlled in accordance with the graphics printed above. The fan is operated by turning the power switch on. It can be run at three different speeds (Speed 1 / Speed 2 / Speed 3) depending on the cooking requirements and is controlled in accordance with the graphics printed above. -
Page 8: Important Safety Information
Product approvals and ratings VO71158, A/11730EA, Product approval number SAA103676EA Product rating 230W (1.15A) Max at 240V 50Hz Electric approval AS/NZS 60335.2.31:2004 EMC AS/NZS CISPR14:2001 Performance tested IEC61591 Important safety information All electrical work must be done by a registered electrician in accordance with local and national electrical codes as applicable. - Page 9 The product was not used, cleaned or cared for in accordance with our instructions. The product was used outdoors. All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.
- Page 10 The product was used outdoors. 2. All Robinhood rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
