Summary of Contents for ROBINHOOD RWV3CL6G

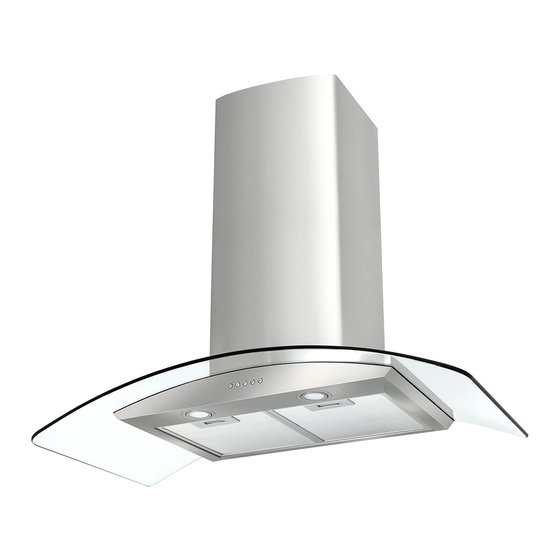

- Page 1 Issue 4 Description: ROBINHOOD WALL CANOPY CURVED GLASS 90CM VETRO Model Numbers: RWV3CL6G, RWV3CL9G Product may vary slightly from the picture (RWV3CL9G pictured)
-
Page 2: Pre-Installation
Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory. Important: Please read the entire instructions before installing the rangehood, always switch power off prior to installation. - Page 3 Pre-installation •The canopy hood is designed for 2400mm-2700mm** ceilings. •**For 2700mm ceiling height, the hood must be installed at 750mm above standard 900mm height bench top •The chimney is telescopic and is designed for hood installations between 650 to 750mm above the cooking surface.
-
Page 4: Contents Of Packaging
Extra lengths and/or bends may be required, depending on the length required and whether there is any structural material in the way, e.g. rafters. Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone 0800 760 667 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au. -
Page 5: Installation
Installation Control Panel Timer switch Canopy hood will remain on a low, mid or high speed for 15 minutes to clear away all residual cooking odours before switching off automatically Wall / ceiling preparation Recirculation For recirculation, do not cut 170mm hole and purchase a charcoal filter. -
Page 6: Installation & Hardware
Plug in the new assembly. Push the light assembly back into place. Optional accessories: Charcoal filter 2517 (Twin Pack for RWV3CL9G) or 2619 (Single for RWV3CL6G) Chimney Extension 2200 – 10ft RWV3CL6G 2201 – 12ft RWV3CL6G 2202 – 10ft RWV3CL9G 2203 –... -
Page 7: Important Safety Information
Product approvals and ratings Product rating 223W, 220-240 Volt,50 hertz Electrical approval AS/NZS 60335.2.31:2004 + A1 + A2 + A3 + EMC AS/NZS CISPR14:2001 Performance tested IEC61591 Important safety information The canopy hood is not intended for use by persons (including children) with reduced physical, sensory or metal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 8 The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
- Page 9 The following conditions apply in respect of the warranty given in this certificate: Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use.
