- Page 1 RG - SERIES GRANGE RANGE HOOD MODEL RG6WH, RG6BL, RG6SS, RG6BR RG9WH, RG9BL, RG9SS, RG9BR SERVICE MANUAL APPROVED Page 1 of 9 ISSUE: F ECN 07 033...

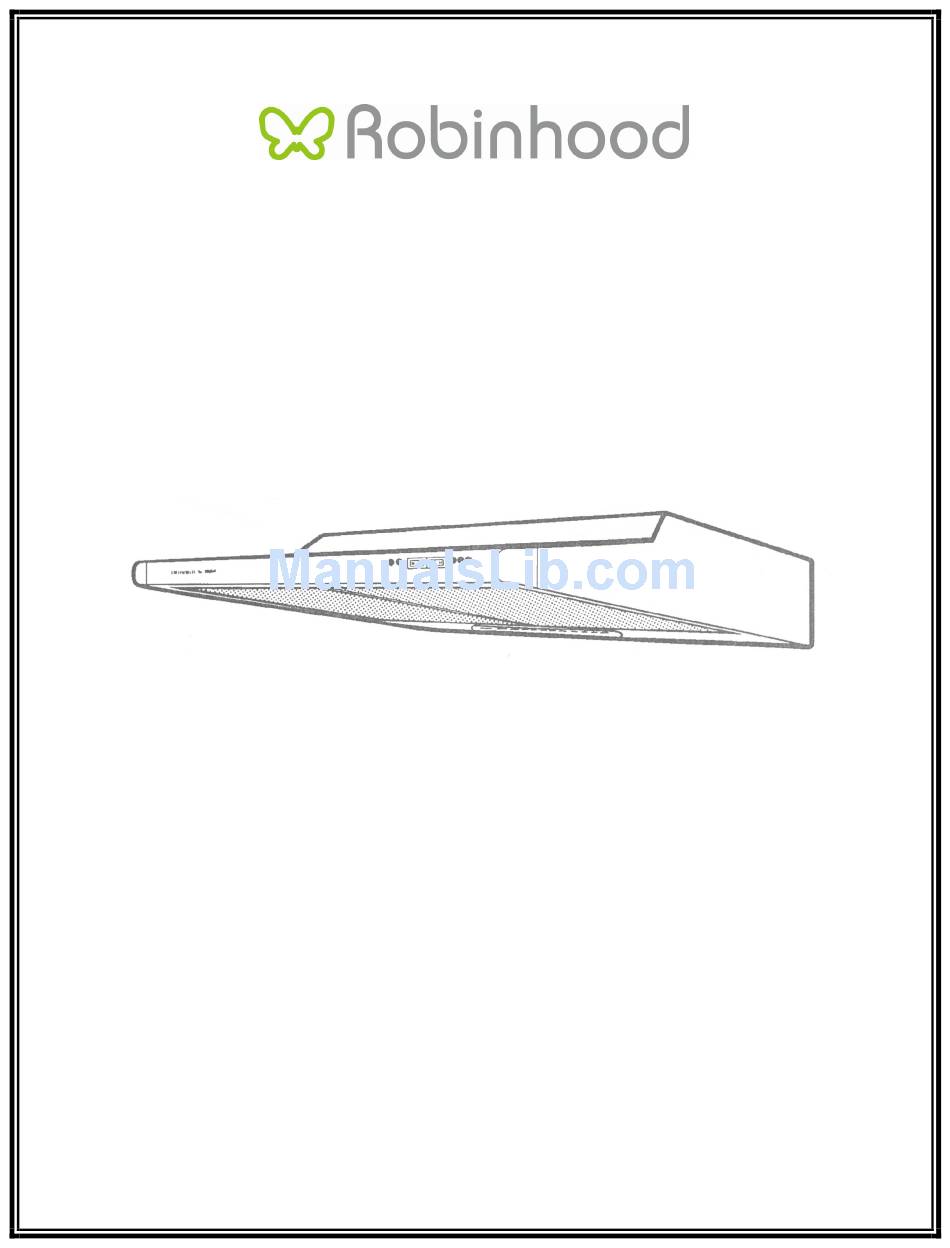

- Page 2 RG - SERIES APPROVED Page 2 of 9 ISSUE: F ECN 07 033...
- Page 3 RG - SERIES ROBINHOOD GRANGE RG6WH, RG6BL, RG6SS, RG6BR, GRANGE 600 – 2 SPEED RG9WH, RG9BL, RG9SS, RG9BR, GRANGE 900 – 2 SPEED ITEM DESCRIPTION PART No. Power Cord 103424 Disfuser 101112 2 Spd. Motor & Sleeve Nuts 103673 Lamp 40W 101191 ‘E’...
- Page 4 RG - SERIES ROBINHOOD GRANGE RG6WH, RG6BL, RG6SS, RG6BR, GRANGE 600 – 2 SPEED RG9WH, RG9BL, RG9SS, RG9BR, GRANGE 900 – 2 SPEED ITEM DESCRIPTION P/N 600 P/N 900 Grange - White Motor Housing 101052WH 101053WH Rear Cover 101062WH 101063WH Corners L&R...
- Page 5 RG - SERIES SECTION 1. MOTOR REMOVAL AND REPLACEMENT REMOVE DIFFUSER AND LIGHT BULB REMOVE FINGERGUARD AND FANBLADE REMOVE REAR COVER REMOVE FILTER SPRINGS AND LOCATING SCREWS ON MOTOR HOUSING LIFT MOTOR HOUSING FRONT EDGE, DRAW POWER CABLE THROUGH BACK DISCONNECT SWITCHES REMOVE MOTOR HOUSE FROM BODY AND TURN UPSIDE DOWN ON TOP OF BODY...
- Page 6 RG - SERIES SECTION 2. SWITCH REPLACEMENT REMOVE MOTOR HOUSING AS PER THE INSTRUCTIONS IN SECTION 1 SWITCHES ARE REMOVED FROM THE INSIDE OF THE RANGEHOOD BY DEPRESSING THE HOLDING TAGS MOULDED INTO EACH SIDE OF THE SWITCH REPLACE WITH NEW SWITCH, CHECK WIRING AS PER WIRING DIAGRAM, AND THAT SWITCHES ARE IN THE CORRECT POSITION SECTION 3.
- Page 7 RG - SERIES APPROVED Page 7 of 9 ISSUE: F ECN 07 033...
- Page 8 RG - SERIES WIRING DIAGRAM FOR 100683 AND 101909 LIGHT SWITCH 100684 AND 101910 FAN SWITCH APPROVED Page 8 of 9 ISSUE: F ECN 07 033...
- Page 9 RG - SERIES WIRING DIAGRAM FOR 103892 AND 103894 LIGHT SWITCH 103893 AND 103895 FAN SWITCH APPROVED Page 9 of 9 ISSUE: F ECN 07 033...
