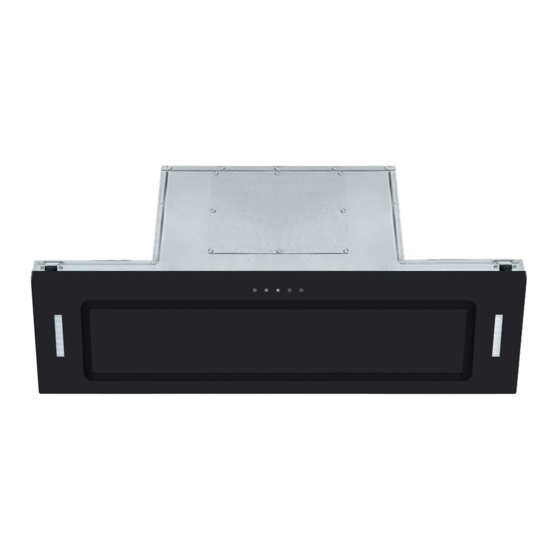

- Page 1 Installation and Operating Instructions Model Numbers: RPD3CL6BK, RPD3CL6WH, RPD3CL7BK, RPD3CL7WH, RPD3CL9BK, RPD3CL9WH Description: Under-mount Rangehood Pictured: RPD3CL7BK...
-
Page 2: Table Of Contents
It is important that you retain these instructions and your proof of purchase along with any other important documents about this product for future reference. Due to continual product development, Robinhood reserves the right to alter specifications or appearances without notice. Important Safety Instructions..........................1 Appliance Details .............................. -
Page 3: Important Safety Instructions
Important Safety Instructions IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. 1. In certain circumstances electrical appliances may be a safety hazard. 2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: Appliance Details
Appliance Details Voltage & Frequency: 220‐240V 50Hz Lamp Max: All Models: 2 x 1.5W LED Rated Input Power: All Models: 268W General Information Before installing and operating the rangehood, carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed to exhaust cooking fumes externally. -
Page 5: Pre-Installation
Extra lengths and/or bends may be required, depending on the length required and whether there is any structural material in the run e.g. rafters. Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone (09) 415 6000 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au. -
Page 6: Installation
The under‐mount rangehood must be installed at the correct distance above the cooktop (650mm minimum ‐ 750mm recommended). Cut a hole in the cabinet to fit the rangehood (RPD3CL6WH, RPD3CL6BK – 500x275mm, RPD3CL7WH, RPD3CL7BK – 730x275mm RPD3CL9WH, RPD3CL9BK – 880x275mm) centred above the cooktop. The hole edge should be at least 35mm from any cupboard edge. -
Page 7: Operating Instructions
Operating Instructions Controls Medium Low Speed High Speed Light On / Off Timer Speed Power Once the appliance is connected to the power source, the backlight of the control panel will turn on for 5 seconds, and then turn off, leaving the appliance in stand‐by mode. Pressing a control button will light up an indicator light while the function is active, and then turn off when the function is deactivated. -
Page 8: Cleaning And Maintenance
The LED lamps cannot be replaced by the consumer. If any faults occur, please call your nearest Service Department. Replacement parts Charcoal filter RPD6CF152 (RPD3CL6WH, RPD3CL6BK) RPD7CF152 (RPD3CL7WH, RPD3CL7BK) RPD9CF152 (RPD3CL9WH, RPD3CL9BK) For any other problems please call help line on NZ 0800 760 667 or AUS 1800 648 556... -
Page 9: Troubleshooting
Troubleshooting Fault Cause Solution The LED damaged Lights do not work, but LED wiring connection poor Contact Service Department fan works LED switch damage Motor bearings damage Lights work, but fan Motor burn out Contact Service Department does not work Motor control switch damage Plug contact outlet bad Fix or change... -
Page 10: Warranty Certificate (New Zealand)
The following conditions apply in respect of the warranty given in this certificate: Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: •... -
Page 11: Warranty Certificate (Australia)
The product was used outdoors. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
