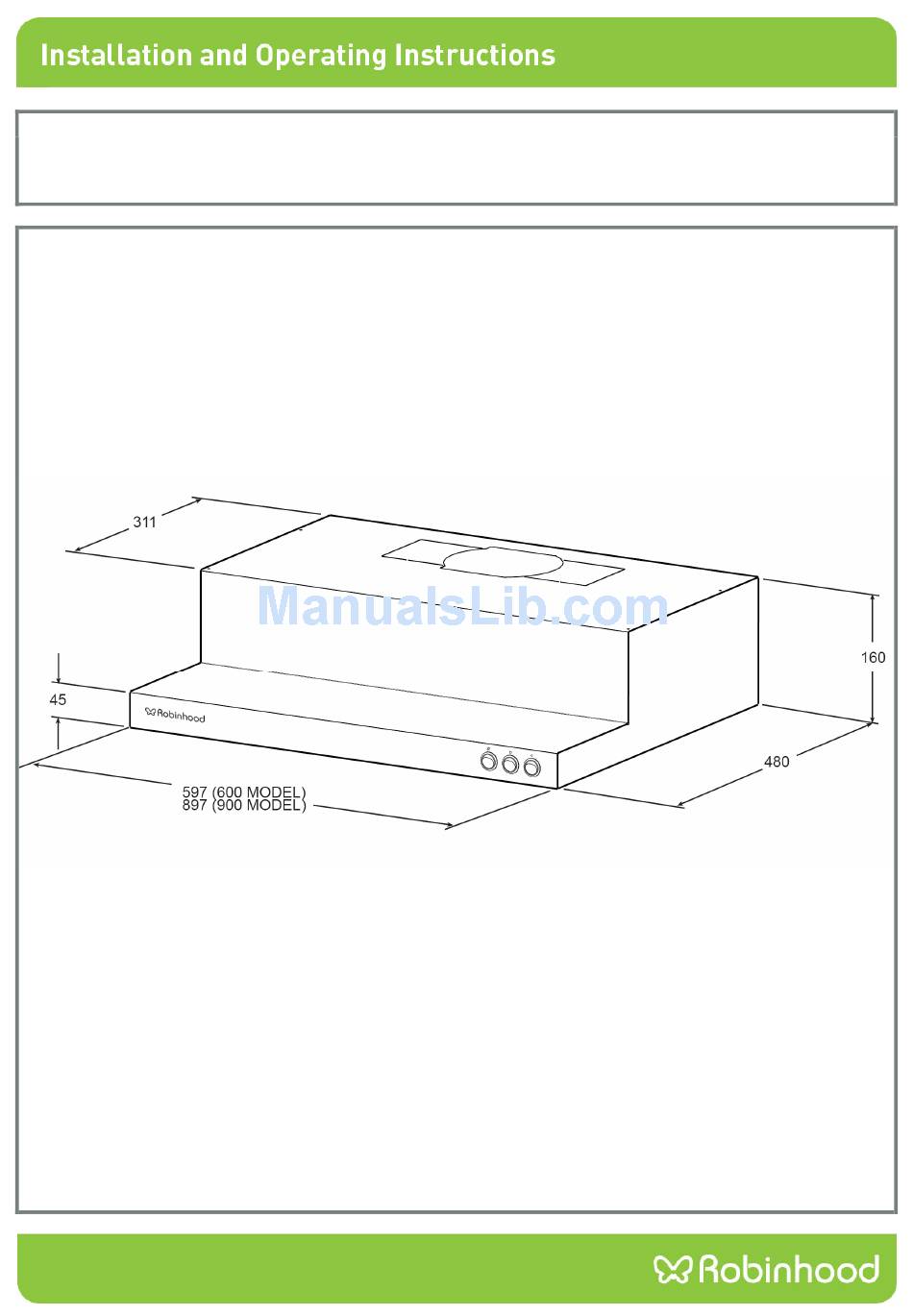

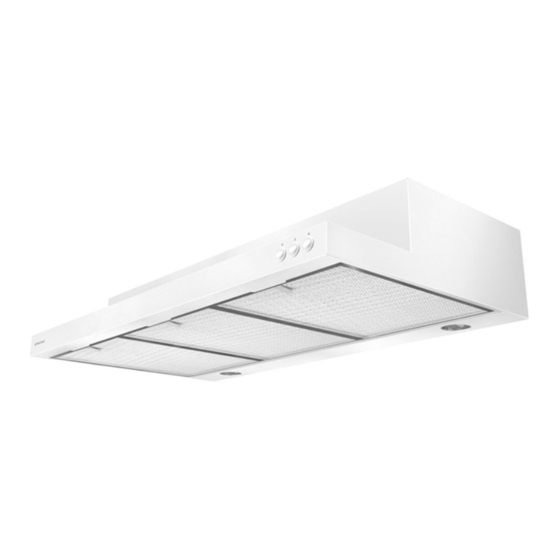

- Page 1 Issue: C Description: ROBINHOOD COMPACT CANOPY Model Numbers: RCB2AH6WH, RCB2AH6SS, RCB2AH9WH, RCB2AH9SS Model pictured: RCB2AH6WH/SS All dimensions in mm Model may vary slightly from images pictured...
-
Page 2: Pre-Installation
Front Side Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory. Important: Please read the entire instructions before installing the rangehood. -
Page 3: Ducting Options
Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone 0800 760 667 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au. - Page 4 Pre-Installation - continued Installation position - Mounting to the wall Minimum height from the hob surface to the underside face of the rangehood (wall or cabinet mounting) 600mm electric hob 650mm gas hob Note: If the instructions for the gas hob specify a greater distance, this has to be taken into account. Height from the underside of the rangehood to the top fixing screws 134mm Horizontal position of the top fixing screws...
-
Page 5: Installation
Installation Notes: Mounting screws are not supplied. Use the appropriate mounting screws for each mounting option. Wall mounting Mounting to a stud is recommended. However, if fitted to other wall linings (plasterboard, concrete etc) a wall plug is required. Fix two top screws in the positions indicated (pg 4 Installation position - mounting to wall). Rear wall Wall stud Fixing screw... -
Page 6: Recirculation Mode
Installation - continued Fix two rear screws on the underside of the cabinetry in the positions indicated (pg 4 Installation position - Mounting to underside of cabinetry). Lift and slide rangehood into place so that the screws are in the correct position relative to the key-ways. Ensure upwards pressure is applied to the front of the rangehood to prevent the weight of the rangehood being taken solely by the rear screws, and fix the two front screws in place Note: Side of rangehood removed for greater visibility... -
Page 7: Replacement Parts
Operating instructions Lights Power Controls On/Off On/Off Speed 1/Speed 2 Light The light can be operated independently from the fan and is controlled in accordance with the graphics printed above. The fan is operated by turning the power switch on. It can be run at two different speeds (Speed 1 / Speed 2) depending on the cooking requirements and is controlled in accordance with the graphics printed above. -
Page 8: Important Safety Information
Product approvals and ratings Product approval number VO7857 Product rating 212W (0.88A) Max at 240V 50Hz Electric approval AS/NZS 60335.2.31:2004 EMC AS/NZS CISPR14:2001 Performance tested IEC61591 Important safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory •... - Page 9 (but not limited to) loss of profit, loss of revenue, loss of contract, lost of goodwill or increased cost of workings, even if due to the negligence of Robinhood or any of its approved suppliers, employees or agents.
- Page 10 (but not limited to) loss of profit, loss of revenue, loss of contract, lost of goodwill or increased cost of workings, even if due to the negligence of Robinhood or any of its approved suppliers, employees or agents.
