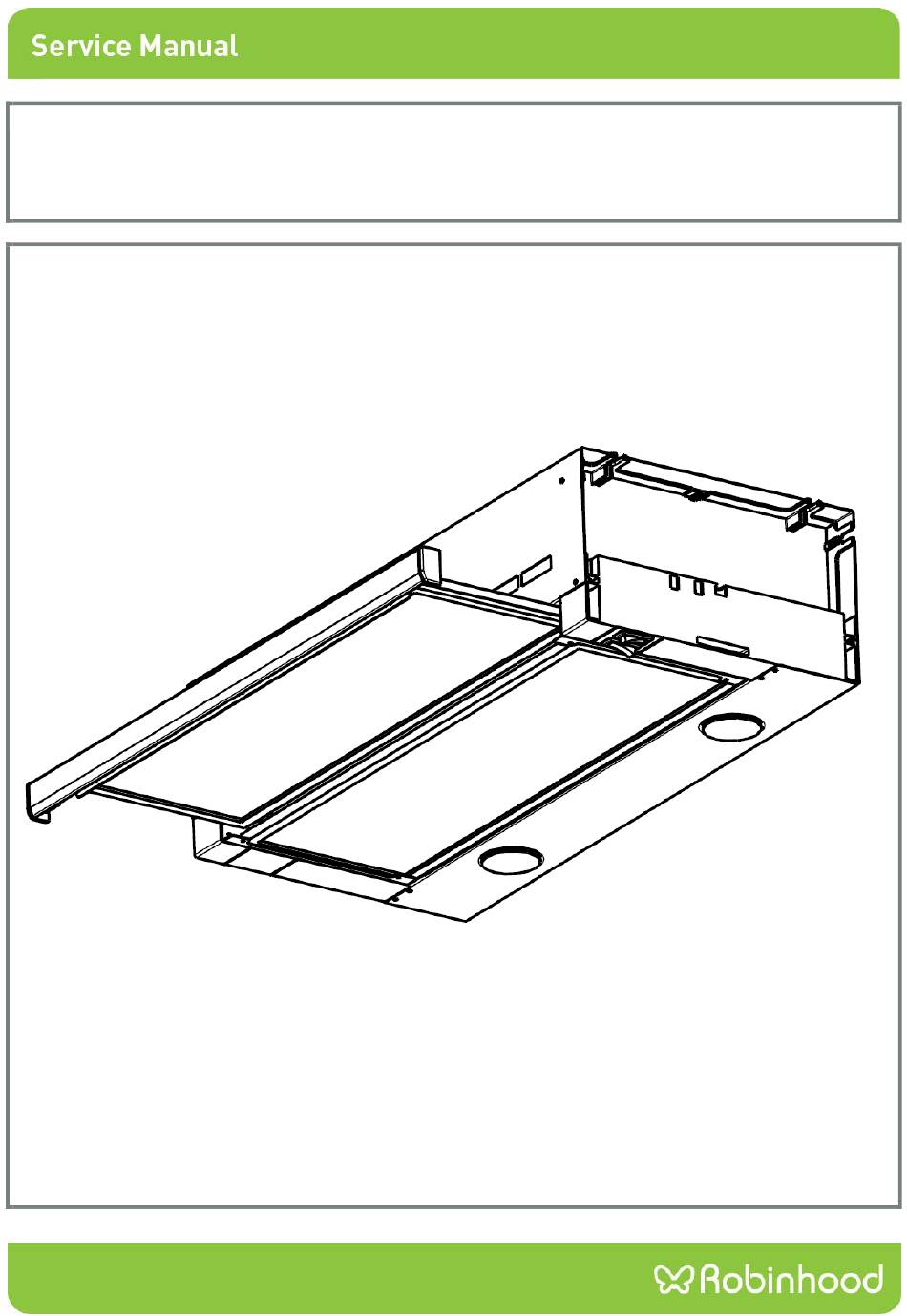

- Page 1 Issue: 3 ECN 09 061 Description: ROBINHOOD SLIDEOUT Model Number: RI6WH, RI6SS, RI9WH, RI9SS RI61WH, RI61SS Model pictured: RI6WH/SS RI61WH/SS Page 1 of 6...
- Page 2 Exploded view Page 2 of 6...
- Page 3 Part number RI6WH RI6SS Item Description RI61WH RI61SS Side fixing screw and dowel kit (4 pieces) 111053 Power cord 103821 Halogen lamp holder 111021 (If manufactured post 21/4/08) Halogen lamp holder (If manufactured between 24-11-08 and 111075 18-12-08) Incandescent lamp holder...
- Page 4 Part number Item Description RI9WH RI9SS Side fixing screw and dowel kit (4 pieces) 111053 Power cord 103821 Halogen lamp holder 111021 (If manufactured post 21/4/08) Halogen lamp holder (If manufactured between 24-11-08 and 111075 18-12-08) Incandescent lamp holder 101104 (If manufactured pre 21/4/08) Halogen lamp 111020...
- Page 5 Wiring diagram - For models manufactured before the 21 April 2008 Page 5 of 6...
- Page 6 New Zealand Australia Parbury Building Products (NZ) Parbury Pty Limited Limited (ABN 83 004 568 138) Telephone: 0800 760 667 Telephone: 1800 648 556 Facsimile: 0800 276 246 Facsimile: 1800 628 577 Email: enquiries@robinhood.co.nz Email: enquiries@robinhood Page 6 of 6 www.robinhood.co.nz...
