Summary of Contents for ROBINHOOD RIJ3CL9BK

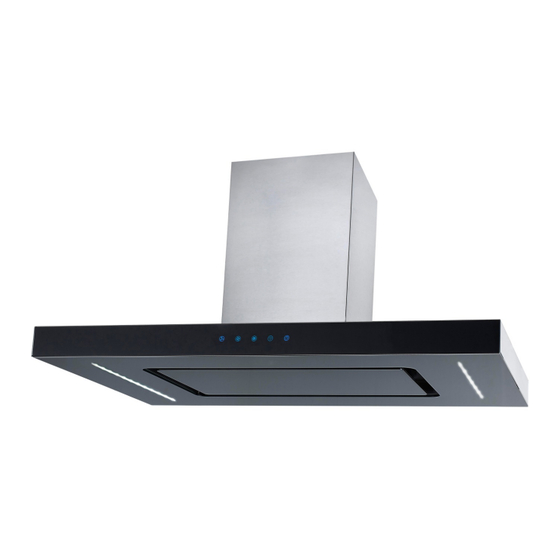

- Page 1 Issue: 1 Description: ROBINHOOD ISLAND RANGEHOOD 90CM BLACK GLASS RIJ3CL9BK Model Numbers: Model pictured RIJ3CL9BK Model may vary slightly from images pictured...
-
Page 2: Product Dimensions
Product Dimensions Model pictured RIJ3CL9BK... -
Page 3: Safety Warnings
Safety Warnings Important: Please read the entire instructions before installing the rangehood. Check appliance for damage or missing parts (if damaged, do not install). This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 Product Rating Thank you for purchasing aquality Robinhood rangehood. Robinhood has a high standard of quality control and every range hood is tested and approved before it leaves the factory. Product rating 220 – 240V~ 50Hz 273W Contents of packaging:...
-
Page 5: Pre-Installation
- through the top of the home (for the roof and eaves) and through the wall of the home. Robinhood offers a full range of semi rigid ducting solutions under Uniduct brand, for more information please visit www.robinhood.co.nz For this island type rangehood, top ducting through roof or soffit is suitable. -
Page 6: Installation
Installation Before drilling any holes check that the area behind the surface to be drilled is clear of any electrical cables, pipes etc. The cabinet must take a weight bearing of at least 40kgs weight. Whenever possible protect the Rangehood with a fabric sheet or similar. WARNING: Failure to install the screws or fixing devices in accordance with these instructions may result in an electrical hazard. - Page 7 Installation -Continued According to the hanging board, drill 12 holes in the ceiling, see pic 2, 12pcs of ST6*40mm big flat screws • will be used to fix the hanging board on the ceiling, and then 8pcs of M4*10 screws and M4 nut with gasket •...
- Page 8 Operating instructions Five-key touch control There are five touch buttons: (Low), (Mid), (High), (Light), (Delay) 1. Press button once, lights will be turn on. Press button again to turn off the lights. 2. Power on: After you have connected the cooker hood to the main supply, you can start using the cooker hood by selecting the motor fan speed that you want, (Low), (Medium),...
-
Page 9: Aluminium Filters
Cleaning and maintenance General Maintenance Switch off the rangehood before cleaning or maintenance. To prevent surface damage never use abrasive or oil based liquid cleaners. To clean the surfaces of the appliance, use mild detergent and warm water. In areas of high humidity and coastal environments cleaning should be carried out frequently. -
Page 10: Troubleshooting
Trouble Shooting Fault Possible Cause Solution The LED damaged Contact Service Lights do not work, but LED wiring connection poor Department fan works LED switch damage Motor bearings damage Contact Service Motor burn out Lights work, but fan does Department not work Motor control switch damage Plug contact outlet bad... - Page 11 The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use.
- Page 12 The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
