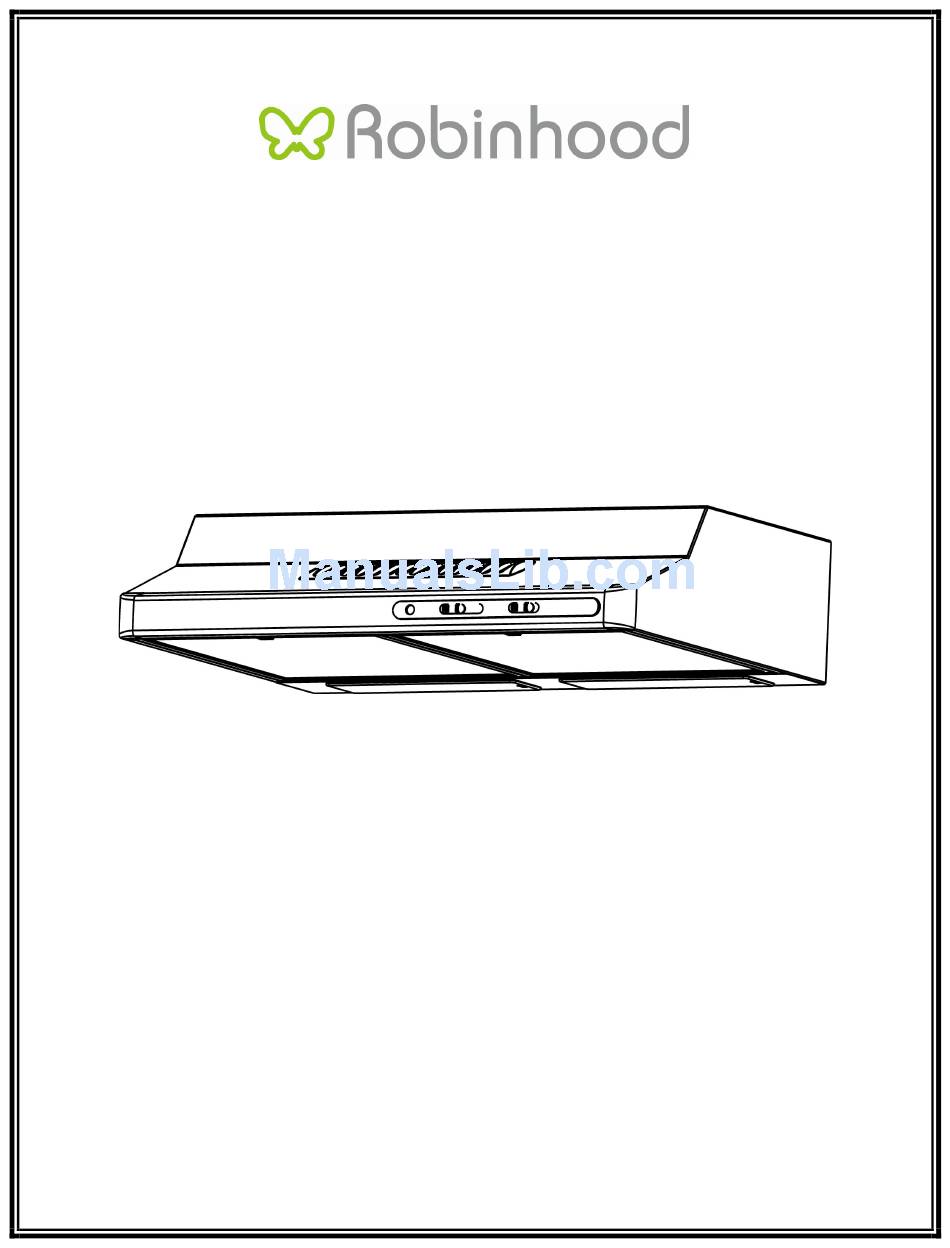

- Page 1 RGT - SERIES GRANGE II RANGE HOOD MODEL RGT6WH, RGT6BL, RGT6SS RGT9WH, RGT9BL, RGT9SS SERVICE MANUAL APPROVED Page 1 of 6 ISSUE: C ECN 07 033...
- Page 2 RGT - SERIES RGT6WH, RGT6BL, RGT6SS RGT9WH, RGT9BL, RGT9SS APPROVED Page 2 of 6 ISSUE: C ECN 07 033...
- Page 3 RGT - SERIES ROBINHOOD GRANGE II RGT6WH, RGT6BL, RGT6SS GRANGE II 600 – 3 SPEED RGT9WH, RGT9BL, RGT9SS GRANGE II 900 – 3 SPEED ITEM DESCRIPTION PART No. WHITE BLACK S/STEEL Body Wrapper 101150WH 101150BL 101150BL 2 & 9 Corner Plastic Family...
- Page 4 RGT - SERIES SECTION 1. MOTOR REMOVAL AND REPLACEMENT REMOVE THE UNIT FROM ITS MOUNTING. REMOVE THE FILTERS. REMOVE DIFFUSER AND LIGHT BULB. REMOVE REAR OR TOP BLANKING DISK. REMOVE THE SWITCH BRACKET. REMOVE SWITCH ASSEMBLY FROM THE SWITCH BRACKET. REMOVE THE LID OF THE SWITCH ASSEMBLY DISCONNECT THE WIRES FROM THE BACK OF THE SWITCH.
- Page 5 RGT - SERIES SECTION 3. POWER CORD REPLACEMENT REMOVE MOTOR HOUSING AS PER THE INSTRUCTIONS IN SECTION 1 REMOVE THE TOP COVER (3 SCREWS). REMOVE THE CABLES FROM THE CONNECTOR BLOCK . PULL OUT POWER CORD AND RECONNECT NEW CORD. CARRY OUT EARTH TEST BEFORE CONNECTING TO POWER REPLACE IN REVERSE ORDER AS ABOVE TEST TO ELECTRICAL SAFETY STANDARDS...
- Page 6 RGT - SERIES WIRING DIAGRAM APPROVED Page 6 of 6 ISSUE: C ECN 07 033...
