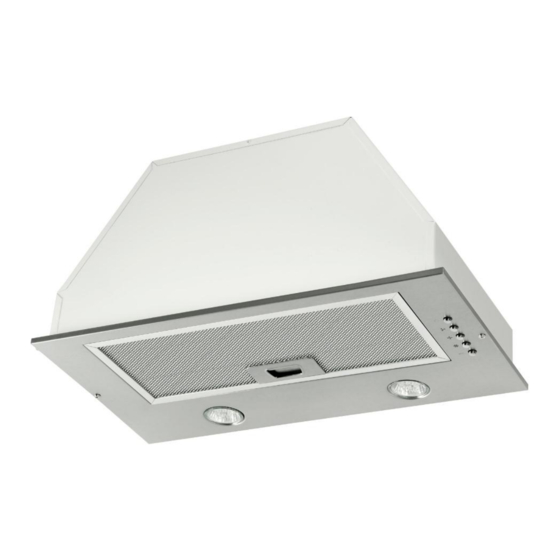

- Page 1 Issue 3 Description: ROBINHOOD POWERPACK RANGEHOOD Model Numbers: RPB3CL6SS/WH, RPB3CL9SS/WH Product may vary slightly from the picture...
-
Page 2: Pre-Installation
Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory Important: Please read the entire instructions before installing the rangehood, always switch power off prior to installation. - Page 3 Pre-installation •The Rangehood is designed for hood installations between 650 to 750mm above the cooking surface* •Any installation above 750mm will compromise the extraction performance. •The air outlet from the motor requires 150mm round ducting which requires 170mm diameter hole in the ceiling if ducting through the ceiling.
-
Page 4: Contents Of Packaging
Extra lengths and/or bends may be required, depending on the length required and whether there is any structural material in the way, e.g. rafters. Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. -
Page 5: Installation
Installation Before drilling any holes check that the area behind the surface to be drilled is clear of any electrical cables, pipes etc. The ceiling must take a weight bearing of at least 40kgs weight. Whenever possible protect the Rangehood with a fabric sheet or similar. When installing the rangehood, the lower edge of the unit must be a minimum of 600mm (650mm for gas cooker) above the cooking range. -
Page 6: Recirculation Mode
Installation •Mounting the Rangehood •Fit the ducting adaptor to the rangehood using the short screws supplied. •Provide an opening on the underside of the cupboard to suit models/ provide 490mm x 258mm for 600 model or 665mm x 258mm for 900 model. •Remove both LED Bulbs from their sockets. -
Page 7: Control Panel
Control Panel 1. Plug the Rangehood to power. 2. Push the low speed button and the motor runs at low speed. Push the power button and the motor will stop. 3. Push the mid speed button, and the motor runs at mid speed. -
Page 8: Important Safety Information
Product approvals and ratings Product rating 220-240V, 50Hz, Total Power 274W, motor270W, Lamp 2 x 2W, Class I Electrical approval AS/NZS 60335.2.31:2004 + A1 + A2 + A3 + EMC AS/NZS CISPR14.1:2010 CIRPR 15 Performance tested IEC61591 Important safety information The canopy hood is not intended for use by persons (including children) with reduced physical, sensory or metal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person... - Page 9 The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use.
- Page 10 The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
