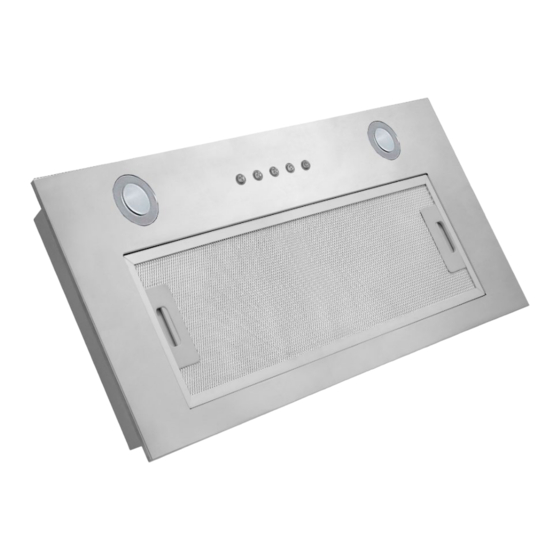

- Page 1 Installation and Operating Instructions Issue 1 Description : Robinhood Power Pack with Stainless Steel/Matte Black Face Plates Model Number : RPC3CL52SS/MB (52cm); RPC3CL70SS/MB (70cm) RPC3CL52SS/MB RPC3CL70SS/MB *Actual unit may vary from above model picture...
-
Page 2: Table Of Contents
Contents Congratulations! Thank you for choosing one of our appliances. Before you use the appliance, we strongly recommend that you read through the whole user manual which provides important safety instructions and description of the product and the proper use of its functions. To avoid the ever‐present risks involved with using an electrical appliance it is vital that the oven is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 3: Important Safety Instructions
Important Safety Instructions IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. In certain circumstances electrical appliances may be a safety hazard. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: Appliance Details
Appliance Details RPC3CL52SS/MB RPC3CL70SS/MB Voltage & Frequency: 220-240V 50Hz Lamp Max: 2 x 1.5W LED Rated Input Power: General Information Before installing and operating the rangehood, carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. -
Page 5: Installation Instructions
Installation Instructions MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations. - Page 6 Cut a hole in the cabinet to fit the rangehood centered above the cooktop. Cut out dimensions for RPC3CL52SS/MB and RPC3CL70SS/M are shown as below: Note: Make sure the hole edge should be at least 35mm from any cupboard edge.
- Page 7 Installation Instructions Install the rangehood by following instructions as below: Remove the aluminum filter and remove the two front panel screws. • • Use a screwdriver to secure the screws to the cabinet. • Replace the front panel with the two screws and replace the filter. Note: The expansion pipe or ducting kit are not included in this product.
-
Page 8: Operating Instructions
Operating Instructions Controls There are five buttons: (Low), (Mid), (High), (Lamp), (Power). 1. After connecting to power, indicator light will on, all the output close and the hood will enter standby mode. The indicator light will be off automatically after reminding if no operation. 2. -
Page 9: Troubleshooting
Troubleshooting Fault Possible Cause Solution Fan switch turned off Select a fan switch position. Light on, but motor Fan switch failed Contact service center. does not work Motor failed Contact service center. House fuses blown Reset/Replace fuses. Light does not work; Refit mains power cable to power Mains power cable is loose or motor does not work... -
Page 10: Cleaning And Maintenance
Cleaning and Maintenance Caution: • Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed. • External surfaces are susceptible to scratches and abrasions, so follow the cleaning instructions to ensure the best possible result is achieved without damage. - Page 11 Cleaning and Maintenance BULB REPLACEMENT Important: • The bulb must be replaced by the manufacturer, its service agent, or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When • handling bulb, make sure it has completely cooled down before any direct contact with hands. When handling bulbs hold with a cloth or gloves to ensure perspiration does not meet the bulb as this •...
- Page 12 The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use.
-
Page 13: Warranty Certificate
The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
