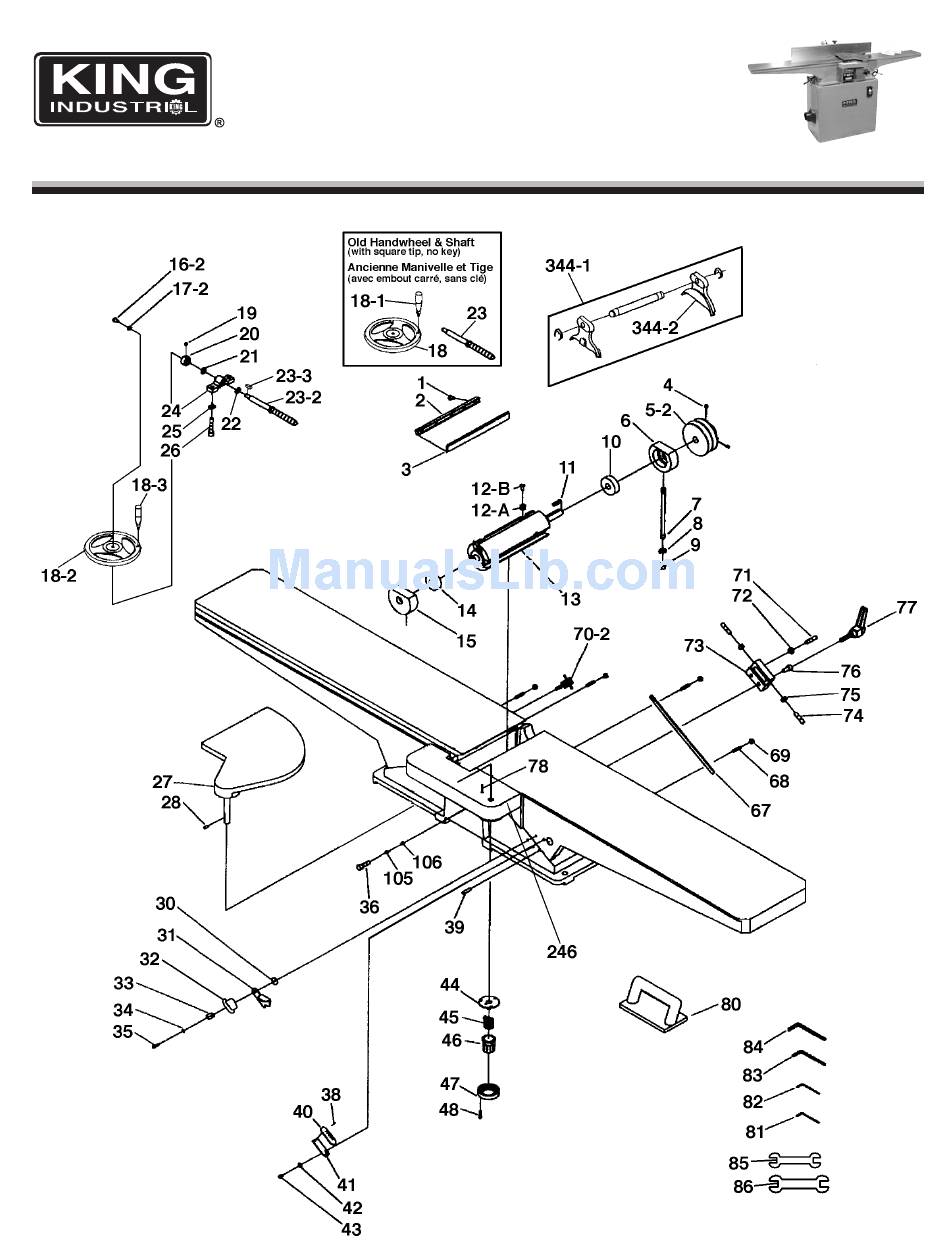

- Page 1 Service Manual / Manuel de Service 8” Jointer Dégauchisseuse 8” Revised/Revisé 08/2008 Head Diagram / Diagramme de la Tête KC-203C...
- Page 2 Service Manual / Manuel de Service 8” Jointer Dégauchisseuse 8” Revised/Revisé 08/2008 Motor & Cabinet Diagram / KC-203C Diagramme du Moteur et du Cabinet...
- Page 3 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4502030010 KNIFE BAR SCREW 4502030020 KNIFE LOCKING BAR KKC-8 KNIFE (SET OF 3) 4502030040 SET SCREW 4502030052 CUTTERHEAD PULLEY (2 BELTS) 4502030060 BEARING HOUSING 4502030070 LOCKING STUD 4502030080 SPRING WASHER...
- Page 4 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4502030440 RETAINING WASHER 4502030450 SPRING 4502030460 CUP FOR SPRING 4502030470 RETAINER FOR CUP 4502030480 PAN HD SCREW 4502030670 4502030680 SPECIAL SET SCREW 4502030690 HEX. NUT 70-2 4502030702 T-SHAPED LOCK SCREW...
- Page 5 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4502031260 HEX. NUT 4502031270 PIVOTING PIN 4502031280 RIGHT SLIDING BRACKET 4502031290 POINTED SET SCREW 4502031300 FENCE BRACKET 4502031310 STOPPER 4502031320 WASHER 4502031330 SHOULDER HEX. BOLT 4502031340 HEX.
- Page 6 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4502032290 BACK PLATE FOR SWITCH 4502032300 SWITCH BOX 4502032310 STRAIN RELIEF 4502032320 TOOTHED WASHER 4502032330 PLATE SCREW 4502032340 HEX. NUT 4502032350 GROUND SCREW 4502032360 GROUND NUT 4502032370 SWITCH-MOTOR CORD 4502032380...
