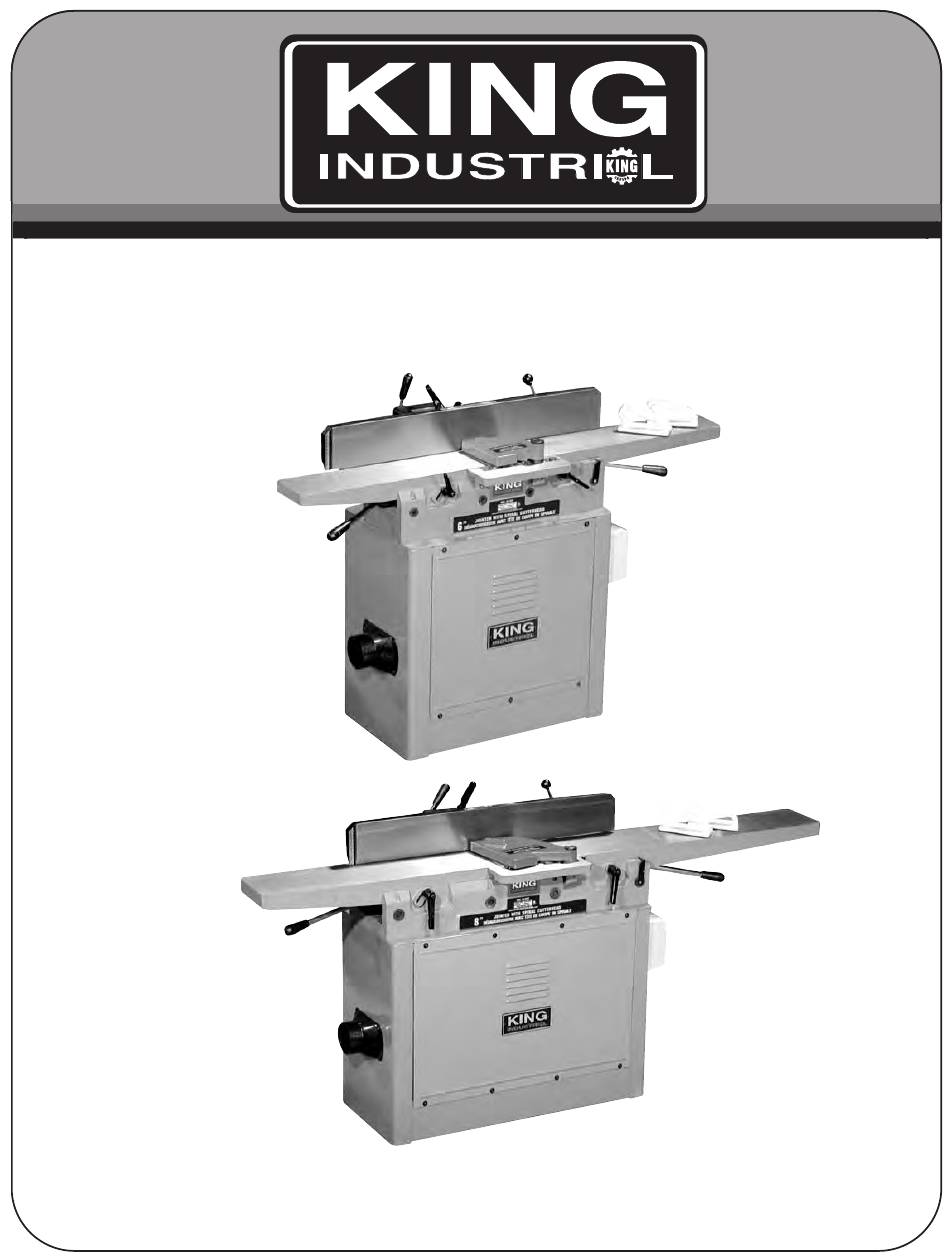

- Page 1 6” & 8” JOINTERS WITH SPIRAL CUTTERHEAD MODEL: KC-75FX (6” Jointer) MODEL: KC-85FX (8” Jointer) INSTRUCTION MANUAL COPYRIGHT © 2007 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THESE 6” AND 8” JOINTERS FOR INDUSTRIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to the Always wear safety glasses (ANSI Z87.1). Everyday eyeglasses tool. Learn its application and limitations as well as its specific only have impact resistant lenses, they are NOT safety glasses. - Page 4 KC-75FX POWER SUPPLY (DUAL VOLTAGE) The magnetic safety switch (A) Fig.3 needs to be installed to the WARNING: YOUR KC-75FX (6” Jointer) SHOULD BE CONNECTED TO A right side of the cabinet stand. Secure the magnetic safety switch 110V, 15-AMP, BRANCH CIRCUIT. FAILURE TO CONNECT IN THIS WAY to the cabinet using 4 screws, washers and hex.
-
Page 5: Unpacking And Assembly
UNPACKING & ASSEMBLY UNPACKING AND CLEANING THE JOINTER Carefully unpack the jointer and all loose items from the carton. Remove the protective coating from the machined surfaces of the jointer. This coating may be removed with a soft cloth moistened with kerosene ( do not use acetone, gasoline, or lacquer thinner for this purpose). -
Page 6: Assembling Cutterhead Guard
ASSEMBLY ASSEMBLING FENCE..3. Assemble the fence (G) Fig. 8, with the pivot brackets (H) to the sliding bracket (B) using the two 1-3/16” long socket head cap screws (F) which were removed in STEP 2. FIGURE 8 ASSEMBLING RABBETING LEDGE Assemble the rabbeting ledge (A) Fig. -
Page 7: Adjusting Belt Tension
ASSEMBLY ASSEMBLING BELT, ALIGNING PULLEYS To assemble the drive belt proceed as follows: 1. Place the belt (A) Fig. 12, around the cutterhead pulley (B), pass it through the hole in jointer stand and around the motor pulley (C) as shown. 2. -
Page 8: Fence Operation
OPERATING CONTROLS & ADJUSTMENTS FENCE OPERATION The fence can be moved across the table by loosening lock lever (A) Fig. 14, sliding the fence (B) to the desired position and retightening the locking lever (A). As the fence is moved across the table, the sliding bracket (C) guards the cutterhead in back of the fence. - Page 9 OPERATING CONTROLS & ADJUSTMENTS ADJUSTING FENCE POSITIVE STOPS The fence on the jointer is equipped with positive stops at 90 degrees and 45 degrees right and left. 90 DEGREE POSITIVE STOP To check the accuracy of the positive stops, position the fence at 90 degrees to the table by making certain the end of index pin (A) Fig.
- Page 10 OPERATING CONTROLS & ADJUSTMENTS 45 DEGREE OUTWARD POSITIVE STOP To check the accuracy of the positive stops at the 45 degree outward angle of tilt, position the fence (E) Fig. 22, outward as far as possible. Use a combination square (D) and check to see if the fence is tilted outward accurately at 45 degrees. If an adjustment is necessary, proceed as follows: 1.
-
Page 11: Parts Diagram & Parts Lists
A Torx bit is supplied with this jointer to remove or adjust the position of the carbide cutter inserts secured in the spiral cutterhead. The spiral cutterhead is equipped with 28 (KC-75FX) and 36 (KC-85FX) indexable carbide cutter inserts (A) Fig.27 which can be rotated to reveal one of its four cutting edges. Once a cutter insert becomes dull or damaged, simply rotate it 90º...
