10/2012
12" SPEED- 22" DRILL PRESS WITH LINE INTERRUPTION SWITCH
AND LIMIT SWITCH PROTECTED SAFETY GUARD
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACEMENT PARTS
Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part
numbers listed in this manual for all part orders where applicable.
LIMITED TOOL WARRANTY
King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original
retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in
materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, normal wear and tear, negligence or accidents, repairs
done by an unauthorized service center, alterations and lack of maintenance. King Canada shall in no event be liable for death, injuries to
persons or property or for incidental, special or consequential damages arising from the use of our products.
To take advantage of this limited warranty, return the product at your expense together with your dated proof of purshase to an authorized King
Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized service
centers. In cooperation with our authorized serviced center, King Canada will either repair or replace the product if any part or parts covered
under this warranty which examination proves to be defective in workmanship or material during the warranty period.
MODEL: KC-122FC-LS
Using the line interruption electro-mechanical switch
The line interruption electro-mechanical switch installed on your drill press is designed with
safety in mind. In the event of a power failure, the On button will need to be reactivated in order
to restart the drill press, preventing all unexpected/accidental retarts when the power comes
back on.
To turn the drill press on, press the green On button (A) Fig.1. Press the large Off paddle (B) To
turn the drill press off.
Installing and using the limit switch protected safety guard
The limit switch safety guard is intended to protect the operator during drilling operations. If the
safety guard is not positioned in its closed position (in front of the drill chuck), the safety guard
limit switch will prevent the drill press from starting. Close the safety guard and then press the
green On button to start. If the safety guard is opened during a drilling operation the drill press
will shut off automatically, the safety guard will need to be closed and the green On button will
need to be pressed to restart drill press.
1) Mount the transparent safety guard (C) Fig.1 to the bar (D) using 2 cap screws.
2) Slide the bar up into the limit switch bracket (E). Install cap screw (F).
3) Adjust the height of the bar/safety guard and secure its position by tightening knob (G).
It is recommended to test the limit switch safety guard before any drilling operation. Turn drill
press on and open the safety guard, the drill press MUST shut off. If it doesn't, the safety guard
needs to be reinstalled correctly.

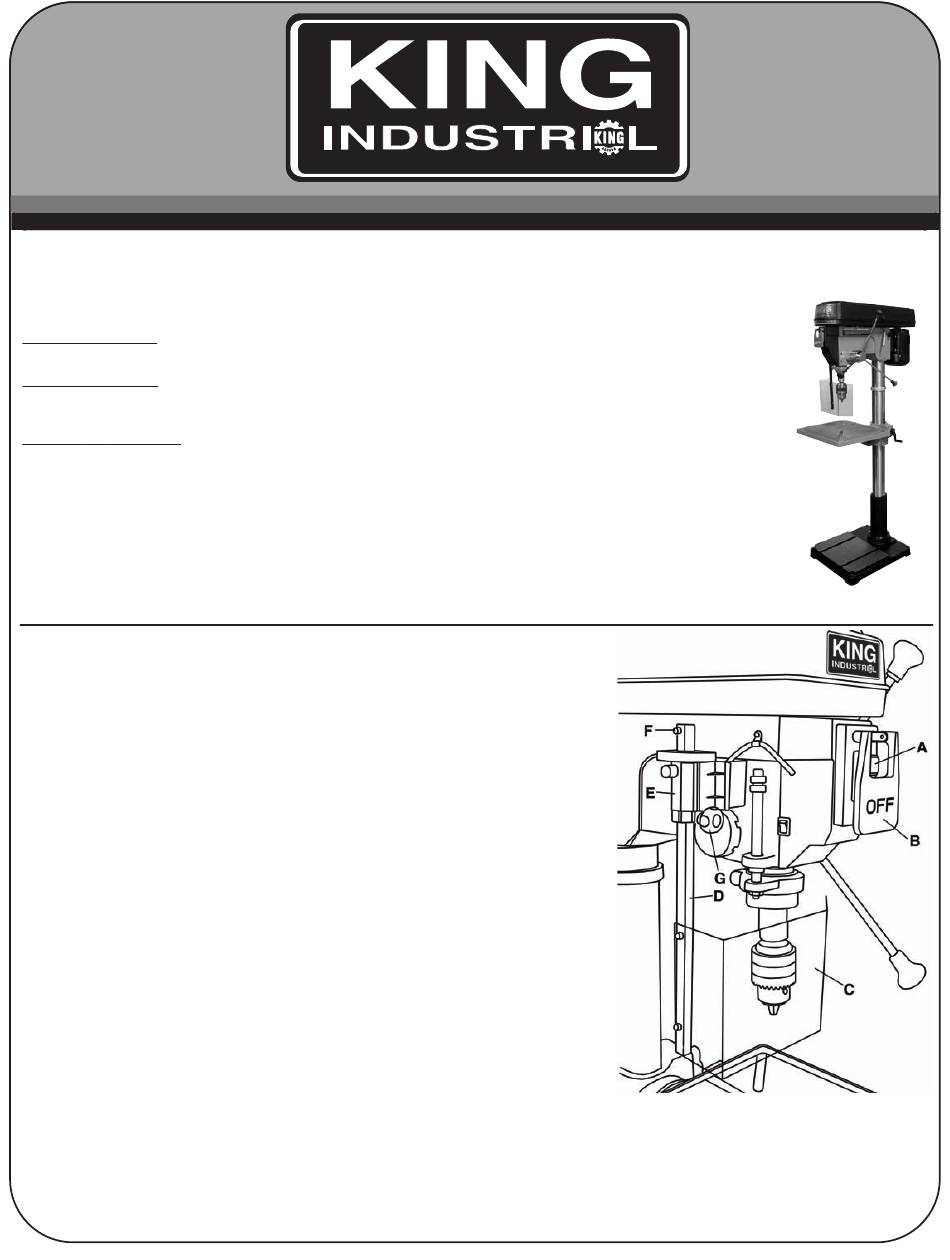

FIGURE 1
COPYRIGHT © 2012 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
