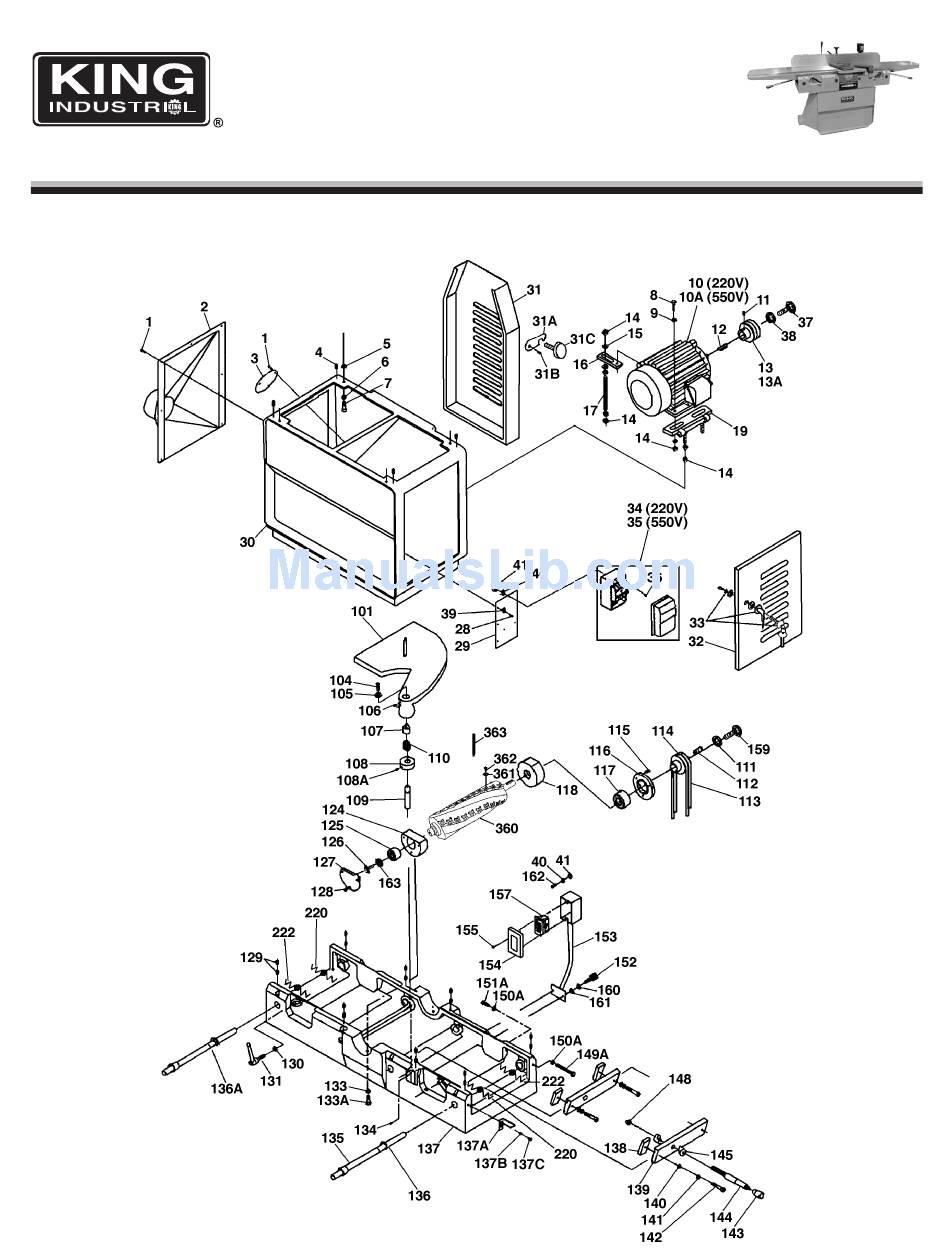

- Page 1 Service Manual / Manuel de Service 12” Industrial Jointer with Spiral Cutterhead Dégauchisseuse Industrielle avec Tête de Coupe en Spirale 12” Revised/Revisé 08/2008 Cabinet & Base Diagram / KC-125FX(-5) Diagramme du Cabinet et de la Base...
- Page 2 Service Manual / Manuel de Service 12” Industrial Jointer with Spiral Cutterhead Dégauchisseuse Industrielle avec Tête de Coupe en Spirale 12” Revised/Revisé 08/2008 Fence & Table Diagram / KC-125FX(-5) Diagramme du Guide et de la Table...
- Page 3 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4501200010 ROUND HD ALLEN SCREW 4501200020 DUST HOOD 4501200030 DUST CHUTE COVER 4501200040 SET SCREW 4501200050 RUBBER WASHER 4501200060 SPRING WASHER 4501200070 CAP SCREW 4501200080 HEX.
- Page 4 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4501201120 SPECIAL KEY 4501201130 V-BELT 4501201140 PULLEY 4501201150 CAP SCREW 4501201160 BEARING COVER 4501201170 BALL BEARING 4501201180 BEARING SUPPORT 4501201240 BEARING SUPPORT 4501201250 BALL BEARING 4501201260 SPECIAL HEX.
- Page 5 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4501202010 OUTFEED TABLE 4501202020 TABLE LIP (LEFT) 4501202030 SPRING WASHER 4501202040 CAP SCREW 4501202050 SHAFT 4501202060 INFEED TABLE 4501202070 TABLE LIP (RIGHT) 4501202080 CAP SCREW 4501202090 SPRING WASHER 4501202100...
- Page 6 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4501203270 REAR BRACKET FOR FENCE 327A 4501203271 STOP PLATE 327B 4501203272 WASHER 327C 4501203273 HEX. BOLT 4501203280 LEFT BRACKET 4501203290 SPRING PIN 4501203300 SPECIAL NUT 4501203310 HEX.
