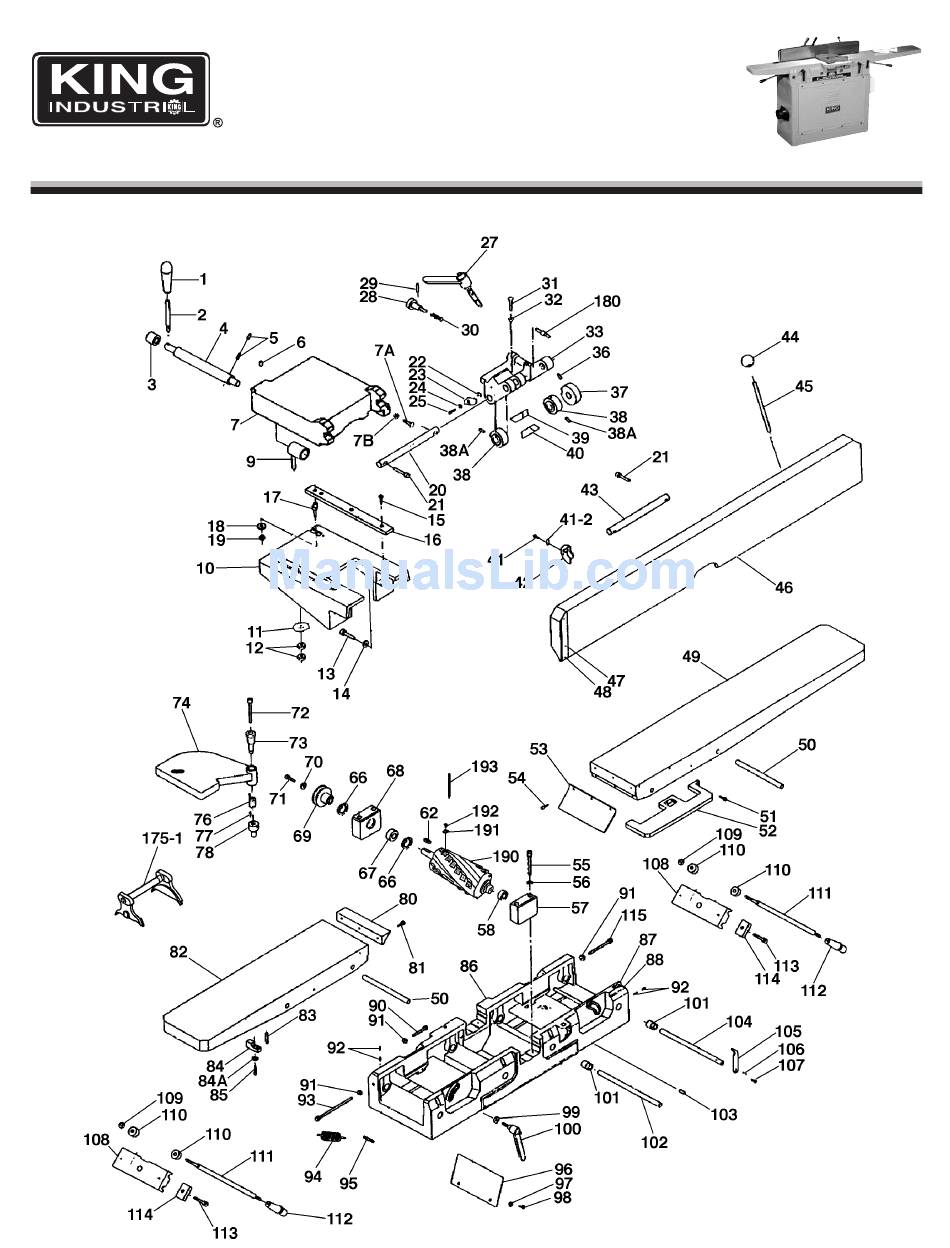

- Page 1 Service Manual / Manuel de Service 8” Industrial Jointer with Spiral Cutterhead Dégauchisseuse Industrielle avec Tête de Coupe en Spirale 8” Revised/Revisé 08/2008 Main Diagram / Diagramme Principale KC-85FX...
- Page 2 Service Manual / Manuel de Service 8” Industrial Jointer with Spiral Cutterhead Dégauchisseuse Industrielle avec Tête de Coupe en Spirale 8” Revised/Revisé 08/2008 Base Diagram / Diagramme de la Base KC-85FX...
- Page 3 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4500800010 HANDLE KNOB 4500800020 HANDLE 4500800030 LINK BUSHING 4500800040 ECCENTRIC SHAFT 4500800050 SET SCREW 4500800060 SET SCREW 4500800070 FENCE BRACKET 4500800071 HEX. BOLT 4500800072 HEX. NUT 4500800090 THREADED "T"...
- Page 4 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4500800480 RIVET 4500800500 TABLE SHAFT 4500800510 CAP SCREW 4500800520 RABBETING TABLE EXTENSION 4500800530 CHIP DEFLECTOR 4500800540 CAP SCREW 4500800550 CAP SCREW 4500800560 SPRING WASHER 4500800570 BEARING BLOCK (LEFT) 4500800580 BALL BEARING...
- Page 5 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4500801050 POINTER 4500801060 SPRING PIN 4500801070 PAN HD SCREW 4500801080 PIVOT BRACKET 4500801090 HEX. NUT 4500801100 ANGLE BUSHING 4500801110 ADJUSTMENT LEVER 4500801120 LEVER KNOB 4500801130 CAP SCREW 4500801140 CLAMP PLATE...
- Page 6 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 4500801820 PAN HD SCREW 4500801830 WASHER 4500801840 MAGNETIC SWITCH PLATE 4500801850 TOOTH WASHER 4500801860 HEX. NUT 4500851900 SPIRAL CUTTERHEAD KW-093 CUTTER INSERT SET (10 PC) 4500851920 "TORX"...
