- Page 1 AL802ADA220J NAC Power Extender Installation Guide (see Application Guide for additional information) More than just power. Rev. 122713...
-
Page 2: Specifications

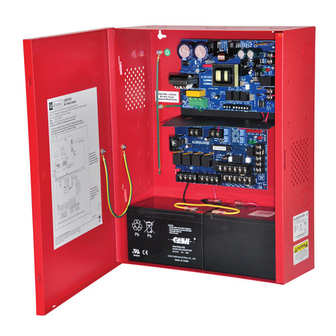

Overview: Altronix AL802ADA220J is an extremely cost-effective 8A remote power supply/battery charger. It may be connected to any 12 or 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. It also pro- vides auxiliary power to support system accessories. -
Page 3: Power Supply Specifications
Battery Use two (2) 12VDC/7AH or two (2) 12VDC/12AH batteries connected in series. Stand-by/Alarm 90mA/175mA Current Consumption: EOL Resistor (end of line): 2.2K (2200 Ohm), Altronix Model # AL-EOL22 (included). Ground fault maximum 1000 Ohm. test impedance: Stand-by Specifications: Stand-by Time Total... - Page 4 Cooper Wheelock. tion over a two-wire circuit while leaving strobes active. *Note: The AL802ADA220J will only synchronize horns, horn/strobes and strobes that contain synchronization capability. Contact signal manufacturer for more detailed info. The same synchronization mode must be selected for all outputs Note: It is required to control visual notification appliances (strobes) via Input 1 (IN1) and audible noti- fication appliances (horns) via Input 2 (IN2).
- Page 5 For loads connected to “AUX” please refer to battery “Stand-by Specifications”, pg. 3 for ratings. When loads are connected to “AUX” output during alarm condition, the remaining outputs may not exceed 8A total alarm current (example: AUX = 1A, outputs up to 7A). AL802ADA220J - 5 -...
-
Page 6: Led Diagnostics
The green input LEDs will be off (normal condition). To reset the memory depress the reset button (Fig. 2c, pg. 8). The LED(s) will extinguish. Note: If indicating circuits have been restored, memory reset is not required for normal operation of the unit. - 6 - AL802ADA220J... -
Page 7: Battery Calculation Worksheet
Current Current For each device use this formula: This column x This column = Equals Current per number of devices. Stand-by: 90mA 90mA AL802ADA220J (Current draw from battery) Alarm: 175mA 175mA AL802 Current 90mA 175mA Auxiliary Devices Refer to device manual for current ratings. - Page 8 - 8 - AL802ADA220J...
-
Page 9: Maintenance
Check input fuse on the power supply board, replace if necessary. Input fuse rating is 5A @ 250V. Note: Maximum charging current is 3.2A. Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed. AL802ADA220J - 9 -... -
Page 10: Appendix A: Compatible Ul/Cul Listed Devices For Synchronization
Appendix A: Compatible UL/cUL Listed Devices for Synchronization A-1 Strobes, Horns, and Horn/Strobes Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL802ADA220J NAC outputs. Gentex: GCS24CR - UL GCCB24PCR / W - UL GEC24-15/75WR - UL GCS24CW - UL... - Page 11 Appendix A (cont’d): Compatible UL/cUL Listed Devices for Synchronization A-1 Strobes, Horns, and Horn/Strobes (cont’d) Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL802ADA220J NAC outputs. System Sensor: CHSR - UL P4R-SP - UL PC4RH-P - UL SPSCW - UL...
- Page 12 Appendix A (cont’d): Compatible UL/cUL Listed Devices for Synchronization A-1 Strobes, Horns, and Horn/Strobes (cont’d) Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL802ADA220J NAC outputs. Cooper/Wheelock: 50-241575W-FR - UL/cUL E70-24MCW-FN - UL/cUL ET90-24MCCH-FN - UL/cUL LSTW-A* - UL/cUL...
-
Page 13: Appendix B - Ul Listed Compatible Devices
Appendix B - UL Listed Compatible Devices B.1 Four (4) Wire Smoke Detectors Table B-1 below lists four (4) wire smoke detectors compatible with AL802ADA220J AUX output and Outputs 1-8 when programmed as AUX. System Sensor Max Stand-by Alarm Detector Type... - Page 14 Notes: - 14 - AL802ADA220J...
- Page 15 Notes: AL802ADA220J - 15 -...
- Page 16 14.5” (368.3mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIAL802ADA220J F27R - 16 -...
