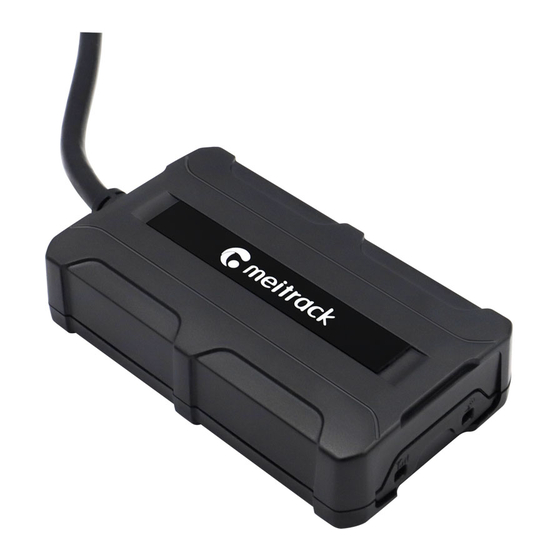

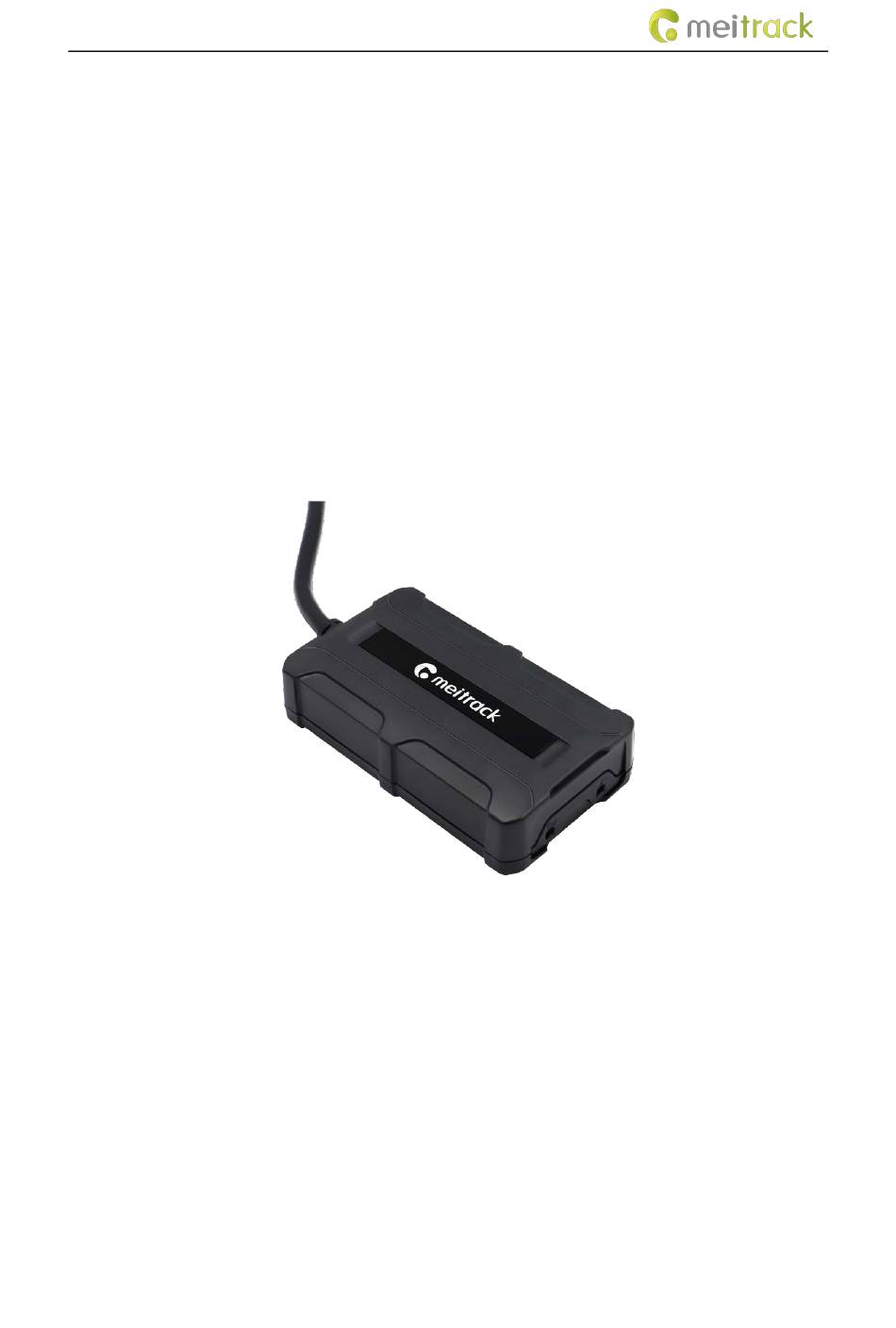

- Page 1 MEITRACK T711L GPS Vehicle Tracker User Guide MEITRACK T711L GPS Vehicle Tracker User Guide...
- Page 2 MEITRACK T711L GPS Vehicle Tracker User Guide Change History File Name MEITRACK T711L GPS Vehicle Tracker User Guide Project T711L GPS vehicle tracker Creation Date 2021-11-21 Update Date Subproject User Guide Total Pages Version V1.0 Confidential External Documentation Copyright © Meitrack Group 2021. All rights reserved.
-
Page 3: Table Of Contents
6.3 Device Configuration ............................ - 9 - 6.3.1 Installing the USB Driver ........................- 9 - 6.3.2 Configuring Device Parameters by Meitrack Manager ............... - 10 - 6.4 Tracking by Mobile Phone ........................... - 10 - 6.5 Common SMS Commands .......................... - 12 - 6.5.1 Querying the Location in Real Time –... -
Page 4: Copyright And Disclaimer
2 Product Introduction The T711L is a GPS vehicle tracker featuring the IP67 water resistance rating and internal GPS and GSM antennas. This tracking unit can work properly in harsh environments. It is specially designed for different types of vehicles, such as cars, motorcycles, yachts, and boats. -
Page 5: Starting The Engine By Ibutton
3. The device's output 1 is connected to the engine control cable through a relay. 4. The RFID ignition function has been enabled by Meitrack Manager or MS03 tracking platform. 5. The RFID event has been enabled on Meitrack Manager. Otherwise, the function is unavailable. -
Page 6: Product Specifications
MEITRACK T711L GPS Vehicle Tracker User Guide A-GPS Idling alert Harsh acceleration alert Harsh braking alert Harsh cornering alert Vehicle maintenance reminding Online Parameter Editor (MS03 platform) Support online OTA updates 3.2 Product Specifications... -
Page 7: Product Appearance
MEITRACK T711L GPS Vehicle Tracker User Guide T711L vehicle tracker (with a cable of 50 cm in length) Normal temperature resistant battery (200 mAh) L wrench Hexagon screw CD download card Optional accessories: Optional Accessory... -
Page 8: First Use
MEITRACK T711L GPS Vehicle Tracker User Guide 6 First Use 6.1 Installing a SIM Card Perform the following steps to install a SIM card: 1. Use the screwdriver to open the back cover of the device. 2. Insert the nano-SIM card into the card slot (with the gold-plated contacts facing down). -
Page 9: Device Configuration
6.3 Device Configuration 6.3.1 Installing the USB Driver 1. Decompress the stsw-stm32102.zip file provided by Meitrack, locate the following file, and install the USB driver on a computer with the 64-bit Windows system. 2. After the installation is finished, connect the device to the computer through the USB cable. If STMicroelectronics Virtual COM Port (COM5) is displayed on the Device Manager page, the driver is installed successfully. -
Page 10: Configuring Device Parameters By Meitrack Manager
2. Connect the device to a computer by using the USB cable, as shown in the following figure. 3. Run Meitrack Manager, then the following dialog box appears: 4. Turn on the device, then Meitrack Manager automatically detects the device model and the configuration interface (default parameter settings) appears accordingly. - Page 11 MEITRACK T711L GPS Vehicle Tracker User Guide SMS example: Now,061314 10:36,V,26,0Km/h,96%,http://maps.meigps.com/?lat=22.513781&lng=114.057183 The following table describes the SMS format: Parameter Description Remarks Indicates the current location. Alert type: indicates the current location or alert type. 061314 10:36 Indicates the date and time in MMDDYY Time hh:mm format.
-
Page 12: Common Sms Commands
MEITRACK T711L GPS Vehicle Tracker User Guide 6.5 Common SMS Commands 6.5.1 Querying the Location in Real Time – A00 SMS sending: 0000,A00 SMS reply: Now,Date and time,Positioning status,GSM signal strength,Speed,Remaining battery capacity,Map link Description: This command is used to query the current location of the device. -
Page 13: Setting The Idling Alert - B14
MEITRACK T711L GPS Vehicle Tracker User Guide Description: Connection mode = 0: function disabled. Connection mode = 1: function enabled. Use the TCP/IP reporting mode. Connection mode = 2: function enabled. Use the UDP reporting mode. IP address: IP address or domain name. Contains a maximum of 32 bytes. -
Page 14: Setting The Sharp Left Turn Or Sharp Right Turn Alert - Bc6
MEITRACK T711L GPS Vehicle Tracker User Guide Z2: indicates the detection time of the harsh braking alert. Unit: second. The parameter value ranges from 1 to 255. If you want to read the command settings, send 0000,BBD. Example: SMS sending: 0000,BBD,200,100,10,200,-100,10 SMS reply: 353358017784062,BBD,OK 6.5.6 Setting the Sharp Left Turn or Sharp Right Turn Alert –... -
Page 15: Logging In To Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a device, see the MEITRACK MS03 GPS Tracking System User Guide (chapter 4 "Getting Started"). -
Page 16: Device Installation
MEITRACK T711L GPS Vehicle Tracker User Guide For details, see the MEITRACK MS03 GPS Tracking System User Guide. 8 Device Installation 8.1 Installing the I/O Port Cable 8.1.1 Interface Definition The I/O port cable of the device is a 6-pin cable, including the power port, analog input port, positive input port, negative input port, output port, and 1-Wire port. -
Page 17: Wiring
Mount the device in the vehicle by a cable tie or 3M double-sided tape. Note: Do not install it at a metal covered place. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © Meitrack Group 2021. All rights reserved.
