MeiTrack T633L User Manual
  1. Manuals
  2. Brands
  3. MeiTrack Manuals
  4. GPS
  5. T633L
  6. User manual

MeiTrack T633L User Manual

Hide thumbs Also See for T633L:
Table of Contents

Advertisement

Quick Links

Download this manual

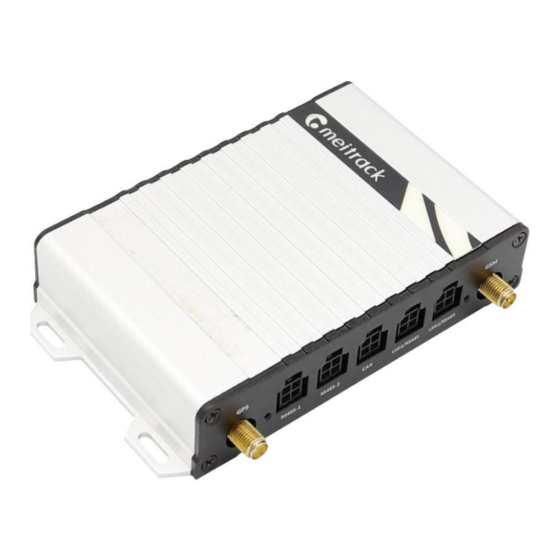

MEITRACK T633L User Guide
MEITRACK T633L User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T633L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MeiTrack T633L

Summary of Contents for MeiTrack T633L

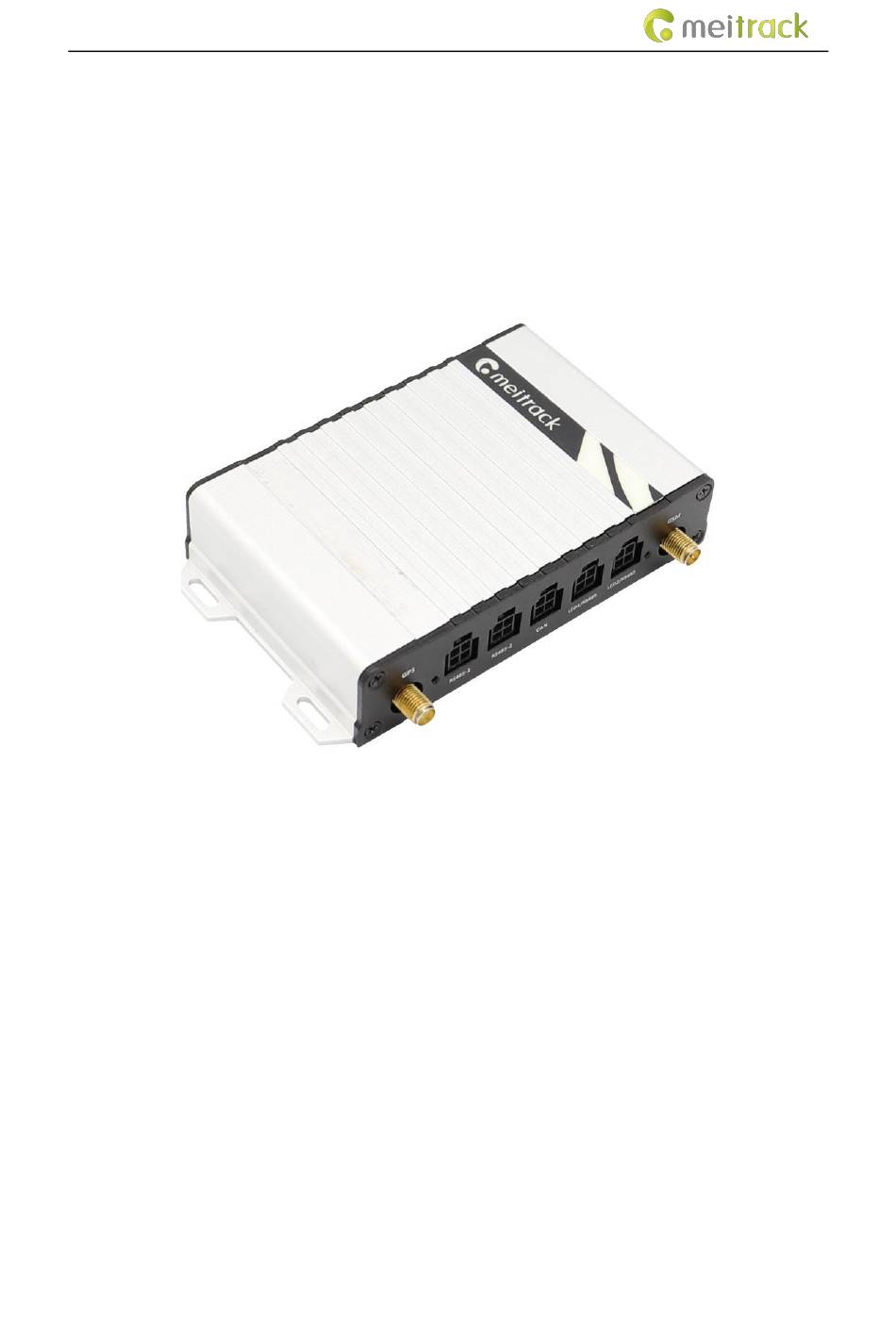

  • Page 1 MEITRACK T633L User Guide MEITRACK T633L User Guide...
  • Page 2 File Name MEITRACK T633L User Guide Project T633L Creation Date 2019-04-11 Subproject User Guide Total Pages Hardware V1.0 Software version V202 or later version Version V1.0 Confidential External Documentation Copyright © 2019 Meitrack Group All rights reserved. - 2 -...

  • Page 3: Table Of Contents

    6.2 Charging the Device ............................- 9 - 6.3 LED Indicator ..............................- 9 - 6.4 Configuring Device Parameters by Meitrack Manager ................. - 9 - 6.5 Tracking by Mobile Phone ..........................- 9 - 6.6 Common SMS Commands .......................... - 11 - 6.6.1 Setting the Speeding Alert(only work with OUT2 Port) –...

  • Page 4: Copyright And Disclaimer

    2 Product Introduction The T633L is a brand new 4G vehicle tracker. This unit can connect to multiple accessories: RFID card reader, camera and LED Nixie Tube Display. In addition, it supports driving behavior analysis, fuel level monitoring and temperature monitoring and its performance has been significantly improved.

  • Page 5: Product Functions And Specifications

    Built-in 8 MB buffer for recording driving routes (Store 4,096 GPRS cache records, 64 SMS cache records, and 65,536 GPS logs)  Mileage report  Low power alert for internal battery  Build-in 3-axis accelerometer  Over-the-Air (OTA) update Copyright © 2019 Meitrack Group All rights reserved. - 5 -...

  • Page 6: Functions Of Optional Accessories

    LED1_RS485 √ LED2_RS485 All above are the peripheral that T633L already supported. If necessary, Meitrack is capable of customizing any peripherals like cameras, ultrasonic fuel sensor, LED display connected to T633L as long as they support RS232/RS485. 3.2 Specifications Item...

  • Page 7: T633L And Accessories

     iButton  Relay (12 V/24 V)  A53 fuel level sensor (voltage sensor)  A52 digital temperature sensor  RFID reader  Magnetic reader  Buzzer  Camera Copyright © 2019 Meitrack Group All rights reserved. - 7 -...

  • Page 8: Appearance

    Ensure that the phone card PIN lock has been closed properly.  Ensure that the SIM card in the device has subscribed the caller ID service if you want to use your authorized Copyright © 2019 Meitrack Group All rights reserved. - 8 -...

  • Page 9: Charging The Device

    No base station signal is received. 6.4 Configuring Device Parameters by Meitrack Manager This section describes how to use Meitrack Manager (version 6.0.0.11 or later) to configure the device on a computer. Procedure: Install the USB driver and Meitrack Manager.
  • Page 10 If the value is greater than 12, GPRS reaches the normal level. 0Km/h Indicates the speed. Unit: km/h Indicates the remaining battery power. None http://maps.meigps.c Indicates the map link. None om/?lat=22.513781&l Latitude: 22.513781 ng=114.057183 Longitude: 114.057183 Copyright © 2019 Meitrack Group All rights reserved. - 10 -...

  • Page 11: Common Sms Commands

    If you want to read idling parameters, send 0000,B14. Example: Sending: 0000,B14,180,5,120 Reply: 353358017784062,B14,OK 6.6.3 Setting Fatigue Driving – B15 SMS sending: 0000,B15,Consecutive driving time,Alert time,ACC off time SMS reply: IMEI,B15,OK Copyright © 2019 Meitrack Group All rights reserved. - 11 -...

  • Page 12: Setting The Driving License Type - C50

    Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started").

  • Page 13: Installing The T633L

    Send commands in batches.  Support OTA updates. For details, see the MEITRACK GPS Tracking System MS03 User Guide. 8 Installing the T633L 8.1 Installing GPS and 3G Antennas Connect the 3G antenna to the connector which is labeled "GSM". The 3G antenna is non-directional, so you can hide it in any place of a vehicle.
  • Page 14 Note: The DC or AC voltage that is greater than 3.3 V is not allowed. Otherwise, the device may be damaged. Noted: Based on all above, T366L could support at most 9 digital inputs, 8 outputs, 4 AD ports: Copyright © 2019 Meitrack Group All rights reserved. - 14 -...

  • Page 15: Device Connection Diagram

    √(OUT1) Pin 10(Yellow) √(IN8) √(IN8) √(OUT2) Pin 11(Yellow&Brown) √(IN9) √(OUT4) Pin 12(Green) 8.3 Device Connection Diagram If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2019 Meitrack Group All rights reserved. - 15 -...

Table of Contents
