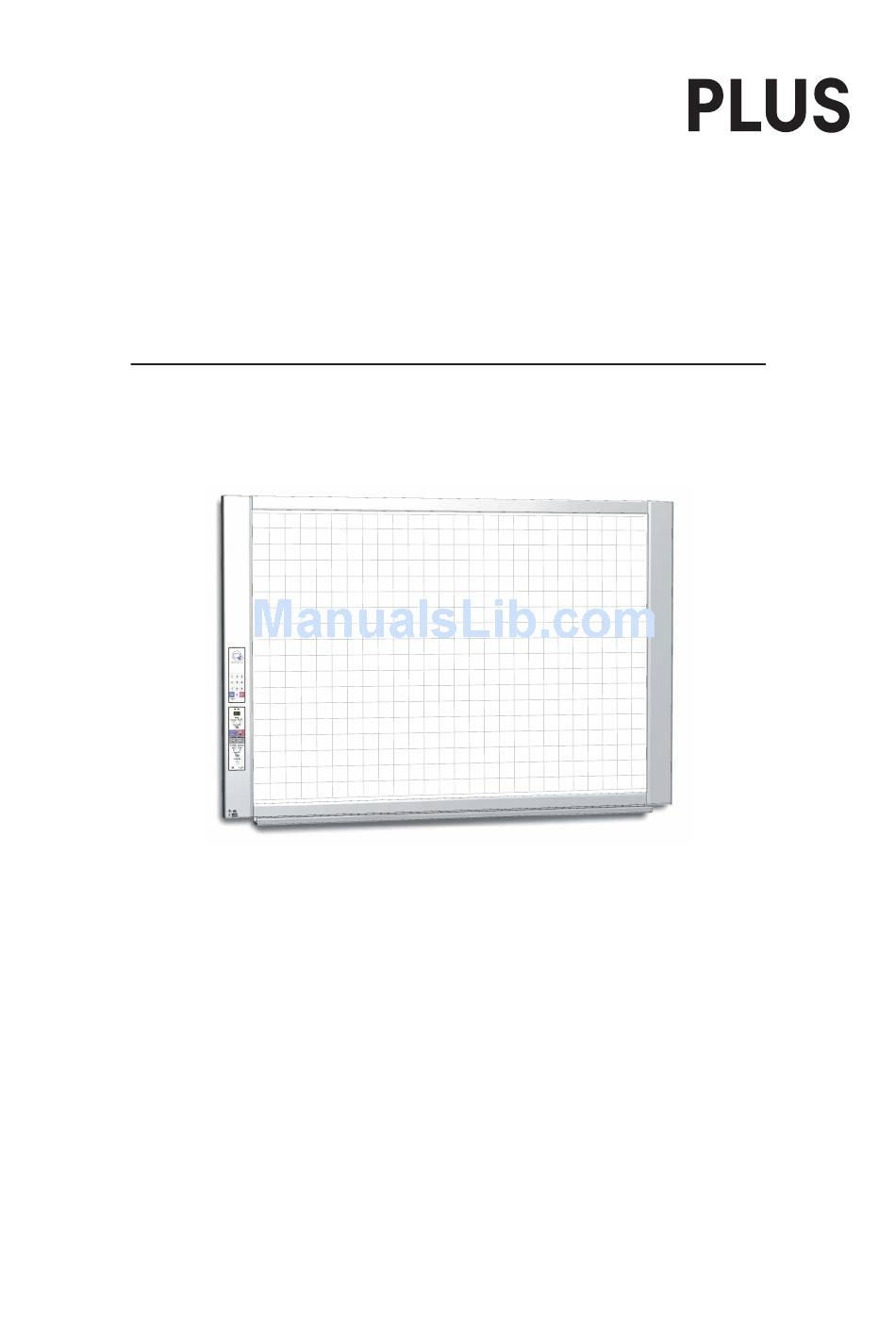

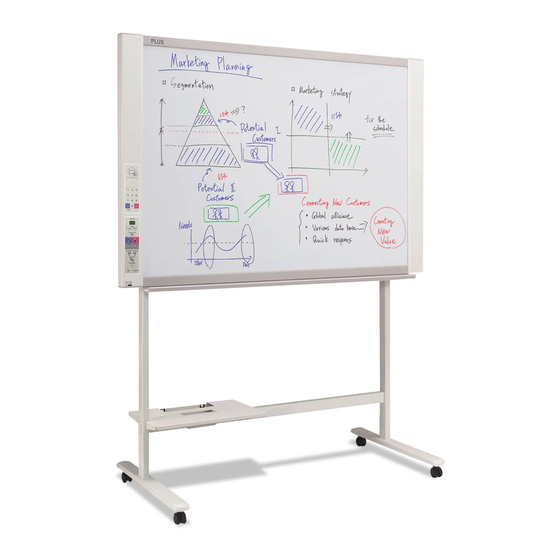

Copyboard
(Network board)
N - 31S/N - 31W/N - 314
User's Manual
Thank you for your purchase of the PLUS Copyboard.
Please read this User's Manual carefully before use to take full advan-
tage of the functions of this product. After you have finished reading
the manual, please keep it for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the N-31S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Plus N-31S

Summary of Contents for Plus N-31S

  • Page 1 N - 31S/N - 31W/N - 314 User’s Manual Thank you for your purchase of the PLUS Copyboard. Please read this User’s Manual carefully before use to take full advan- tage of the functions of this product. After you have finished reading...
  • Page 2 Introduction This manual is for the network board (model name: N-31S/N-31W/N-314). Model Type N-31S Standard size for two screens N-31W Wide size for two screens N-314 Standard size for four screens fied. NOTE...
  • Page 3 Introduction ...............E-2 Using USB Memory ..........E-20 Package Contents ............E-4 USB Memory Storage Procedure ......E-20 Names of the Parts ............E-5 Saving Image Files on a Computer/Deleting Image Files ..............E-22 Front ..............E-5 Using the network board connected to a Input/output terminals ..........
  • Page 4 The package contents are as described below. Please check before use. ↔ Model:LTE36E-S2-3 Manufacture:Li Tone Electronics Co.,LTD,...
  • Page 5 Front Note...
  • Page 7 This is the height adjustment when setting up the network board on the optional stand. The stand height can be adjusted to 3 levels by 100 mm. (1) Unplug the power cord from the wall power outlet, then disconnect all the connection cords from the main unit.
  • Page 8 The control panel of the drawing refers to Model N-31S/N-31W. When pressing a button, please press the center area (the square bulge). The button may not work if it is pressed on a corner.
  • Page 9 onds)
  • Page 10 ① ② ③ ④ E-10...
  • Page 11 ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ Blip! E-11...
  • Page 12 The network board uses an image scanner to scan characters or diagrams drawn using special markers (four colors). The image can be printed out to the printer and be stored on a USB memory device or a computer. When network settings are made with a network connected to the network board, the image can be saved on the network board or a FTP server, or can be printed out to the network printer on the network.
  • Page 13 The date and time are stamped on the printing paper and recorded in the file information when files are stored on the network board and FTP server, so set the network board’s time correctly. The time can also be set from a computer via a network (when connected to a LAN).
  • Page 14 E-14...
  • Page 15 Use a printer to print out the image that has been drawn on the sheet surface. Use a PLUS-designated printer. Operations and names of parts differ from printer to printer. For details of operations, see your printer’s operat- ing instructions. The network board can print out to the printer connected to the network board or a network.
  • Page 16 Note Note E-16...
  • Page 17 Note Note Note E-17...
  • Page 18 Note selection screens → → → → of 4 screens zontally) of 4 screens cally) screen) Note E-18...
  • Page 19 N-314) Screens 1 and 2 → (Screens 1 and 2 → Screens 1 to 3 → Screens 1 to 4 → Note Note E-19...
  • Page 20 The content of what has been drawn on the sheet surface of the network board can be saved in USB memory. Later, the saved image can be read into a personal computer and made into a document of the proceedings of the meeting, or affixed to a document.
  • Page 21 Display window Note Note E-21...
  • Page 22 Examples of operations follow for saving the image files in the USB memory device to the hard disk of the per- sonal computer, and for deleting the folder when the USB memory capacity is full. (There are various methods that can be used for saving and deleting including the use of Explorer.) See the instruction manual of your per- sonal computer or the software that you are using for information about using a personal computer.
  • Page 23 Note E-23...
  • Page 24 When the network board and a computer are connected by USB cable, the network board is recognized as an external memory device (removable device). Below is the procedure for copying the “CBImage” file from this device onto the computer. Images can be stored in JPEG (.jpg), PNG (.png) or PDF (.pdf) format, selectable in the network board settings (“CB Setup”).
  • Page 25 Note E-25...
  • Page 26 There are two ways to make the device settings: using the network board’s operation buttons to make the set- tings (“CB Setup”) and making the settings via the web on the computer connected to a network. The description here provides operation using the network board’s buttons. For using the network board connected to a network, refer to the separate “N-31 Series Network Manual”.
  • Page 27 Description Not lit Valid* Standard tion* E-27...
  • Page 28 Description DD-MMM- MMM-DD- — — — E-28...
  • Page 29 If any of the following flashing indications appear in the display window of the control panel, please check the matters described below. Error messages flash for 5 seconds, then stop flashing, remaining lit. nected — Security protec- tion connected printer is con- nected E-29...
  • Page 30 connected nection failure reset error E-30...
  • Page 31 Please check the following matters before making a request for servicing. E-31...
  • Page 32 Also see the descriptions of error indications at “Network (main unit) related errors” on page E-30. E-32...
  • Page 33 If dark lines (horizontal black lines) on a printed out hard copy or image on the screen are generated, you need to optimally adjust the sensitivity of reading the sheet surface. If the scanning image does not work due to generation of dark lines, update the program and perform the white calibration in the following steps.
  • Page 34 BOARD TYPE (Model name) Standard (N-31S) Wide (N-31W) 4-screen (N-314) Installation method Self-standing (T-shaped legs), or wall mounting External dimensions (T-shaped W1480 × D675 × H1947*² W1980 × D675 × H1947*² W1480 × D675 × H1947*² legs*¹) Form Main unit weight 20 kg*³...
  • Page 35 To wall power outlet Note E-35...
