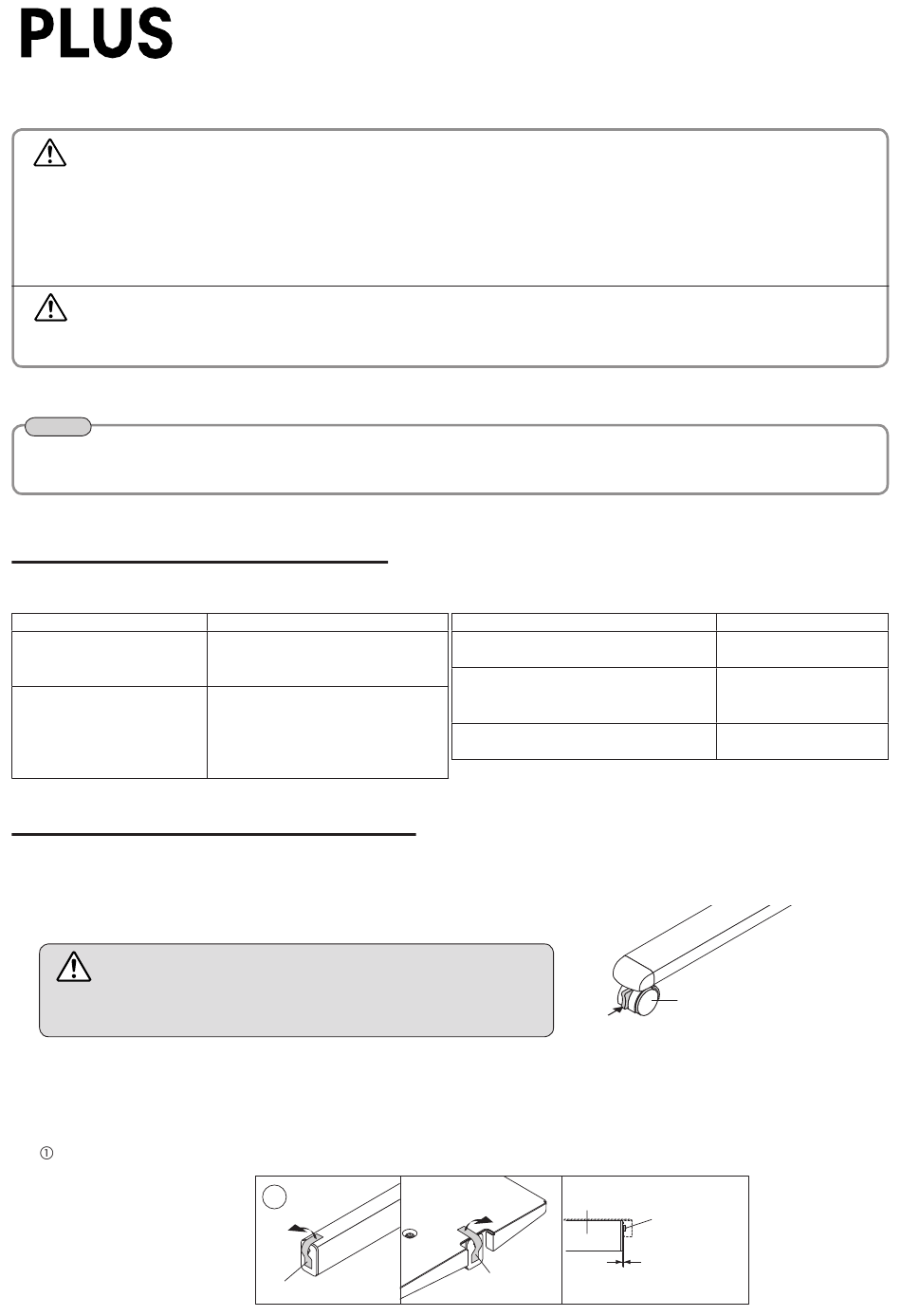

Plus M-18 Series Assembly Manual

This is the stand assembly manual for the M-18 and N-20 Series Copyboard.
The copyboard is referred to as "the set" or "the main unit" below.
WARNING
• Only specially trained technicians should perform installation operations.
• Please be sure to perform the installation and assembly based on this manual. Incorrect installation or assembly will be the cause of injury.
• Please have 2 or more persons lift the main unit when installing or removing it.
• For details on installation, also refer to the main unit's "User's Manual" and "Assembly and Setup Manual".
• Remove the 4 stabilizers and unlock the caster stoppers before moving the stand.To prevent the toppling, be sure to remove the stabilizers
and unlock the stoppers.The toppling of the unit may result in bodily injury or damage to the machine.
CAUTION
• When mounting the printer on the main unit, attach the *Velcro to prevent the printer from slipping out due to vibrations.
Remove the printer when moving the main unit. If not, the printer may fall, resulting in damage or injury.
* The Velcro is meant to prevent slipping, not to fasten the printer in place.
* Velcro is a registered trademark of Velcro Industries.
Note
• Diagrams of printers that appear in this manual are representative illustrations.
The illustration may differ from the actual printer. Check the owner's manual of your printer for information about the names of the connectors and
their locations and use.
STAND PACKAGING LIST
Please open the carton and check the parts.
In the rare event that something is missing, please contact your store of purchase.
Name
T-shape legs (with casters) : 2
Horizontal bars:1
ASSEMBLY OF THE STAND
Preparation:
Mount the pen tray on the main unit.
For the mounting instruction, please refer to the "Assembly and Setup Manual".
1. Lock the caster stoppers.
Press the bottom portion of the stoppers down to lock them.
CAUTION
• Lock the casters of the T-shaped feet (left and right). If not, the stand could
slip, causing the stand or main unit to fall and resulting in injury or damage.
2. Mount the T-shaped feet to the side bar.
The shorter side of the T-shaped foot is the back of the stand. The diagrams show the procedure from the back side.
Set the T-shaped foot with the cable cover on the right side (the printer table side).
Remove the temporary fixing tape from the ends of the side bar.
Assembly parts
Screw caps: 2
Locking knobs 2
Cable cover: Mounted on stand
Mount screws (M5 x 20 mm):2
(temporarily fastened on side bar)
Mount screws (M5 x 45 mm): 2
Sleeves: 2
Plain washer :2
1
Temporary fixing tape
Stand Assembly Manual
Name
Stabilizers:4
Printer table/AC power adapter box: 1 set
(mounted on side bar)
Velcro: 2 sets
Hexagonal wrench
(width across flats: 3 mm): 1
Side bar
Space of about 2 mm
Temporary fixing
tape
M-18/N-20 Series Copyboard
Assembly parts
Hexagonal socket screws
(M5 x 8mm):8
Caster
M5 screw
(mounted on
side bar)
