Installation for Decorative Trim:
1. Installation for Left/Right Decorative Trim:
· Wedge two flanged screws on sides of the shell into slots of Left/Right Decorative Trim. (See Figure 18)
2. Installation for Top Decorative Trim:
· Wedge two flanged screws on top cover into slots of Top Decorative Trim. (See Figure 19)

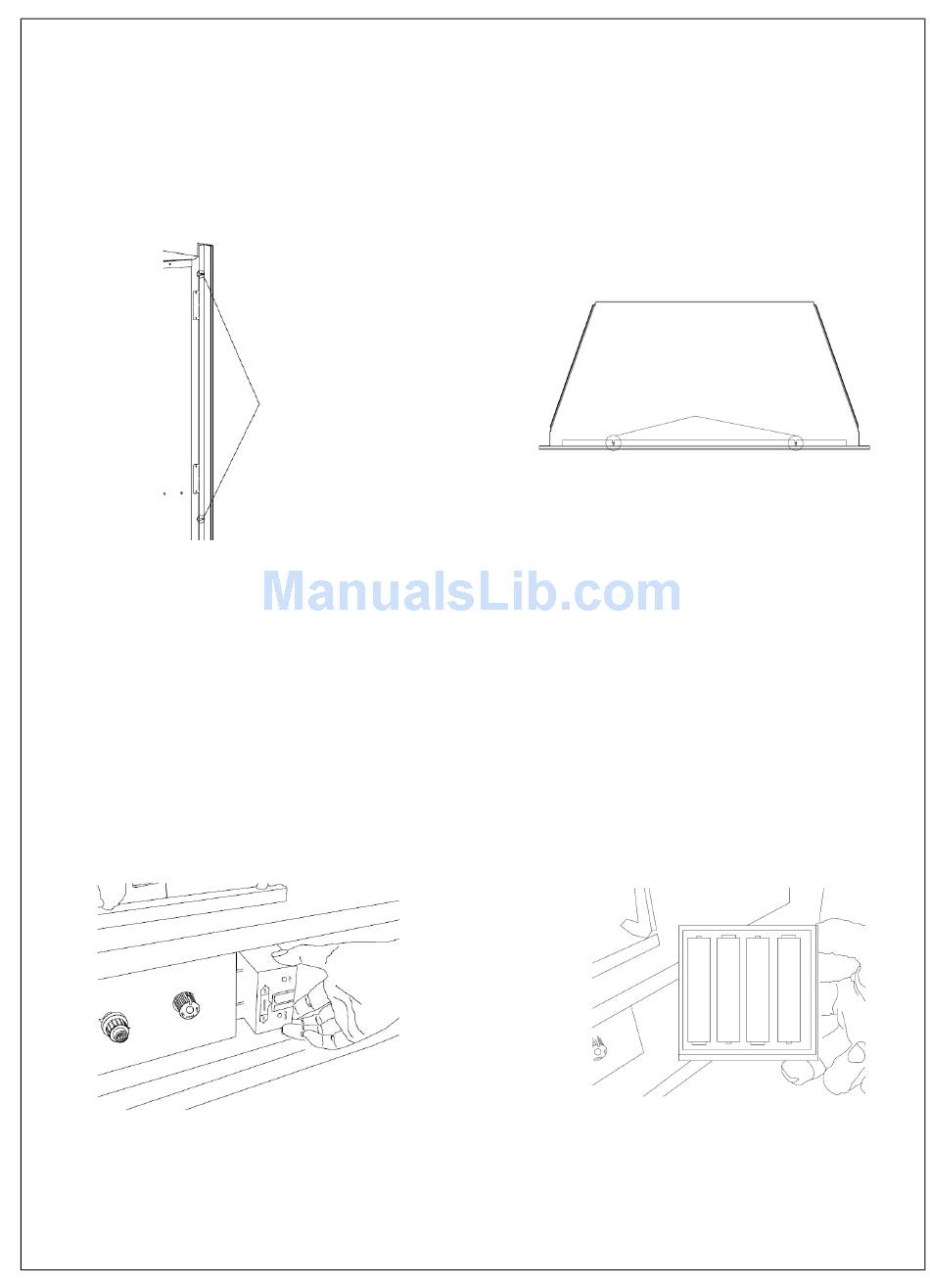

Figure 18
Installation for Remote Receiver:
The remote receiver operates on four 1.5V AA-size batteries. It is recommended that ALKALINE batteries be used
for longer battery life and maximum microprocessor performance.
IMPORTANT: New or fully charged batteries are essential for proper operation of the remote receiver as the
solenoid power consumption is higher than standard remote control systems.
1. Take Control Box out from Control Panel. (See Figure 20 )
2. Remove battery cover along the direction showed on the battery box, and install four (4) AA batteries into the
box. (See Figure 21 )
Figure 20
17
Figure 19
Figure 21
