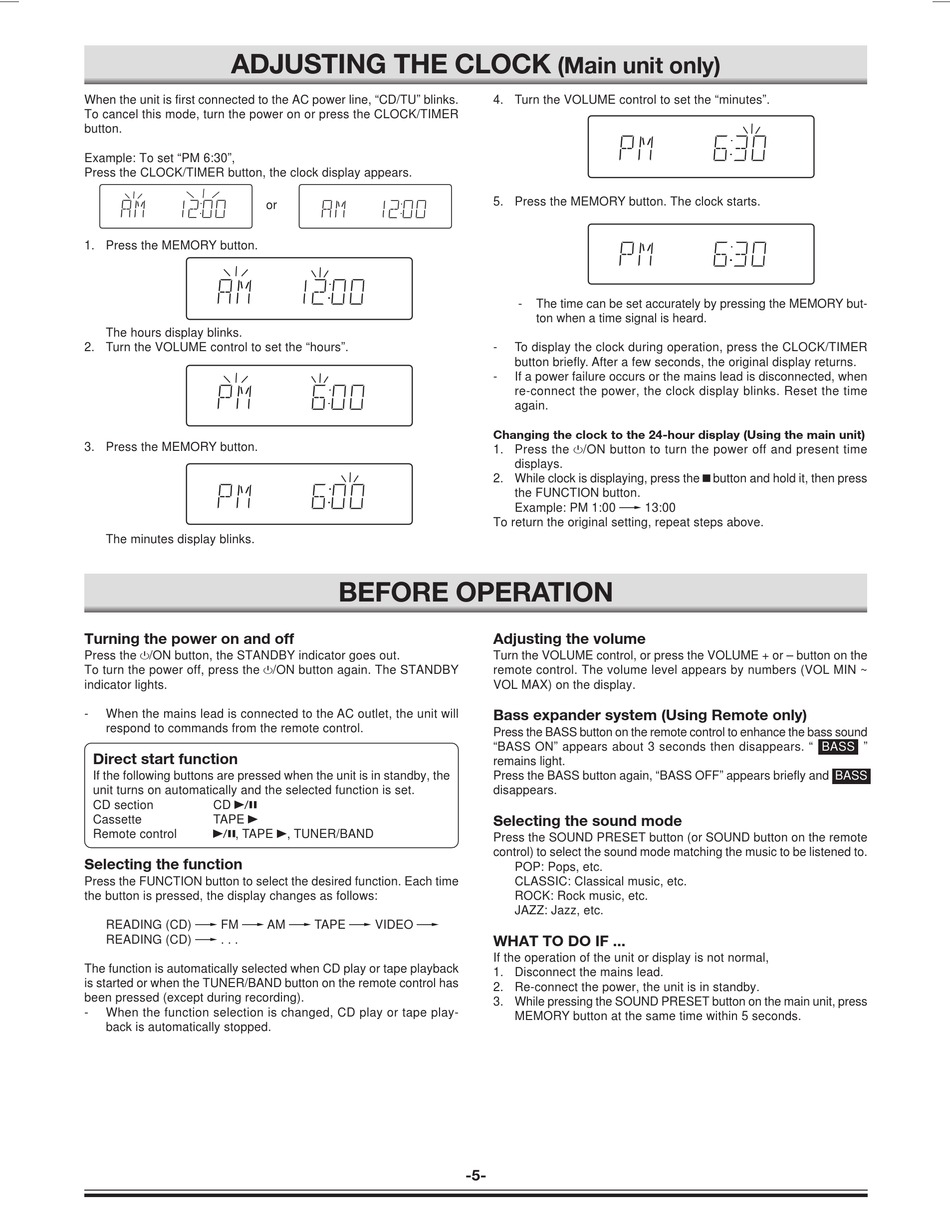

ADJUSTING THE CLOCK
When the unit is first connected to the AC power line, "CD/TU" blinks.
To cancel this mode, turn the power on or press the CLOCK/TIMER
Example: To set "PM 6:30",
Press the CLOCK/TIMER button, the clock display appears.
1. Press the MEMORY button.
The hours display blinks.
2. Turn the VOLUME control to set the "hours".
3. Press the MEMORY button.
The minutes display blinks.
Turning the power on and off
Press the z/ON button, the STANDBY indicator goes out.
To turn the power off, press the z/ON button again. The STANDBY
When the mains lead is connected to the AC outlet, the unit will
respond to commands from the remote control.
Direct start function
If the following buttons are pressed when the unit is in standby, the
unit turns on automatically and the selected function is set.
i, TAPE a, TUNER/BAND
Selecting the function
Press the FUNCTION button to select the desired function. Each time
the button is pressed, the display changes as follows:
READING (CD) v FM v AM v TAPE v VIDEO v
READING (CD) v . . .
The function is automatically selected when CD play or tape playback
is started or when the TUNER/BAND button on the remote control has
been pressed (except during recording).
When the function selection is changed, CD play or tape play-
back is automatically stopped.
(Main unit only)
4. Turn the VOLUME control to set the "minutes".
5. Press the MEMORY button. The clock starts.
The time can be set accurately by pressing the MEMORY but-
ton when a time signal is heard.
To display the clock during operation, press the CLOCK/TIMER
button briefly. After a few seconds, the original display returns.
If a power failure occurs or the mains lead is disconnected, when
re-connect the power, the clock display blinks. Reset the time
Changing the clock to the 24-hour display (Using the main unit)
1. Press the z/ON button to turn the power off and present time
2. While clock is displaying, press the n button and hold it, then press
the FUNCTION button.
Example: PM 1:00 v 13:00
To return the original setting, repeat steps above.
Adjusting the volume
Turn the VOLUME control, or press the VOLUME + or – button on the
remote control. The volume level appears by numbers (VOL MIN ~
VOL MAX) on the display.
Bass expander system (Using Remote only)
Press the BASS button on the remote control to enhance the bass sound
"BASS ON" appears about 3 seconds then disappears. "
Press the BASS button again, "BASS OFF" appears briefly and
Selecting the sound mode
Press the SOUND PRESET button (or SOUND button on the remote
control) to select the sound mode matching the music to be listened to.
POP: Pops, etc.
CLASSIC: Classical music, etc.
ROCK: Rock music, etc.
JAZZ: Jazz, etc.
WHAT TO DO IF ...
If the operation of the unit or display is not normal,
1. Disconnect the mains lead.
2. Re-connect the power, the unit is in standby.
3. While pressing the SOUND PRESET button on the main unit, press
MEMORY button at the same time within 5 seconds.
