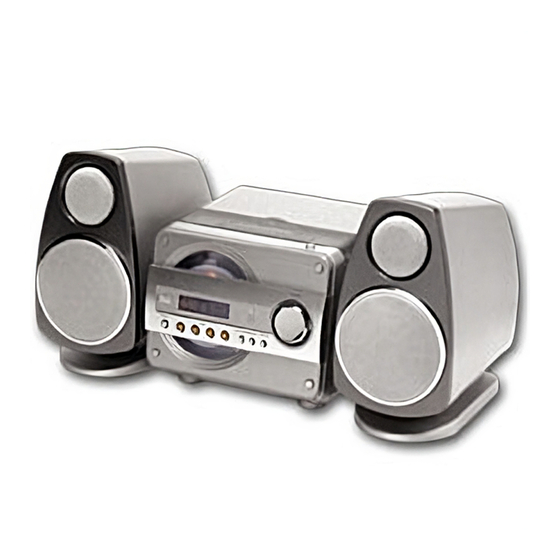

Sanyo DC-MCR60 Service Manual

Micro component system
Hide thumbs

Advertisement

Service Manual
Contents
Laser beam safety precaution ........................................... 1
Tape adjustments ............................................................. 1
Tuner adjustments ............................................................ 2
CD pick-up maintenance ................................................... 2
Exploded view ................................................................... 3
Parts list ............................................................................ 4
IC block diagram & description ......................................... 8
LCD display ....................................................................... 16
Wiring connection ............................................................. 17
Schematic diagram
(CD & SYSCON) CD Section ......................................... 18
SYSCON Section ............................... 20
This service manual consists of "DC-MCR60U/XE" (Main unit : 129 683 01) and
"SX-MCR60/XE" (Speaker system : 165 097 03).
Micro Component System
Wiring diagram
FILE NO.
DC-MCR60
PRODUCT CODE No.
129 684 01
(FRONT) ........................................................................ 24
(DECK) ........................................................................... 26
(AMPLIFIER) .................................................................. 28
(TUNER) ........................................................................ 30
(CD & SYSCON) ........................................................... 22
(FRONT) ....................................................................... 25
(DECK) .......................................................................... 27
(AMPLIFIER & TUNER) ................................................ 32
(PRIMARY POWER SUPPLY) ...................................... 34
(SECONDARY POWER SUPPLY) ............................... 34
(SWITCH) ...................................................................... 34
REFERENCE No.
(XE)
SM
5810499
