FM outdoor aerial
FM indoor aerial
EXT. ANT
FM 75Ω
RIGHT
LEFT
+
+
SPEAKERS
PHONES
(6Ω MIN.)
Note:
-
Do not connect the mains lead to an AC outlet until all connec-
tions have been made.
-
The system is not completely disconnected from the mains when
the z/ON button is set to the z position.
Speakers
Connect the connector of the left speaker lead to the "L" SPEAKERS
socket and the connector of the right speaker lead to the "R" socket.
If you have difficulty inserting the speaker lead connector, turn it over
and reinsert it.
Connect the black speaker wire to the black terminal – and the other
wire to the red terminal +.
Aerials
FM aerial
The FM indoor aerial is sufficient to receive most local FM broadcasts
and should be connected to the FM 75Ω terminal. Extend the aerial
wire as straight as possible and, while listening to the sound from the
system, secure it in a position which yields minimal distortion and
noise.
In fringe areas, or where reception is distorted or noisy, an FM outdoor
aerial (not supplied) should be connected instead of the simple indoor
aerial. Consult your dealer.
AM Loop aerial
Assemble the loop aerial as shown in figure.

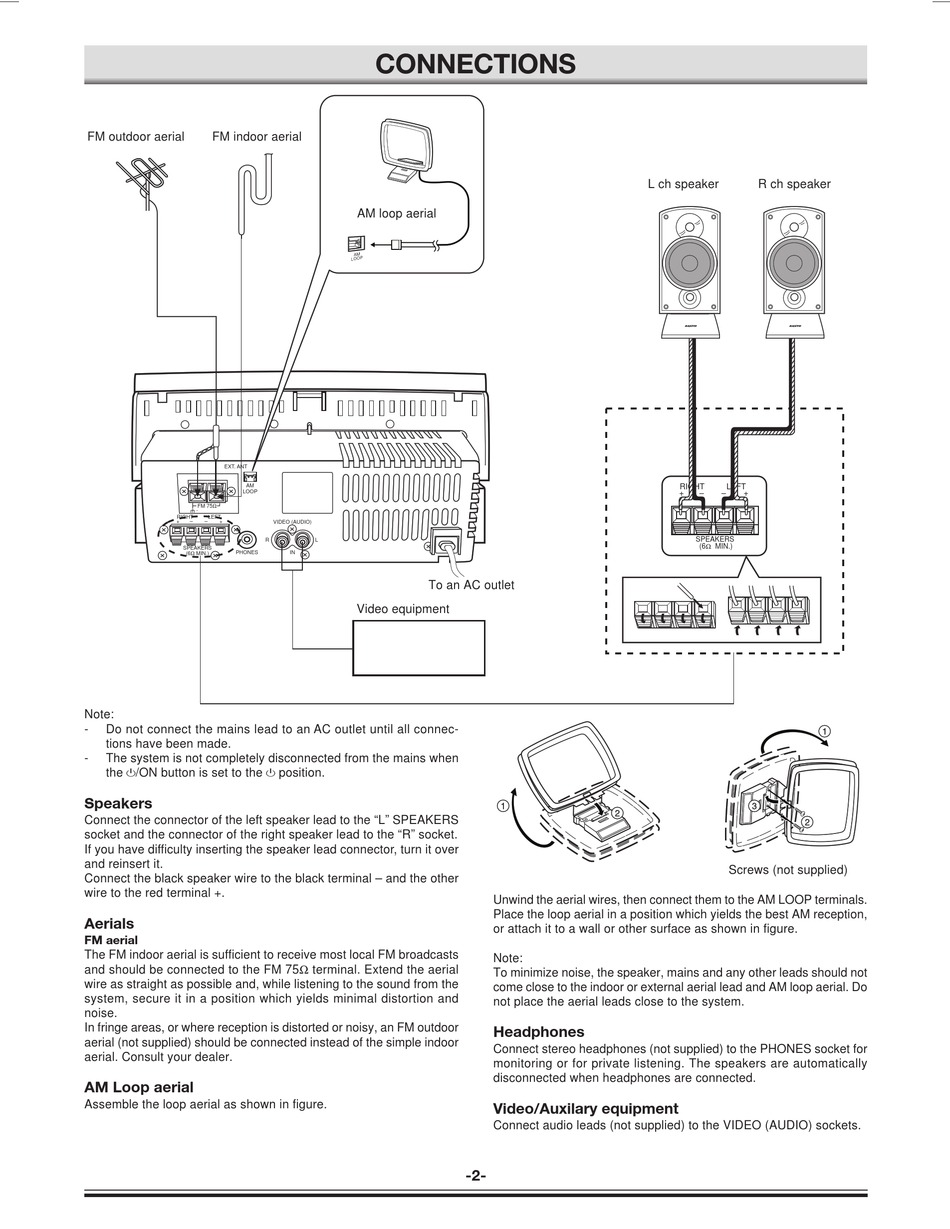

CONNECTIONS
AM loop aerial
AM
LOOP
VIDEO (AUDIO)
R
L
IN
Video equipment
To an AC outlet
Unwind the aerial wires, then connect them to the AM LOOP terminals.
Place the loop aerial in a position which yields the best AM reception,
or attach it to a wall or other surface as shown in figure.
Note:
To minimize noise, the speaker, mains and any other leads should not
come close to the indoor or external aerial lead and AM loop aerial. Do
not place the aerial leads close to the system.
Headphones
Connect stereo headphones (not supplied) to the PHONES socket for
monitoring or for private listening. The speakers are automatically
disconnected when headphones are connected.
Video/Auxilary equipment
Connect audio leads (not supplied) to the VIDEO (AUDIO) sockets.
-2-
L ch speaker
R ch speaker
RIGHT
LEFT
+
+
SPEAKERS
(6Ω MIN.)
Screws (not supplied)
