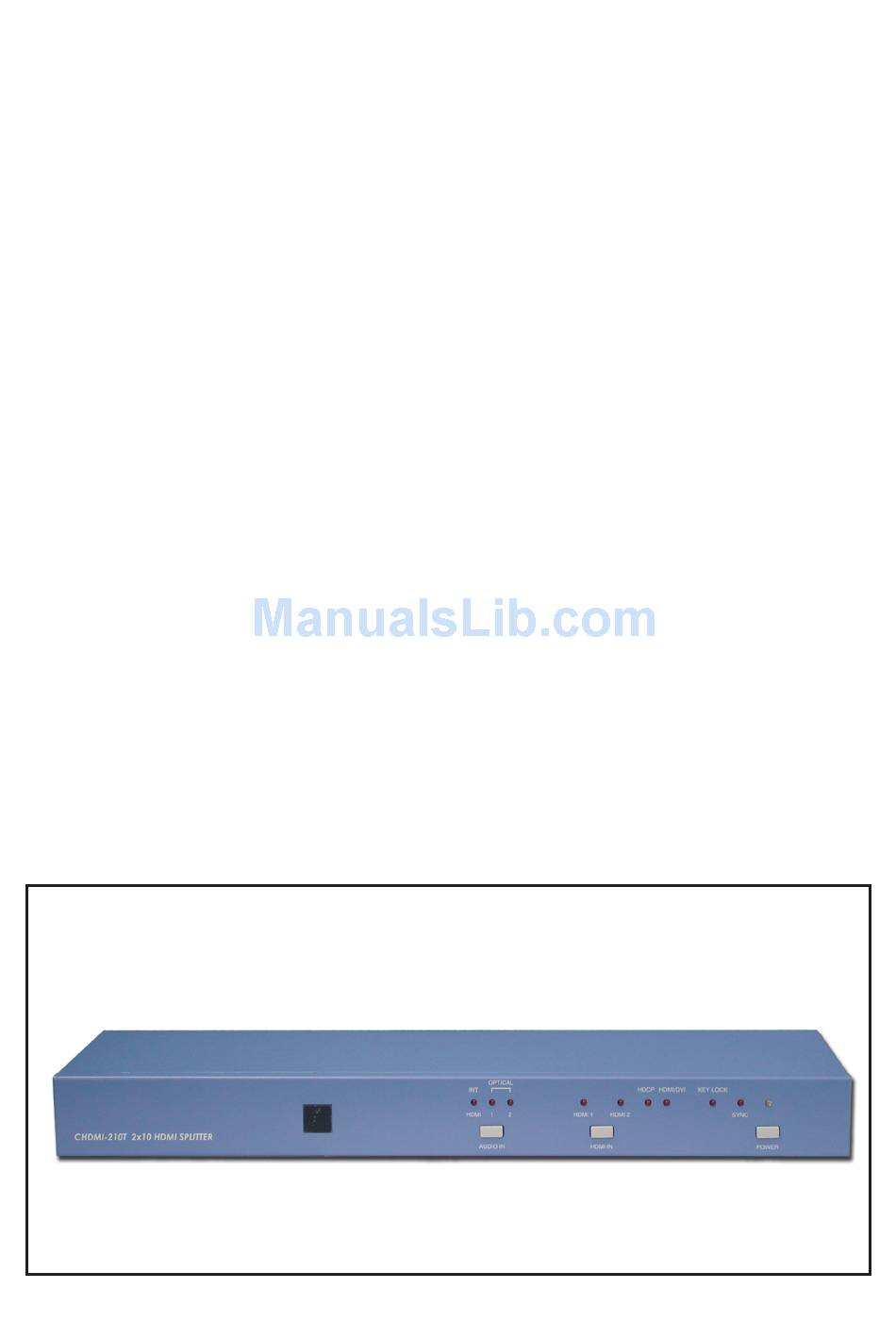

- Page 1 2x10 HDMI Splitter Operation Manual CHDMI-210T...
-
Page 2: Operation Controls And Functions

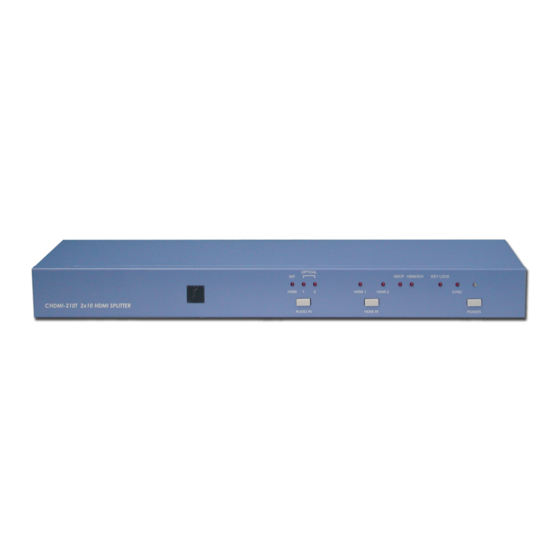

1. Introduction Cypress CHDMI-210T is a high performance 2 input-10 output HDMI splitter with separate optical audio and remote control. It allows you to connect up to 2 HDMI source and 10 HDMI displays. The 10 HDMI outputs are identical. - Page 3 Connect each of the output ports to the HDMI display. When more than one output connected, the HDMI outputs play identical audio/video signal simultaneously. 7. Power: Plug the 5V DC power supply into the CHDMI-210T and connect the adaptor to AC wall outlet. 4. Remote Control 1. POWER: Press the button to turn on/off the unit.
-
Page 4: Specifications
5. Specifications - Frequency bandwidth: 1.65Gbps(single link) - Inputs: - 2x HDMI female ports (Type A connector) - 2x Optical audio input - Output: - 10 x HDMI female port (signal link) - 2 x Optical audio output - Power: 5VDC universal power supply 6.
