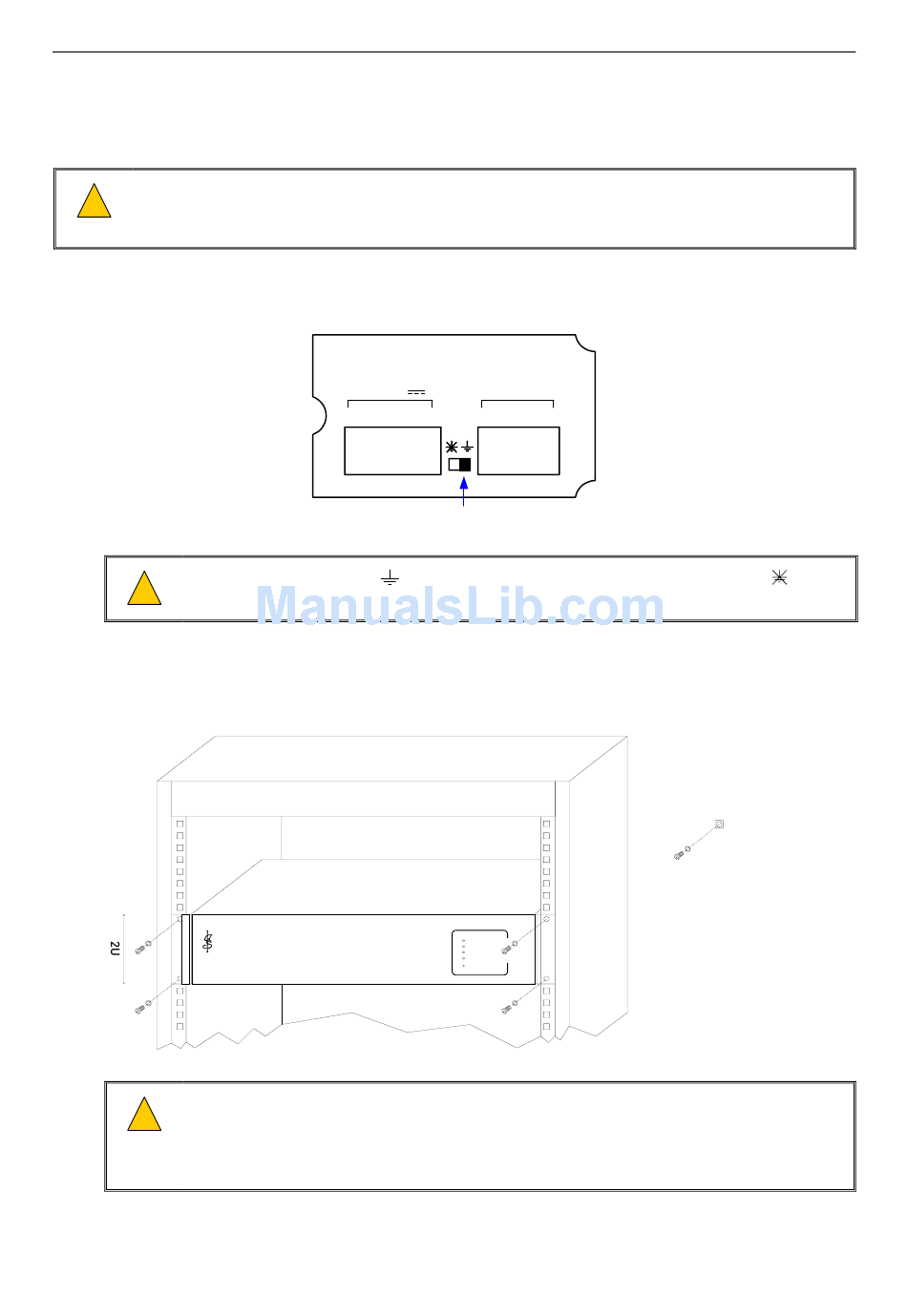

Recommended Installation Procedure
Please read and observe the instructions and guidelines in Section "Safety and Precautions" (page 21)
!
!
prior to installation. Failure to follow these instructions and guidelines may cause personal injury and/or
damage to the equipment.
1.
If installing a VIPET fitted with VIPET-PSU-24V PSU with Earth Lift switch, ensure that the Earth Lift
switch is set to the correct position.
Normally set to grounded
!
!
ground battery supply is used.
2.
Fit the VIPET unit to a 19-inch standard equipment rack on supporting rails, and secure the unit in
position using the fixing screws.
VIPET
•
Ensure that there is at least 1U of ventilated space between the unit and any source of heat
!
!
(e.g. V400 amplifier mainframes).
•
The rail supporting the right side of the VIPET (viewed from the front) must not obstruct the
ventilation holes on the unit's bottom side.
VIPET - Hardware Installation and Maintenance Guide
IN 18-40V
DC 1
DC 2
-
-
+
+
position. It must only be set to ground-lift position
U-0582-0512.doc – Issue: 05 complete, approved
OUT
AUX 1
AUX 2
-
-
+
+
EARTH LIFT
Status Monitor
power
processor
system fault
fault
Page 8 of 24
if a +ve
M6 PAN HEAD POZIDRIV SCREW
M6 PLAIN WASHER
M6 CAGE NUT
