Connections

Refer to Figure 2 (page 5).

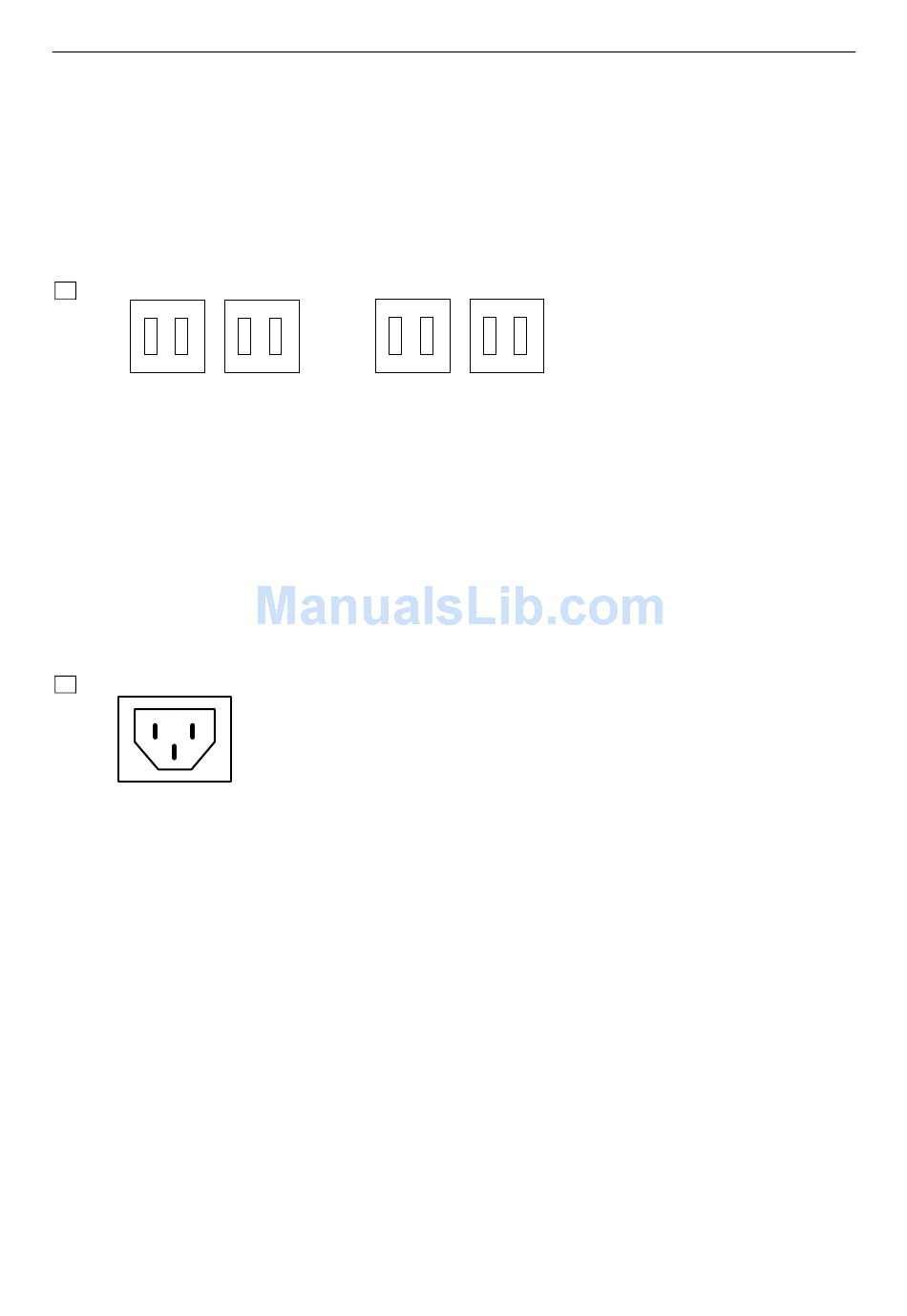

VIPET-PSU-24V
1
DC 1
-
+
•
2-way pluggable female Wago cage clamp
•
DC1 and DC2
The PSU accepts the nominal 24V DC from the ASL PA/VA rack system battery packs, for
applications that require sustained battery backup.
•
AUX1 and AUX2
Auxiliary 12V DC output. (Available only on original 24V VIPET version.)
VIPET-PSU-MAINS
4
•
230V AC Power Supply Input (IEC320 socket)
•
VIPET-MAINS-FILTER is required for EMC compliance and for protection voltage against surges,
and it should be connected as shown in Figure 3.
•
VIPET-MAINS-FILTER must only be used to power VIPET units, which can be directly connected
to the filter, or through a UPS unit if a UPS is required for the VIPET in this system.
VIPET - Hardware Installation and Maintenance Guide
AUX 1
DC 2
- -
+
U-0582-0512.doc – Issue: 05 complete, approved
AUX 2
-
+ +
Page 12 of 24
