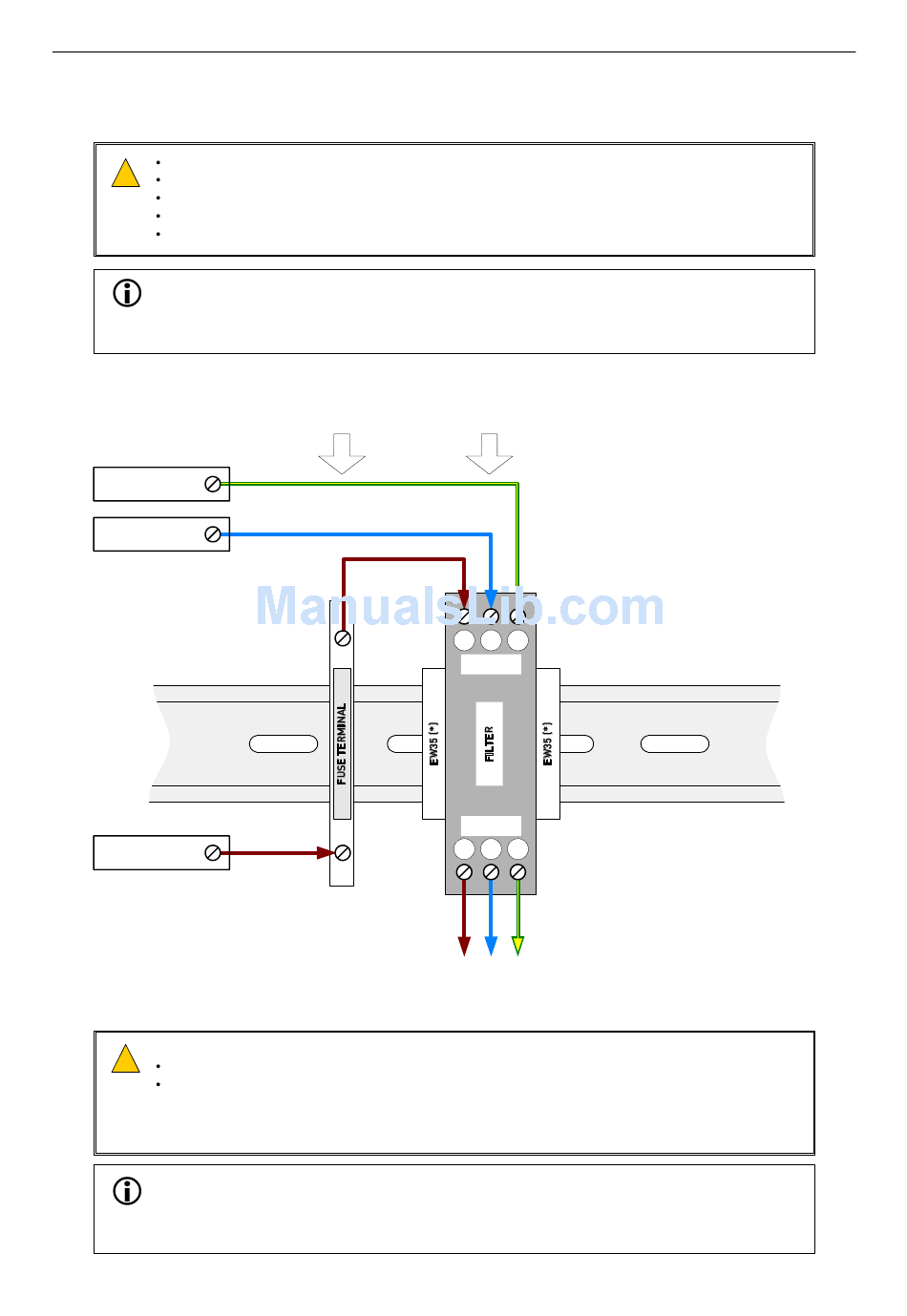

Figure 3 VIPET-PSU-MAINS Connection Diagram
The VIPET-MAINS-FILTER is to be mounted on a DIN rail within the main equipment rack.
! !
The FUSE TERMINAL is to be mounted as close to the VIPET-MAINS-FILTER as possible.
The position is dependent on specific design, cable entry direction etc.
Normal standard mains cabling installation. Current rating to suit particular installation.
Cable ends to be fitted with suitable bootlace ferrules.
The VIPET-MAINS-FILTER includes:
1 x FILTER
1 x WSI6 FUSE TERMINAL WITH 1 x T1A FUSE
2 x EW35 TERMINALS
EARTH BAR
MAINS 'N'
DIN RAIL
MAINS 'L'
Filter output can only be used to power VIPET(s):
! !
Directly connected, or
Connected via UPS. UPS to only power VIPET(s).
Number of VIPETs limited by the fuse in FUSE TERMINAL. Allow 1A per VIPET.
Maximum of 5 VIPETs to be powered through any one filter, whether they are connected directly to the filter,
through number of UPS units, or combination of the two.
HARMONISED COLOURS:
L = LIVE = BROWN
N = NEUTRAL = BLUE
E = EARTH (SYSTEM ELECTRICAL SAFETY EARTH) = GREEN/YELLOW
VIPET - Hardware Installation and Maintenance Guide
FUSE TERMINAL
WSI6
FUSE: T1A - T5A (1A PER VIPET)
LOAD
LINE
TO UPS UNIT(S) WHICH POWERS THE VIPET(S)
U-0582-0512.doc – Issue: 05 complete, approved
FILTER
(*) EW35 TERMINAL TO FIX
FILTER IN PLACE
L N E
LINE
LOAD
L N E
TO VIPET(S)
OR
