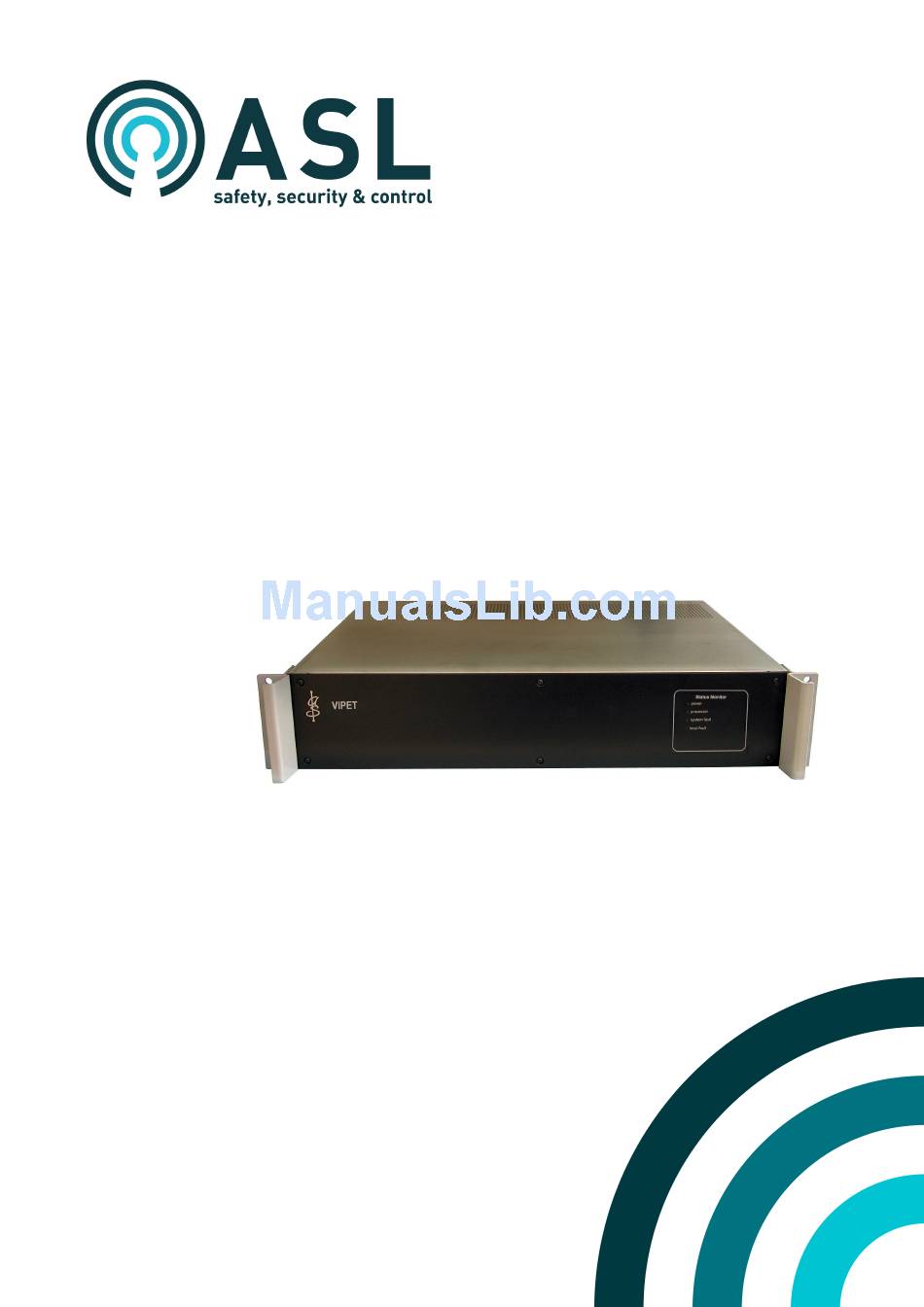

- Page 1 VIPET IP Audio Controller Hardware Installation and Maintenance Guide ASL Document Ref.: U-0582-0512.doc Issue: 05 complete, approved - Date: 10/02/10 Part Number: M0582_17...
-
Page 2: Table Of Contents
Safety and Precautions..........................21 Additional User Documentation: 1. VIPET Product Description (ASL Document Ref: U-0582-0511). 2. VIPET-AUDIO-4/8 & BOB4/08 Product Manual (ASL Document Ref: U-0582-0513). 3. Above documents and additional reference information are available from the ASL website: www.asl-control.co.uk Copyright © 2010 Application Solutions (Safety and Security) Limited... -
Page 3: General Information
Accessory........................ Wall mounting power adapter supplied Mounting ............External to VIPET / Purpose designed 1U 19” rack mounting shelf provided One of the RS232 ports can be set to RS485 by internal link. By default, it is set to RS232. - Page 4 Causes an instant VIPET power-down. It is recommended that the VIPET be turned off using one of the power buttons before power is removed from the VIPET, or if the RS232 connection to the ASL Router is to be removed.
-
Page 5: Rear Panel Connectors And Controls
PSU1 and PSU2 power supply connector Earth Lift switch. (Only on original 24V VIPET version.) AUX1 and AUX2 auxiliary 12V DC output. (Only on original 24V VIPET version.) VIPET-PSU-MAINS (Mains Power Supply Option) 230V AC Power Supply Input (IEC320 socket) U-0582-0512.doc –... - Page 6 VIPET-AUDIO-4/8 Optional Audio I/O: • VIPET-AUDIO-4: Audio Card with 4 inputs and 4 outputs. 15-WD male connector • VIPET-AUDIO-8: Audio Card with 8 inputs and 8 outputs. 44-WHD female connector On the 8x8 Audio Card a second connector is available (15-WHD female) but it is not used.
-
Page 7: Installation
• A soldering iron. • A standard 19-inch rack wired and configured with equipment to be controlled by the VIPET (e.g. DSP Router), cabling for power supply, wiring for signal monitoring, RS232 and RS485 cabling and/or other cabling as appropriate. - Page 8 It must only be set to ground-lift position if a +ve ground battery supply is used. Fit the VIPET unit to a 19-inch standard equipment rack on supporting rails, and secure the unit in position using the fixing screws. M6 PAN HEAD POZIDRIV SCREW...
- Page 9 Remove 3 screws at the bottom of the unit. These screws will be used to fix the unit to the shelf. The shelf which is supplied for mounting the VIPET-SERIAL-4 interface supports two units. The screws to be removed depend on the unit’s position on the shelf.
- Page 10 VIPET-RS485-4 If using the BOB04 or BOB08, install the unit and connect the unit as described in the VIPET-AUDIO- 4/8 & BOB04/08 Product Manual. Connect the wiring for control ports, signal monitoring, RS485, and RS232 cabling to the rear panel connectors according to the application.
- Page 11 The mains powered VIPET requires a mains filter for EMC compliance, and for protection against voltage surges. The VIPET mains filter needs to be ordered as part of the VIPET system, as ASL item VIPET- MAINS-FILTER, and should be installed as shown in Figure 3.
-
Page 12: Connections
• VIPET-MAINS-FILTER must only be used to power VIPET units, which can be directly connected to the filter, or through a UPS unit if a UPS is required for the VIPET in this system. U-0582-0512.doc – Issue: 05 complete, approved... - Page 13 Figure 3 VIPET-PSU-MAINS Connection Diagram The VIPET-MAINS-FILTER is to be mounted on a DIN rail within the main equipment rack. The FUSE TERMINAL is to be mounted as close to the VIPET-MAINS-FILTER as possible. The position is dependent on specific design, cable entry direction etc.
-
Page 14: Control Port
VIPET - Hardware Installation and Maintenance Guide Control Port 25-Way D female connector Pin No. Signal Normally closed contact from System Fault relay 1 RL1-NC RL1-NC Changeover contact from System Fault relay 1 RL1-C Normally open contact from System Fault relay 1... -
Page 15: Usb Ports
: refer to the VIPET-AUDIO-4/8 & BOB04/08 Product Manual. USB Ports • 4 x USB type A socket • USB port usage by a VIPET application is configured within the USB 2 USB 4 VIPET software. It is important that connection is made to the correct port. - Page 16 Clear To Send Negative Not Connected Clear To Send Positive Not Connected Once VIPET-SERIAL-4 is set-up it cannot be connected to a different USB port on the VIPET rear panel. U-0582-0512.doc – Issue: 05 complete, approved Page 16 of 24...
-
Page 17: Fault Finding
VIPET - Hardware Installation and Maintenance Guide Fault Finding The following alarms are reported at a connected ASL Router. Table 1 VIPET Alarms on ASL Router Fault Code Reported and Logged Description Suggested Action VPT: LAN <nn> LAN fault Check the network cabling. -
Page 18: Maintenance
VIPET - Hardware Installation and Maintenance Guide Maintenance The VIPET HW should be tested with the PA/VA system for correct operation, at maximum intervals of three months and as part of the system maintenance schedule. For reference Figure 4 shows the VIPET internal components and possible settings. - Page 19 To replace the battery: Please read and observe the “7 Safety and Precautions” section of this manual. If the VIPET is still powered up, shut it down by briefly pressing the POWER button (< 1 second) on the rear panel.
-
Page 20: Mechanical Dimensions
VIPET - Hardware Installation and Maintenance Guide Mechanical Dimensions Figure 6 Mechanical Dimensions 368.36mm 325.32mm 437mm 484mm Status Monitor VIPET power processor 88mm system fault fault U-0582-0512.doc – Issue: 05 complete, approved Page 20 of 24... -
Page 21: Safety And Precautions
VIPET - Hardware Installation and Maintenance Guide Safety and Precautions Always replace blown fuses with the correct type and rating. Environmental Unpacking and Handling Always ensure adequate ventilation is provided for the equipment and do not obstruct ventilation holes. The equipment should be unpacked and inspected immediately on receipt. - Page 22 VIPET - Hardware Installation and Maintenance Guide Notes U-0582-0512.doc – Issue: 05 complete, approved Page 22 of 24...
-
Page 23: Application Solutions (Safety And Security) Limited
VIPET - Hardware Installation and Maintenance Guide Service and Warranty Name and Address of Authorised Distributor: This product carries a full warranty. For full details of warranty and service agreements, please contact the Authorised Distributor who supplied the product to you.
