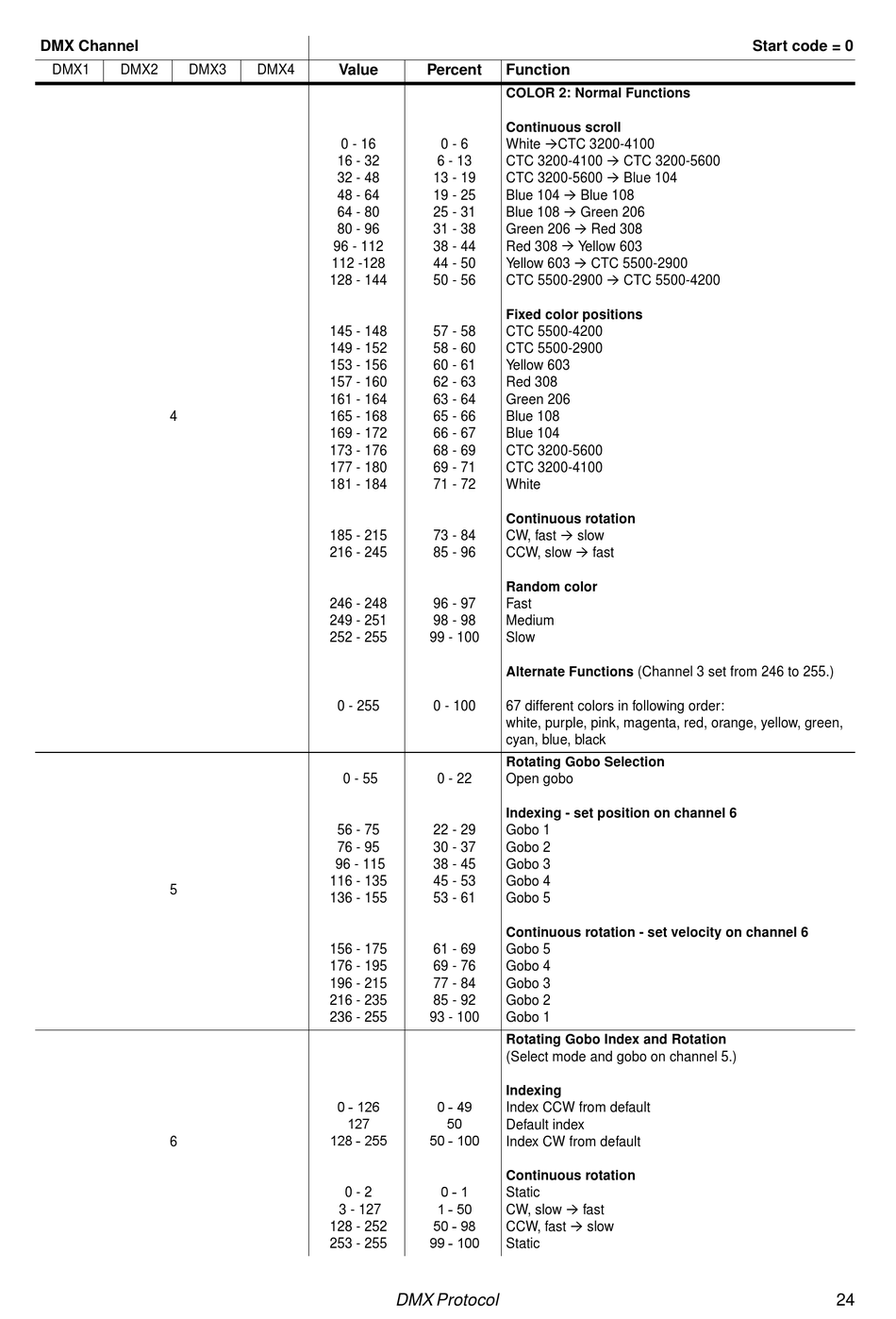

Martin RoboScan Pro 918 User Manual page 24

DMX Channel
DMX1 DMX2 DMX3
4
5
6
Value
DMX4
0 - 16
16 - 32
32 - 48
48 - 64
64 - 80
80 - 96
96 - 112
112 -128
128 - 144
145 - 148
149 - 152
153 - 156
157 - 160
161 - 164
165 - 168
169 - 172
173 - 176
177 - 180
181 - 184
185 - 215
216 - 245
246 - 248
249 - 251
252 - 255
0 - 255
0 - 55
56 - 75
76 - 95
96 - 115
116 - 135
136 - 155
156 - 175
176 - 195
196 - 215
216 - 235
236 - 255
íýðýìëç
ìëæ
ìëåýðýëèè
0 - 2
3 - 127
128 - 252
253 - 255
DMX Protocol
Percent Function
COLOR 2: Normal Functions
Continuous scroll
White ÆCTC 3200-4100
0 - 6
CTC 3200-4100 Æ CTC 3200-5600
6 - 13
CTC 3200-5600 Æ Blue 104
13 - 19
Blue 104 Æ Blue 108
19 - 25
Blue 108 Æ Green 206
25 - 31
Green 206 Æ Red 308
31 - 38
Red 308 Æ Yellow 603
38 - 44
Yellow 603 Æ CTC 5500-2900
44 - 50
CTC 5500-2900 Æ CTC 5500-4200
50 - 56
Fixed color positions
57 - 58 CTC 5500-4200
58 - 60 CTC 5500-2900
60 - 61 Yellow 603
62 - 63 Red 308
63 - 64 Green 206
65 - 66 Blue 108
66 - 67 Blue 104
68 - 69 CTC 3200-5600
69 - 71 CTC 3200-4100
71 - 72 White
Continuous rotation
CW, fast Æ slow
73 - 84
CCW, slow Æ fast
85 - 96
Random color
96 - 97 Fast
98 - 98 Medium
99 - 100 Slow
Alternate Functions (Channel 3 set from 246 to 255.)
0 - 100 67 different colors in following order:
white, purple, pink, magenta, red, orange, yellow, green,
cyan, blue, black
Rotating Gobo Selection
0 - 22 Open gobo
Indexing - set position on channel 6
22 - 29 Gobo 1
30 - 37 Gobo 2
38 - 45 Gobo 3
45 - 53 Gobo 4
53 - 61 Gobo 5
Continuous rotation - set velocity on channel 6
61 - 69 Gobo 5
69 - 76 Gobo 4
77 - 84 Gobo 3
85 - 92 Gobo 2
93 - 100 Gobo 1
Rotating Gobo Index and Rotation
(Select mode and gobo on channel 5.)
Indexing
íýðýéä
Index CCW from default
èí
Default index
èíýðýìíí
Index CW from default
Continuous rotation
íýðýì
Static
ìýðýèíý CW, slow Æ fast
èíýðýäå CCW, fast Æ slow
ääýðýìíí
Static
Start code = 0
