Air Filter Inspection and Replacement

1. Push machine to level surface.
2. Turn off LP cylinder and remove it.
3. Open the engine cover.

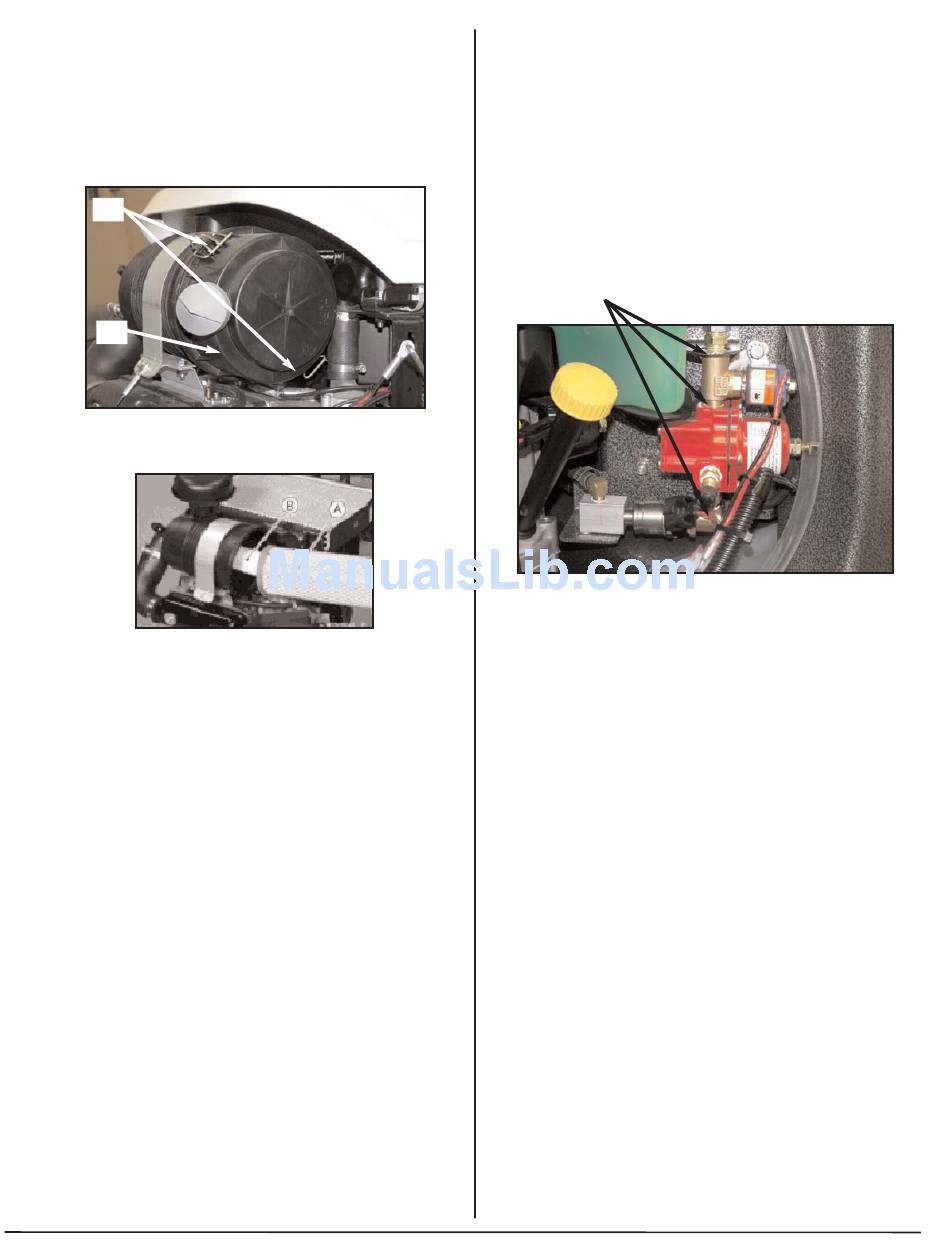

4. Locate the air cleaner housing, unhook the two
clips (A), and remove the cap (B).
(A)
(B)
5. Remove primary filter (A) and secondary filter (B).
CAUTION! Do not wash the air cleaner filters. Do not
oil the air filters. Do not use pressurized air to clean
the air filters.
6. Inspect both primary and secondary air filters. If
necessary, clean primary filter by lightly tapping
and wipe seal ends with a clean cloth. If primary
filter cannot be cleaned, is bent, or damaged, it
must be replaced (Amano Pioneer Eclipse part #
KA110137020). If secondary filter is dirty, do
not attempt to clean it. Replace it with a new filter
(Amano Pioneer Eclipse part # KA110137019).
7. Clean the housing with detergent and water and
dry thoroughly.
8. Check the housing for cracks or other damage.
The housing must seal well and permit only filtered
air to the carburetor.
9. Slide the secondary and primary filters into place
in the air cleaner housing.
10. Install the cap and fasten the two clips.

Inspect Fuel Hose and Connections

1. Push machine to level surface.
2. Turn off LP cylinder and remove it.
3. Remove the engine cover.
4. Inspect hoses for abrasions and other signs of
wear. Replace all worn or damaged hoses.
5. Check for gas leaks by spreading a soapy water
solution around all connections while the LP
cylinder is reconnected and the service valve is
turned ON.
Check for Leaks
6. If a leak is detected, turn off the LP cylinder. If the
leak is in a hose, replace it. If the leak is at a
fitting, loosen and clean it. Apply pipe-sealing
compound and re-tighten it.
7. Recheck for leaks using a soapy water solution. If
leaks persist at fittings, replace them and recheck
with a soapy water solution once more.
22
