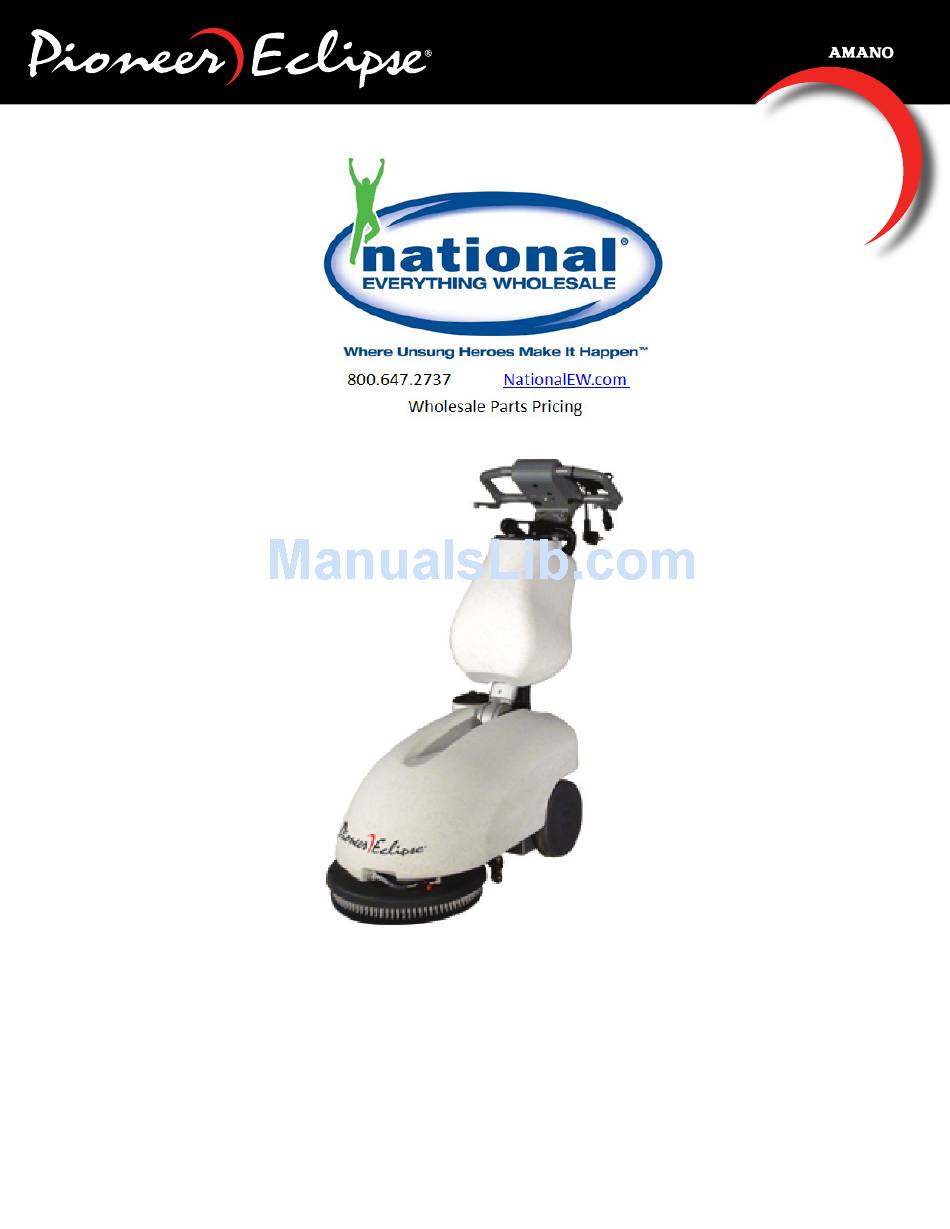

  • Page 1 A company of the Group A Company of the Group Operation Manual PE300AS...
  • Page 2 The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or the supply of accessories, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.

  • Page 3: Table Of Contents

    CONTENTS ON CONSIGNMENT OF THE MACHINE .................................. 4 SERIAL NUMBER PLATE ...................................... 4 INTRODUCTION ........................................4 INTENDED USE........................................4 TECHNICAL DESCRIPTION ....................................5 SYMBOLS USED ON THE MACHINE ..................................6 GENERAL SAFETY REGULATIONS..................................7 MACHINE PREPARATION...................................... 8 1. HANDLING THE PACKAGED MACHINE ................................8 2.

  • Page 4: On Consignment Of The Machine

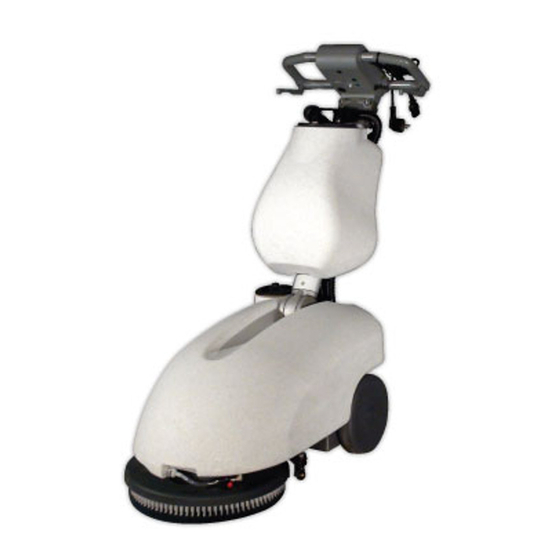

    Introduction PE300AS is a floor scrubbing machine which, by means of the mechanical action of the rotating brush and the chemical action of a water/detergent solution, can clean any type of flooring. As it advances, it also collects any removed dirt as well as the detergent solution not absorbed by the floor.

  • Page 5: Technical Description

    TECHNICAL DESCRIPTION PE300AS Rated power Working width Width of rear squeegee Work capacity 1050 Water consumption ∅ mm Brushes (diameter or length) Brush rotations Pressure on the brushes Brush motor V / W 12 / 250 Type of advance semi-aut.

  • Page 6: Symbols Used On The Machine

    SYMBOLS USED ON THE MACHINE Tap symbol Used to indicate the solenoid valve switch. Brush symbol Used to indicate the brush motor switch. Symbol denoting suction motor Used to indicate the suction motor switch. Battery symbol Battery charge level indicator Indicates the maximum temperature of the detergent solution.

  • Page 7: General Safety Regulations

    GENERAL SAFETY REGULATIONS The regulations illustrated below must be carefully followed in order to avoid harm to the operator and damage to the machine. • Read the labels on the machine carefully. Do not cover them for any reason and replace them immediately if they become damaged. •...

  • Page 8: Machine Preparation

    PE300AS is easy to transport even by car. Exploiting the full flexibility of the handlebars, you can fold it up (see the handlebars fixing section) and, with the help of a colleague, place it in the boot of the car without disassembling any components.

  • Page 9: Battery Maintenance And Disposal

    MACHINE PREPARATION 5. BATTERY MAINTENANCE AND DISPOSAL For maintenance and recharging, comply with the instructions provided by the battery manufacturer. Particular attention must be paid when choosing the battery charger, if not supplied, since there are different kinds according to the type and capacity of the battery. When the battery reaches the end of its working life, it must be disconnected by expert, trained personnel, then lifted (using the grips and suitable lifting devices) to remove it from the battery compartment.

  • Page 10: Connecting The Connector

    MACHINE PREPARATION WARNING: you are advised to only use airtight batteries in order to avoid the leakage of acids! WARNING: you are advised to have the electric connections made by a qualified, APEC-trained technician. WARNING: you are advised to always wear protective gloves in order to avoid the risk of serious injury to your hands.

  • Page 11: Battery Indicator

    MACHINE PREPARATION WARNING: The machine is equipped with an automatic system that disconnects the power supply from the electrical system while the batteries are being recharged. WARNING: In order not to cause permanent damage to the batteries, it is essential to avoid their complete discharge: arrange the recharge within a few minutes of the switching on of the flashing "discharged batteries"...

  • Page 12: Fixing The Handlebars

    MACHINE PREPARATION 11. FIXING THE HANDLEBARS For packaging purposes the handlebars are supplied folded; they must now be put in the working position. Proceed as follows: Raise the handlebars by pulling the lever - indicated by the arrow – upwards. Place the machine in the working position.

  • Page 13: Recovery Tank

    MACHINE PREPARATION ATTENTION: Always use detergents whose manufacturer's label indicates their suitability for scrubbing machines. Do not use acid or alkaline products or solvents without this indication. Always use low foam detergent. To avoid the production of foam, before starting to clean, put a minimum quantity of antifoam liquid into the recovery tank.

  • Page 14: Work

    WORK 1. PREPARING TO WORK Before fitting the tanks, it is necessary to carry out certain operations: Open the two rear hinges of the battery compartment. Connect the connector to the batteries. Close the battery compartment. Position the recovery tank on the handle bars, and connect the two tubes. Carry out the operations to prepare the machine.

  • Page 15: Forward Movements

    WORK 3. FORWARD MOVEMENTS The traction of these machines is obtained by means of the brush, which, by working slightly inclined, is able to drag the machine forwards. WARNING: When making even brief reverse movements, verify that the squeegee is raised.

  • Page 16: At The End Of The Work

    AT THE END OF THE WORK At the end of the work, and before carrying out any type of maintenance, perform the following operations: Turn off the solenoid valve switch. (3) Raise the squeegee by means of the rear handle. Turn off the suction switch.

  • Page 17: Daily Maintenance

    DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE 1. CLEANING THE RECOVERY TANK Remove the tubes attached to the connectors of the recovery tank cap. Remove the cap and empty the tank. Clean the filter under running water. Rinse the tank and clean with a jet of water. Re-assemble everything.

  • Page 18: Replacing The Squeegee Rubbers

    DAILY MAINTENANCE 3. REPLACING THE SQUEEGEE RUBBERS Verify that the state of wear and tear of the squeegee rubbers and, if necessary, replace them. To replace them you must: Raise the squeegee. Remove the two knobs. Disassemble the squeegee from its support. Remove the tube from the squeegee nozzle so the squeegee can be removed.

  • Page 19: Disassembling The Brush

    DAILY MAINTENANCE 4. DISASSEMBLING THE BRUSH Raise the squeegee. Raise the machine, using the handlebars as a lever. With the base up, activate the brush command with impulses. The brush will be automatically released. WARNING: During this operation, verify that there are no people or objects near the brush.

  • Page 20: Periodic Maintenance

    PERIODIC MAINTENANCE 1. CLEANING THE SQUEEGEE TUBE Periodically, or whenever suction seems to be unsatisfactory, check the squeegee tube is not obstructed. To clean it, proceed as follows: Remove the tube from the sleeve on the squeegee. Remove the other end from the recovery tank. Wash the inside of the tube with a water jet introduced from the side where it is connected to the tank.

  • Page 21: Troubleshooting

    TROUBLESHOOTING 1. ELECTRICAL SYSTEM SAFETY The machine is fitted with self-restoring safety fuses located in the electric system *beneath the solution tank) that interrupt the power supply to the brush and suction motors when the machine exceeds the pre-determined load. To restore the power supply to the motor, switch off the machine and wait for the fuses to cool down (about 40 seconds).

  • Page 22: Choosing And Using The Brushes

    Fitted with a series of groups of bristles that allow the abrasive floor pad to be held and dragged while working. TABLE FOR CHOOSING THE BRUSHES Machine No. of Code Type of bristles ∅ Bristles ∅ Brush Notes brushes 421701 422213 Pad holder – anchor PE300AS 422001 Pad holder – bristles...

  • Page 23: Machine Idisposalc

    MACHINE DISPOSAL To dispose of the machine, take it to a demolition centre or an authorised collection centre. Before scrapping the machine, it is necessary to remove and separate the following materials and then send them to the appropriate collection centres, in accordance with the currently effective environmental hygiene regulations: •...
  • Page 24 CONTENTS PARTS LIST......................................1. Single Brush Base Assembly ................................2. Frame Assembly.................................... 3. Tanks Assembly .................................... 4. Squeegee Assembly ..................................5. Squeegee Control Assembly ................................6. Handle Bar Assembly..................................7. Electronic Control Assembly ................................8 Accessories ....................................9. Battery Charger Assembly……...………………………………………………………………………………………………………………...
  • Page 25 Le descrizioni contenute nella presente pubblicazione non si intendono impegnative. L’azienda pertanto, si riserva il diritto di apportare in qualunque momento, le eventuali modifiche ad organi, dettagli, forniture di accessori, che essa ritiene convenienti per un miglioramento o per qualsiasi esigenza di carattere costruttivo o commerciale. La riproduzione anche parziale dei testi e dei disegni, contenuti nella presente pubblicazione, è...
  • Page 31 10003677 AB GRUPPO TELAIO POS. CODICE QTÀ DESCRIZIONE DENOMINATION DESCRIPTION BENENNUNG DESCRIPCION 212368 BOCCOLA CH15 M6 S=10 OT58 BUSHING BAGUE BUCHSE CASQUILLO 212373 PERNO CENTRAGGIO SERBATOIO BOLZEN PERNO 212412 BOCCOLA D=35 d=10,5 S=15,5 OT58 BUSHING BAGUE BUCHSE CASQUILLO 214124 PIASTRA FISSAGGIO MOTORE PLAQUE PLAQUE BEFESTIGUNGSAUFLAGE...
  • Page 33 10003677 AB GRUPPO TELAIO POS. CODICE QTÀ DESCRIZIONE DENOMINATION DESCRIPTION BENENNUNG DESCRIPCION 421671 CARICABATTERIE SPE CBHD1 12V6A IUUO GEL BATTERY CHARGER CARGHEUR BATTERIE LADEGERATE CARGADOR DE BATERIAS 422078 VITE M6X90 TE UNI5737 DIN931 ZINC SCREW SCHRAUBE TORNILLO 422120 BOCCOLA D=18-13 d=8 S=9,5 OT54 BUSHING BAGUE BUCHSE...

  • Page 50: Limited Warranty

    2) Batteries are warranted by battery manufacturer for (1) year. Call APEC for R/A number. 3) The model PE300AS is warranted to be free from defects in You will need the Engine Serial Number, Machine Serial Number, material and workmanship for a period of one (1) year from date and the Machine Model Number.
  • Page 51 A company of the Grou p Subtitle Title Amano Pioneer Eclipse Corporation 1 Eclipse Rd PO Box 909 Sparta, North Carolina 28675 USA www.pioneer-eclipse.com +1-336-372-8080 1-800-367-3550 Fax 1-336-372-2913 shine on. © 2011 Amano Pioneer Eclipse Corporation We help you shine.™...
