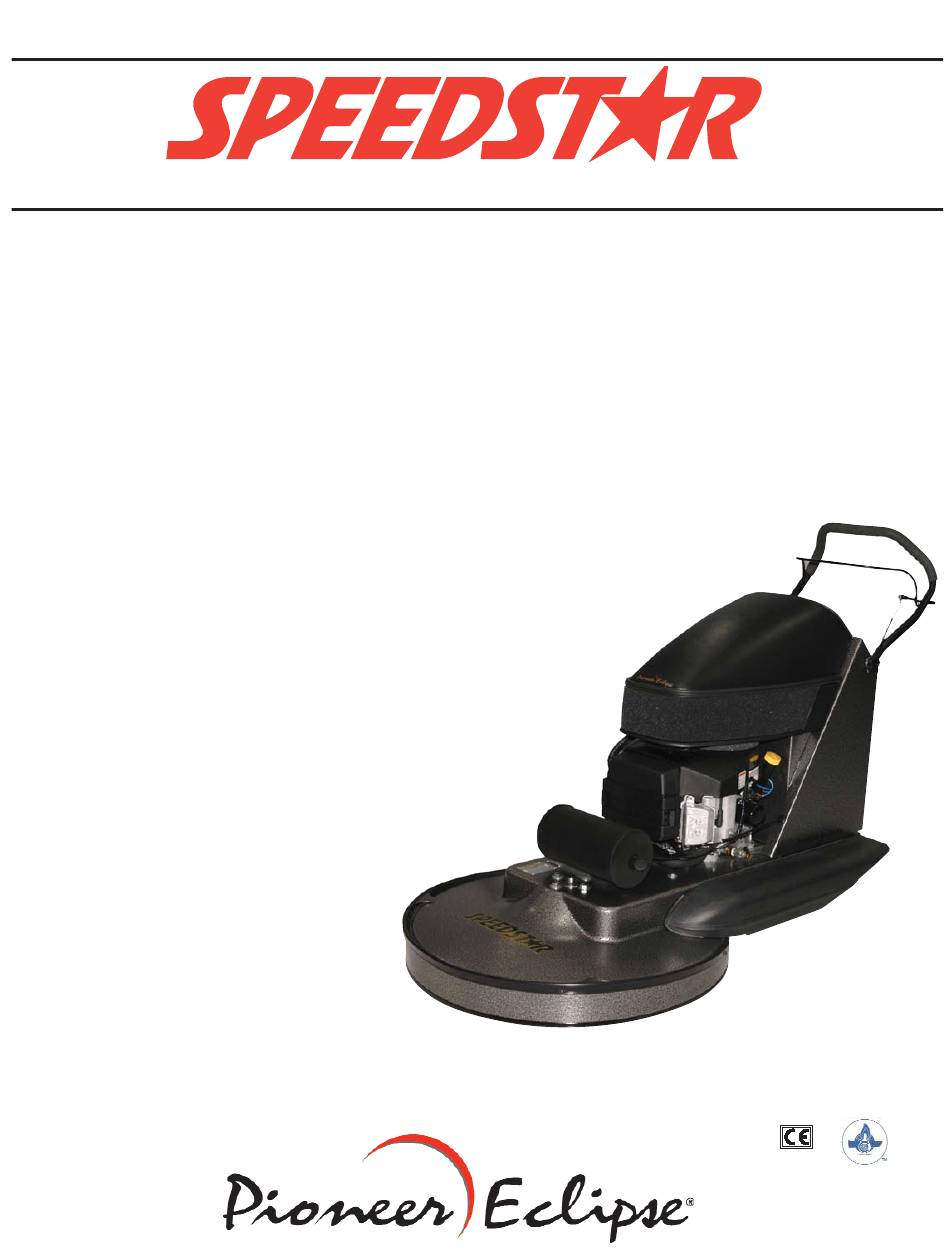

Pioneer Eclipse SPEEDSTAR ST21KWA Operator's Manual

Pioneer Eclipse SPEEDSTAR ST21KWA Operator's Manual

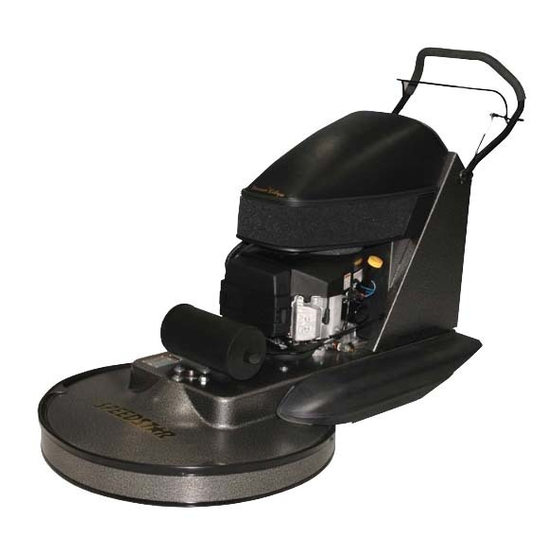

Propane burnisher with vacuum

Advertisement

Failure to read and understand this manual
before operating this machine or performing service on
this machine may result in injury to the operator or
nearby personnel or result in damage to the machine
or nearby property. Each operator must be trained in
the operation of this machine before being allowed to
use it. Contact Amano Pioneer Eclipse Customer
Service at 1-800-367-3550 or 1-336-372-8080 or an
authorized Amano Pioneer Eclipse Distributor to
inquire about training or to request a replacement
manual.
La falta de leer y de entender este manual antes de
usar esta máquina o de realizar servicio en esta
máquina puede dar lugar a lesión al operador o al
personal próximo o a resultado en daño a la máquina
o propiedad próxima. Cada operador debe ser
entrenado en la operación de esta máquina antes de
ser permitido utilizarla. Ponerse en contacto con el
servicio de Amano Pioneer Eclipse 1-800-367-3550 o
1-336-372-8080 o un distribuidor autorizado por
Amano Pioneer Eclipse para investigar sobre el
entrenamiento o para solicitar un manual.
Manquer de lire et de comprendre ce manuel
d'utilisation avant l'utilisation de cette machine ou
avant faire de maintenance sur la machine peut être
résulter en blessure à l'opérateur ou au personnel
proche ou peut endommagé la machine ou la propriété
proche. Chaque utilisateur doit être entraîné dans
l'opération de cette polisseuse avant l'utilisation.
Veuillez contacter le service àpres-vente de Amano
Pioneer Eclipse à 1-800-367-3550 ou 1-336-372-8080
et/ou un distributeur de Amano Pioneer Eclipse pour
vous renseigner concernant l'entraînement ou pour
obtenir un autre manuel d'utilisation.
O p e r a t o r ' s M a n u a l
Propane Burnisher with Vacuum
For Models:
ST21KWA
ST21KWAE
ST24KWA
ST24KWAE
ST28KWA
ST28KWAE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPEEDSTAR ST21KWA and is the answer not in the manual?

Questions and answers

Summary of Contents for Pioneer Eclipse SPEEDSTAR ST21KWA

  • Page 1 Chaque utilisateur doit être entraîné dans l'opération de cette polisseuse avant l'utilisation. Veuillez contacter le service àpres-vente de Amano Pioneer Eclipse à 1-800-367-3550 ou 1-336-372-8080 et/ou un distributeur de Amano Pioneer Eclipse pour vous renseigner concernant l'entraînement ou pour obtenir un autre manuel d'utilisation.
  • Page 2 FOR YOUR SAFETY FOR YOUR SAFETY IF YOU SMELL GAS: Do not store or use gasoline or other 1. Open window. 2. Don't touch electrical switches. flammable vapors and liquids in the 3. Extinguish any open flame. 4. Immediately call your gas vicinity of this or any other appliance.
  • Page 3 Never alter or reconstruct the fuel system. To are occupied by the public,” Amano Pioneer Eclipse do so may be dangerous and will void the suggests usage when occupancy of a given work factory warranty.
  • Page 4 Specifications ST21KWA(E) ST28KWA(E) Pad Size 21” (53,3 cm) Pad Size 28” (71,1 cm) Pad Speed 2000 RPM Pad Speed 1700 RPM Width 23.5” (59,7 cm) Width 30” (76,2 cm) Length (handle up) 48” (122 cm) Length 54” (137 cm) Engine Kawasaki 17 HP Engine Kawasaki 17 HP...
  • Page 6: Table Of Contents

    Contents Propane Machine Safety Purpose ..............1 Refueling and Storage of Fuel Cylinders .
  • Page 8: Propane Machine Safety

    Even though propane powered floor machines located in a well ventilated space. manufactured by Amano Pioneer Eclipse meet the OSHA Time Weighted Average (TWA) standard for...
  • Page 9: Operator-Ear Sound Pressure Level

    Test for Hand-Arm Vibration at the Pressure Level Grip Surface of Hand-Guided Machinery Amano Pioneer Eclipse measures and rates the operator-ear sound pressure level for hand-guided floor Amano Pioneer Eclipse measures and rates the treatment and floor cleaning machines for industrial use.
  • Page 10: Machine Preparation

    Filling the Safe-Fill Fuel Cylinder The machine is also shipped with the battery Amano Pioneer Eclipse uses the 20 lb. capacity disconnected. aluminum safe-fill cylinder which meets the D.O.T. When filling a “dry” burnisher or changing oil, for the 4E240 standards.
  • Page 11: Operating Instructions

    Operating Instructions Starting Instructions NOTE: This burnisher is equipped with the SAFE SENSE emission monitoring system and catalytic 1. Check oil and fuel levels muffler. 2. Check and clean engine air filter. NEVER RUN CONTINUOUSLY FOR MORE Upon starting the engine, the YELLOW SAFE THAN 1 HOUR WITHOUT CLEANING OR SENSE LED light will flash for 3 minutes during a CHANGING ENGINE DUST FILTER.
  • Page 12: Emptying The Dust Bag

    Operating Instructions NOTE: A damaged pad holder rotating at high Transportation speeds may be an extreme hazard if it should come apart. When transporting a propane powered floor burnisher with the fuel cylinder installed, the cylinder should be 4. Pull center from new pad, center pad on pad securely fastened with the service valve closed and the holder and secure with centering device.
  • Page 13: Scheduled Maintenance

    1. Perform daily or after each use. 2. Refer to “General Maintenance Procedures.” 3. These items should be serviced by an authorized Amano Pioneer Eclipse Service Center. 4. Refer to Engine Manufacturer’s Owner’s Manual for recommended replacement. 5. Always enter maintenance performed in Service Log Book.
  • Page 14: General Maintenance Procedure

    Watch for bubbles at the joint with factory preset and should not require any the fuel cylinder service valve turned on modification. Only Amano Pioneer Eclipse authorized and the fuel system pressurized. personnel, trained and certified in propane systems, should modify or adjust the system or its setting.
  • Page 15: Belt Maintenance

    General Maintenance Procedures i. Once oil has completely drained from machine, turn Reinstalling the belt: oil drain valve clockwise to close. 1. Reverse steps 2 - 4 above. Make sure that belt is j. Remove blocks or weights if present and allow properly set in all pulleys.
  • Page 16: Battery Maintenance And Replacement

    If in doubt, contact Amano Pioneer Eclipse 5. Tighten clamp until skirt is secure. Customer Service at 1-800-367-3550 or 6.
  • Page 17: Troubleshooting

    Troubleshooting Guide Symptom Possible Causes 1. Hard to start Opening propane cylinder too quickly (OPEN SLOWLY) Low oil Insufficient vacuum Coil, air gap needs adjusting Spark plug or head bolts loose Blown head gasket 2. Will not start No fuel Low oil Wires broken or disconnected Fuse blown in Safe Sense...
  • Page 18: Machine Drawings And Parts Lists

    Machine Drawings and Parts Lists Safe Fill Cylinder Head Layout...
  • Page 19: Dash Panel

    Dash Panel: SpeedStar NOTE: After engine starts, the YELLOW alert light will flash for a 3 minute warm-up cycle of the SAFE SENSE system. (The machine may be operated during this warm-up period.) After the warm-up cycle, the alert light will go out. None of the SAFE SENSE lights will OXYGEN SENSOR: If light comes on be illuminated as long as the machine is running safely.
  • Page 20: Wiring Diagram/Schematic

    Wiring Diagram/Schematic: ST21KWA/E, ST24KWA/E, ST28KWA/E 012507...
  • Page 21: Deck Sub-Assembly And Parts List

    Deck Sub-Assembly: SpeedStar 072805...
  • Page 22 Deck Sub-Assembly: SpeedStar PART# DESCRIPTION PART# DESCRIPTION MP139200 Skirt, Steel, 21”, Assy PD006021 Pad, 21”, Blue Blend MP139300 Skirt, Steel, 24”, Assy PD006024 Pad, 24”, Blue Blend MP139400 Skirt, Steel, 28”, Assy PD006028 Pad, 28”, Blue Blend MP125200 Liner, Shroud, 21” ST, Machined NB9319 Screw, Cap, BH, 1/4-20 x 1 1/4 MP073300...
  • Page 23: Bulkhead Sub-Assembly And Parts List

    Bulkhead Sub-Assembly: SpeedStar 022709...
  • Page 24 Bulkhead Sub-Assembly: SpeedStar PART# DESCRIPTION PART# DESCRIPTION NB061100 Screw, Phillips, 1/4-20 x 1/2 MP038300 Battery Cover Molding MP042500 Filter, Foam, Air, Intake NB6110 1/4” Lock Washer MP063300 Hood, Battery, SpeedStar, Black MP045500 Pipe Insulation, 1/2 I.D., 3/8 Wall MP8310 Velcro Hook Studs MP026300 #8 x .25 Spacer MP106500...
  • Page 25: Regulator Assembly And Parts List

    Regulator Sub-Assembly: SpeedStar 012507...
  • Page 26 Regulator Sub-Assembly: SpeedStar PART# DESCRIPTION MP017900 Fuel Adjustment Assembly NB2470 3/8 Fuel Line NB7282 Hose, Clamp, No. 38 MP037900 Regulator, Nolff MP099700 Regulator Assembly (17 HP) MP099701 Regulator Assembly (17 HP E Models)1 MP045500 Pipe Insulation, 1/2 I.D., 3/8 Wall MP4500 Quick Rego Female Coupler MP4340...
  • Page 27: Kawasaki Engine Sub-Assembly And Parts List

    Engine Sub-Assembly: SpeedStar 022503...
  • Page 28 Engine Sub-Assembly: SpeedStar REF PART# DESCRIPTION KA110607006 Gasket KA317R0800 Nut, 8mm KA490652078 Oil Filter MP107300 Muffler, Catalytic (17 HP) MP018000 Oxygen Sensor (KWA models) MP015200 Oxygen Sensor Plug (KWC models) MP036200 Switch, Micro, 12V, 15A NB5282 Bolt, BH, 5/16-18 X 1 MP4790 Norprene Tubing MP4787...
  • Page 29 THE OBLIGATION OF AMANO PIONEER ECLIPSE CORPORATION 1) The obligation of Amano Pioneer Eclipse under this warranty is limited to repairing or replacing, at its option, any part which is proven to be defective in material or workmanship under normal use for the applicable period stated above.
  • Page 30 © 2007 Amano Pioneer Eclipse Corporation P.O. Box 909 Sparta, NC 28675 1-336-372-8080 1-800-367-3550 www.pioneer-eclipse.com Article #: Serial #: DOM: Built in NC, USA CE Certification applies only to machines for export with SafeSense® as indicated by KWAE extension on part number.
