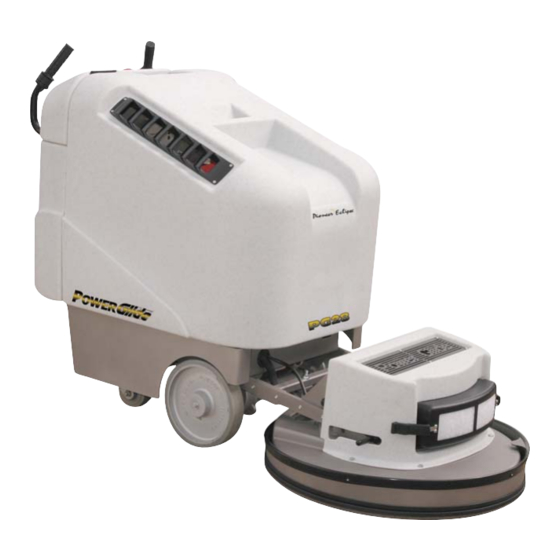

Ultra-high speed battery burnisher

Advertisement

Quick Links

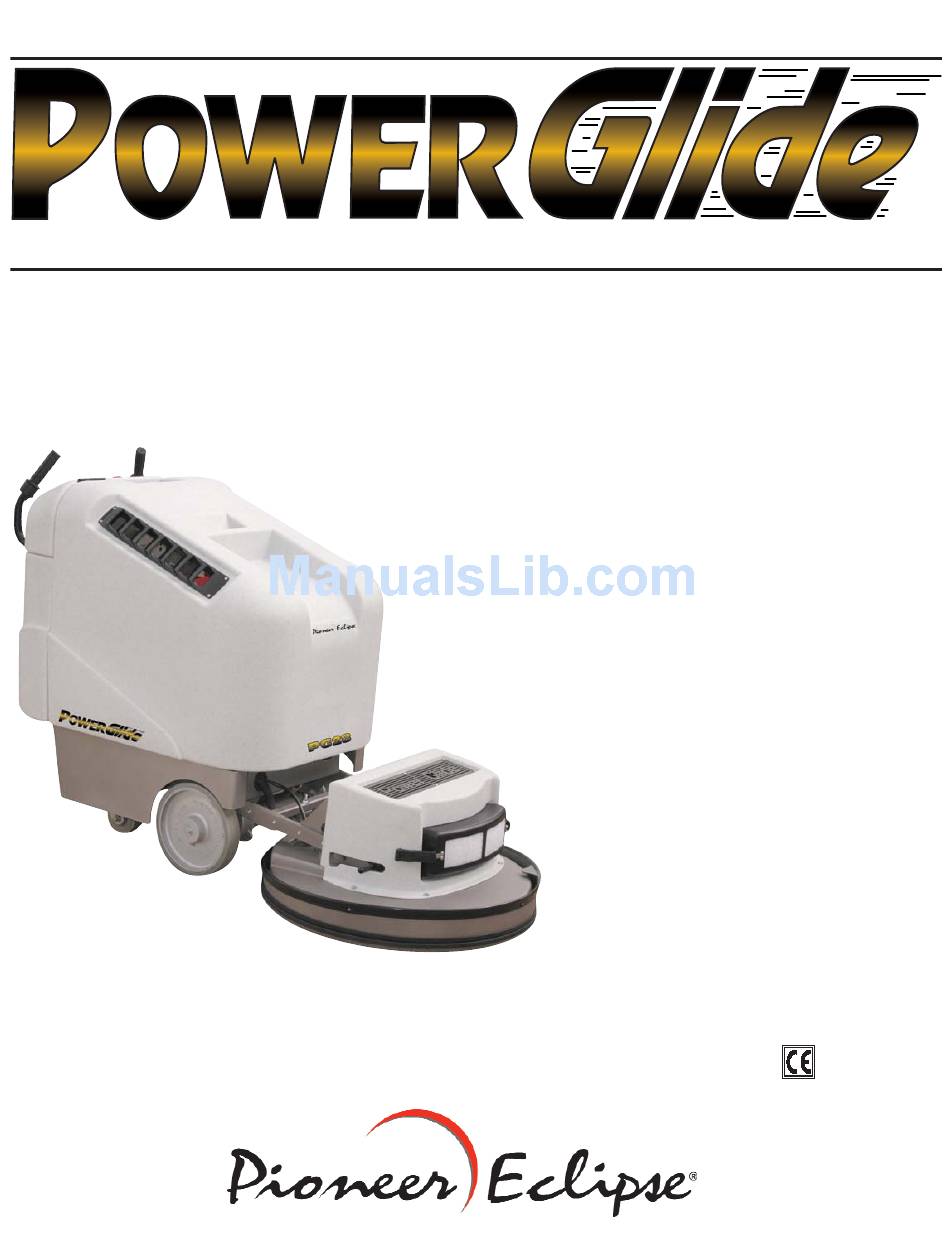

O p e r a t o r ' s M a n u a l
Ultra - High Speed Battery Burnisher
Failure to read and understand this manual
before operating this machine or performing service on
this machine may result in injury to the operator or
nearby personnel or result in damage to the machine
or nearby property. Each operator must be trained in
the operation of this machine before being allowed to
use it. Contact Amano Pioneer Eclipse Customer
Service at 1-800-367-3550 or 1-336-372-8080 or an
authorized Amano Pioneer Eclipse Distributor to
inquire about training or to request a replacement
manual.
La falta de leer y de entender este manual antes de
usar esta máquina o de realizar servicio en esta
máquina puede dar lugar a lesión al operador o al
personal próximo o a resultado en daño a la máquina
o propiedad próxima. Cada operador debe ser
entrenado en la operación de esta máquina antes de
ser permitido utilizarla. Ponerse en contacto con el
servicio de Amano Pioneer Eclipse 1-800-367-3550 o
1-336-372-8080 o un distribuidor autorizado por
Amano Pioneer Eclipse para investigar sobre el
entrenamiento o para solicitar un manual.
Manquer de lire et de comprendre ce manuel
d'utilisation avant l'utilisation de cette machine ou
avant faire de maintenance sur la machine peut être
résulter en blessure à l'opérateur ou au personnel
proche ou peut endommagé la machine ou la propriété
proche. Chaque utilisateur doit être entraîné dans
l'opération de cette polisseuse avant l'utilisation.
Veuillez contacter le service àpres-vente de Amano
Pioneer Eclipse à 1-800-367-3550 ou 1-336-372-8080
et/ou un distributeur de Amano Pioneer Eclipse pour
vous renseigner concernant l'entraînement ou pour
obtenir un autre manuel d'utilisation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Glide and is the answer not in the manual?

Questions and answers

Summary of Contents for Pioneer Eclipse Power Glide

  • Page 1 Chaque utilisateur doit être entraîné dans l'opération de cette polisseuse avant l'utilisation. Veuillez contacter le service àpres-vente de Amano Pioneer Eclipse à 1-800-367-3550 ou 1-336-372-8080 et/ou un distributeur de Amano Pioneer Eclipse pour vous renseigner concernant l'entraînement ou pour obtenir un autre manuel d'utilisation.
  • Page 3 FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Record This Important Information Date of Purchase Purchased From Address City State Phone Contact Machine Model Machine Serial Number Important Phone Numbers Medical Emergency...
  • Page 4: Table Of Contents

    Contents Machine Specifications............2 Storage..............11 Safety Precautions..............3 Operation on Inclines...........11 Operator Responsibility..........4 Post-Operation Check List........11 Operator-Ear Sound Pressure Level.....4 Lubrication of Rear Casters.........11 Hand-Arm Vibration..........4 Plastic Cover Removal........12 Machine Preparation............5 Battery Maintenance..........12 Unpacking the Machine.........5 Static Drag Chain..........12 Connecting the Batteries........5 Maintenance..............13 Installing Steel Skirt..........5 Maintenance Chart..........13...
  • Page 5: Machine Specifications

    Machine Specifications - PowerGlide VOLTAGE: .....36 VOLT (6 - 6 VOLT BATTERIES) BATTERIES:......6 VOLT DEKA 8L16 370 AH OPTIONAL 6 VOLT DISCOVER 390 AH BURNISHING RATE:..(28in) ± 23,000 ft /hr (2136.77 m /hr) (24 in) ± 20,000 ft /hr (1858 m /hr) BURNISH WIDTH:..........28 in (71 cm) 24 in (61cm)
  • Page 6: Safety Precautions

    Do not make unauthorized modifications or alterations slope. Only use a truck or trailer that will support the to this machine. Amano Pioneer Eclipse assumes no weight of the machine to transport. Block machine liabilities for injury or damage resulting from an wheels when transporting.
  • Page 7: Operator Responsibility

    Indoor tests are conducted in a semi-anechoic or sound deadening room. This machine is designed and manufactured for burnishing indoor hard floor surfaces. Amano Pioneer Eclipse does The test surface is a single sheet of floor covering at not recommend use of this machine in any environment least 1m (3.3ft) wider and longer than the equipment...
  • Page 8: Machine Preparation

    3. DANGER! Incorrect connection of batteries can Machine Preparation cause explosion and/or serious injury. Unpacking the Machine 4. Double check battery connections. 1. Cut and remove black bands holding the box to the pallet. 5. Connect the Anderson plugs together. 2.
  • Page 9: Machine Operation

    Machine Operation Controls and Instruments...
  • Page 10: Drive Controls

    Drive Controls Multiple Display Indicator, MDI The right motorcycle grip, twist counter clockwise to control speed. There is a forward/ reverse switch on the dash panel to control direction. Forward: Press the top of the F/R switch to select the forward direction.
  • Page 11: Pad Pressure Gauge

    Pad Pressure Gauge Pad Pressure Adjustment Lever The pad pressure gauge indicates the load on the burnish The pad pressure adjustment motor. The white area represents light burnishing. The lever adjusts the amount of light green area represents the normal burnish operation. down pressure exerted on the The dark green represents heavy burnishing operation.
  • Page 12: Onboard Battery Charger

    Onboard Battery Charger To charge the batteries, first drive the machine to a flat, Battery Charger Controls: dry, well-ventilated area then turn the machine off. Lead 1. Three-digit display + symbol (1), to view A=charging acid batteries only (Check the current, U=battery voltage, h=charging time, water level in all the battery C=charging ampere-hours (AH), E=energy used...
  • Page 13: How The Machine Works

    How the Machine Works Stopping and Turning Off Machine The Burnish components of the machine are: To stop the machine, release the twist grip throttle and the machine will smoothly break to a stop and after a delay Burnish pad holder (less than 5 seconds), the burnish motor will stop.
  • Page 14: Dust Box Removal

    Dust Box Removal Operation on Inclines Monitor the dust box carefully and empty as needed. The CAUTION! When using the machine, go slowly on dust collection system will not operate effectively when the inclines. dust box is full. Under heavy burnishing conditions the dust box should be emptied every hour.
  • Page 15: Plastic Cover Removal

    Never add acid to the batteries, only distilled water. Plastic Cover Removal Always keep the battery caps on, except when adding water or taking hydrometer readings. The back panel has two screw knobs at the bottom on either side. Remove Check the electrolyte level in each battery cell before and both screw knobs and pull the cover after charging, and after every 50 hours of operation.
  • Page 16: Maintenance

    Maintenance Lead Acid Batteries Only *These items must be performed with the proper tools and training. Contact a Amano Pioneer Eclipse Factory Certified Technician unless you have the proper equipment and mechanical proficiency.
  • Page 17: Machine Troubleshooting

    Machine Troubleshooting No Traction Signal...
  • Page 18: Zapi Pm4Q Alarm Codes

    Alarm Codes ZAPI PM4Q *Given the following alarm codes, troubleshooting should only be done by Amano Pioneer Eclipse Factory Certified Technician. A programming handset may be required for troubleshooting.
  • Page 19 Alarm Codes ZAPI PM4Q (continued)
  • Page 20: Dash Panel

    POWERGLIDE DASH PANEL RF005900 11/16/05...
  • Page 21: Dash Panel

    DASH PANEL Ref. Part # Description Qty. PG006400 PANEL, DASH, POWERGLIDE MP207100 SWITCH, PUSH-PULL, SEALED MP236900 AMMETER, 0-150 AMPS MP209700 SWITCH, ROCKER, 36V, DPST MP209800 SWITCH, ROCKER, 36V SPST, w/ GREEN LIGHT MP233900 DISPLAY, MULTI-FUNCTION MP234700 FUSE, GLASS, 3 AMP MP234600 FUSEHOLDER, HTB-261 PG011800...
  • Page 22: Dash Panel Manual Lift

    POWERGLIDE DASH PANEL MANUAL LIFT RF010900 041907...
  • Page 23: Dash Panel Manual Lift

    POWERGLIDE DASH PANEL MANUAL LIFT Ref. Part # Description Qty. PG006400 PANEL, DASH, POWERGLIDE MP207100 SWITCH, PUSH-PULL, SEALED MP236900 AMMETER, 0-150 AMPS MP209700 SWITCH, ROCKER, 36V, DPST MP209800 SWITCH, ROCKER, 36V SPST, w/ GREEN LIGHT MP233900 DISPLAY, MULTI-FUNCTION MP234700 FUSE, GLASS, 3 AMP MP234600 FUSEHOLDER, HTB-261 PG011800...
  • Page 24: Motor Cover And Dustbox

    POWERGLIDE MOTOR COVER & DUSTBOX RF006000 02/20/07...
  • Page 25 MOTOR COVER Ref. Part # Description Qty. PG012700 COVER, MOTOR, BRUSHED, 2.5 HP, ASM. NB007400 BOLT, PHILLIPS PAN HD, #8-32x1/2 PG012600 COVER, MOTOR, BRUSHED, 2.5HP 1 PG005001 GRILL, MOTOR COVER, POWERGLIDE, PAINTED NB043600 SCREW, PAN HD, HI-LO, #8 X 3/8 MP237300 LATCH, DRAW, 4.16, W/REV.
  • Page 26: Battery Cover

    POWERGLIDE BATTERY COVER 12/1/05 RF006100...
  • Page 27: Battery Cover

    BATTERY COVER Ref. Part # Description Qty. MP153600 LOUVERS, PLASTIC, PROFILE, NB041100 SCREW, COUNTER, SINK, HI-LOW, #8 x 3/8 “ NB6545 SCREW, CAP, HH, 5/16-18 X 1 MP101900 HINGE, RH MP184400 LABEL, SAFETY, MANUAL, OPERATORS MP208500 DECAL, VOLTAGE, HAZARDOUS MP101800 HINGE, LH PG000800 COVER, BATTERY, TRIMMED,...
  • Page 28: Deck And Skirt

    POWERGLIDE DECK AND SKIRT...
  • Page 29 24” PADHOLDER ASSEMBLY 28” PADHOLDER ASSEMBLY Ref. Part # Description Qty. Ref. Part # Description Qty. MP264400 PADHOLDER, 24” POWERGLIDE, MP236600 PADHOLDER, 28” POWERGLIDE COMPLETE COMPLETE 1.1 MP196300 RING, RELIEF, STRESS, LARGE, 1.1 MP196300 RING, RELIEF, STRESS, LARGE, PADHOLDER PADHOLDER 1.2 NB3275 NUT, LOCK, 1/4 1.2 NB3275...
  • Page 30: Covers And Batteries

    POWERGLIDE COVERS AND BATTERIES 123108...
  • Page 31: Covers And Batteries

    COVERS AND BATTERIES Ref. Part # Description Qty. PG000800 BATTERY COVER (SEE BATTERY COVER ASM.) NB031200 BOLT, HEX, 5/16-18 X 5/8”, SS NB043600 SCREW, PAN HD, HI-LO, #8 X 3/8” PG015900 PANEL, DASH, POWERGLIDE PG015100 PANEL, DASH, POWERGLIDE, MANUAL LIFT PG000200 COVER, DASH, POWERGLIDE NB020800...
  • Page 32 POWERGLIDE FRAME ASSEMBLY 123108...
  • Page 33 POWERGLIDE FRAME ASSEMBLY POWERED LIFT 123108...
  • Page 34: Frame

    Ref. Part # Description Qty. FRAME ASSEMBLY 47 MP140000 FELT, DOT Ref. Part # Description Qty. 48 NB054500 SCREW, SOCKET, 3/8-16 X 5/8, FLAT, CS4 NB9560 SCREW, TRUSS HD, 10-24 X 1 1/2 49 PG006300 SHROUD, 28”, POWERGLIDE, ASM. 1 NB9645 WASHER, FLAT, #10 50 NB3267...
  • Page 35 Ref. Part # Description Qty. 92 NB3275 NUT, LOCK, 1/4 93 NB3260 NUT, 5/16-18, NC 94 MX1045 NUT, HEX, 1/4-20 95 NB9200 SCREW, MACHINE, ROUND HD, 6-32 x 5/8 96 NB007100 WASHER, FLAT, #6 97 MP224100 NUT, LOCK, NYLON, 6-32 98 MX1025 SCREW, PAN HD, 10-24 X 3/4 99 NB5350...
  • Page 36: Frame Manual Lift

    POWERGLIDE FRAME ASSEMBLY MANUAL LIFT 123108...
  • Page 37 FRAME ASSEMBLY MANUAL LIFT CONTINUED FROM PG. 30 Ref. Part # Description Qty. 109 NB6530 SCREW, CAP, HH, 1/4-20 X 1 110 PG014200 HANDLE, LIFT, MANUAL, WELDMENT 111 NB055200 SCREW, 1/4-20 X 5/8, CS 112 PG014601 LATCH, LIFT, MANUAL, PG 113 PG014701 BRACKET, LIFT, MANUAL, PG 114 MP282600...
  • Page 38: Wiring Schematic

    POWERGLIDE WIRING DIAGRAM 123108...
  • Page 39: Wiring Schematic Manual Lift

    POWERGLIDE WIRING DIAGRAM MANUAL LIFT 070208 RF011100...
  • Page 40: Warranty

    The PowerGlide Battery Burnisher is warranted to be free of defects in materials and workmanship for a 1) The obligation of Amano Pioneer Eclipse under this warranty is limited to repairing or replacing, at its period of three (3) years from the date of purchase by...
