4.4 Cabinet Connections
4.4.1 Power Connector
In the controller cabinet, AC power will need to be provided to each of the Vantage cameras. It is best to
power the cameras from auxiliary breakers, to make sure that any damage to the camera power cables
does not affect intersection cabinet power or controller operation. A terminal block attached to an
external auxiliary circuit breaker(s) or an auxiliary power strip can be used to make the camera AC
power connections in the controller cabinet. To use the power strip, simply terminate each of camera
power cables with an AC power plug. All circuit breakers and or fuses should be sized appropriately for
the load current.

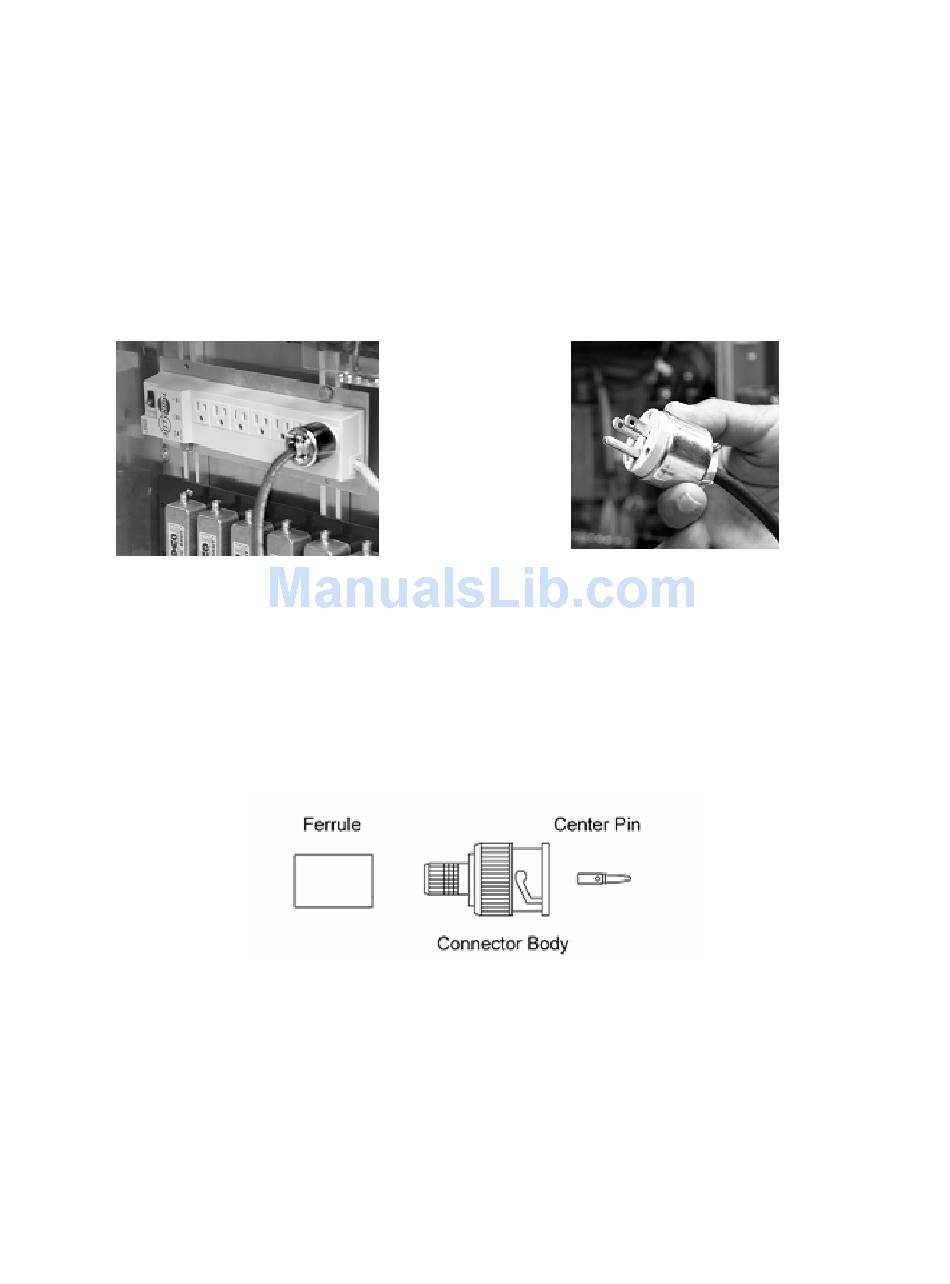

Figure 4.12
Camera Power Connections Using
a Surge Protected Power Strip
NOTE: When calculating camera current requirements remember that the Vantage standard
RZ‐4 Advanced camera is rated at 25 watts max.
4.4.2 Video (BNC) Connector (for connection to Edge Processor)
1. At the Edge2 processor end of the coaxial cable, slide the outer ferrule of the Amphenol BNC
connector over the cable.
Note: In the following steps, distances are measured from the end of the cable. Make all cuts
sharp and square. Make sure the coaxial cable stripping tool is properly adjusted.
Use an Ideal coaxial cable stripping tool or manually strip the coaxial cable to the required
dimensions.
Figure 4.14
Piece Amphenol BNC Connector
Figure 4.13
AC Power Plug On the End
of the Camera Power Cable
7
