4.3.1 Power Connection

1. Strip the outer sheath from the power cable back 1" (figure 4.4).
2. Strip the insulation from the three conductors back ¼" (figure 4.4).
3. Loosen the large cord grip (figure 4.5).
4. Thread power cable through large cord grip (figure 4.5).
5. Remove power connector from ship kit.
6. Install the conductors in the connector as per drawing (figure 4.6). Ensure polarity of conductors
is correct.
NOTE: Failure to install the conductors correctly could result in camera damage and create an
electrical shock hazard.
7. Insert the plug into the connector on the back of the camera (figure 4.7).
8. Tighten the large cord grip.

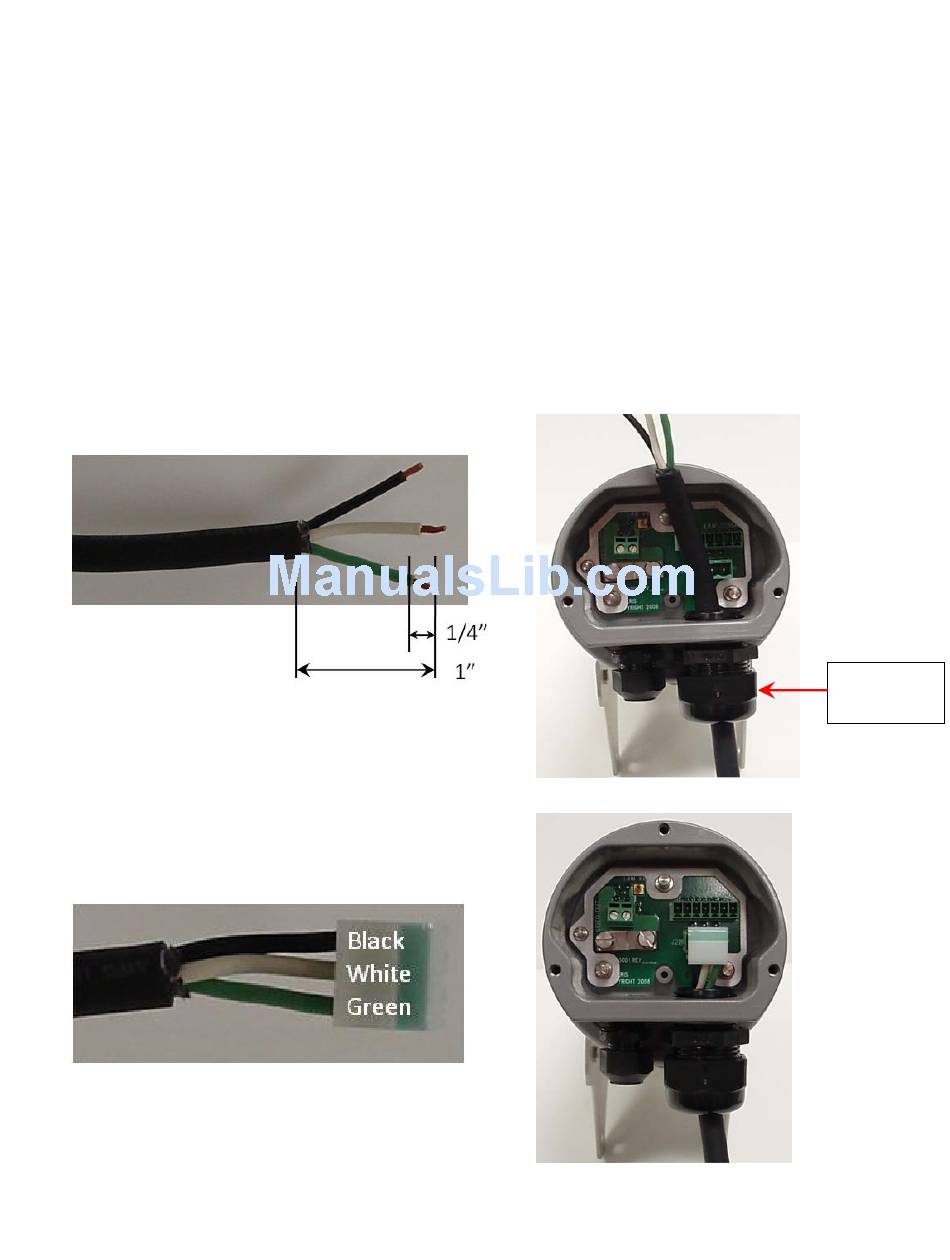

Figure 4.4
Figure 4.6
Figure 4.5
Figure 4.7
Large Cord
Grip
