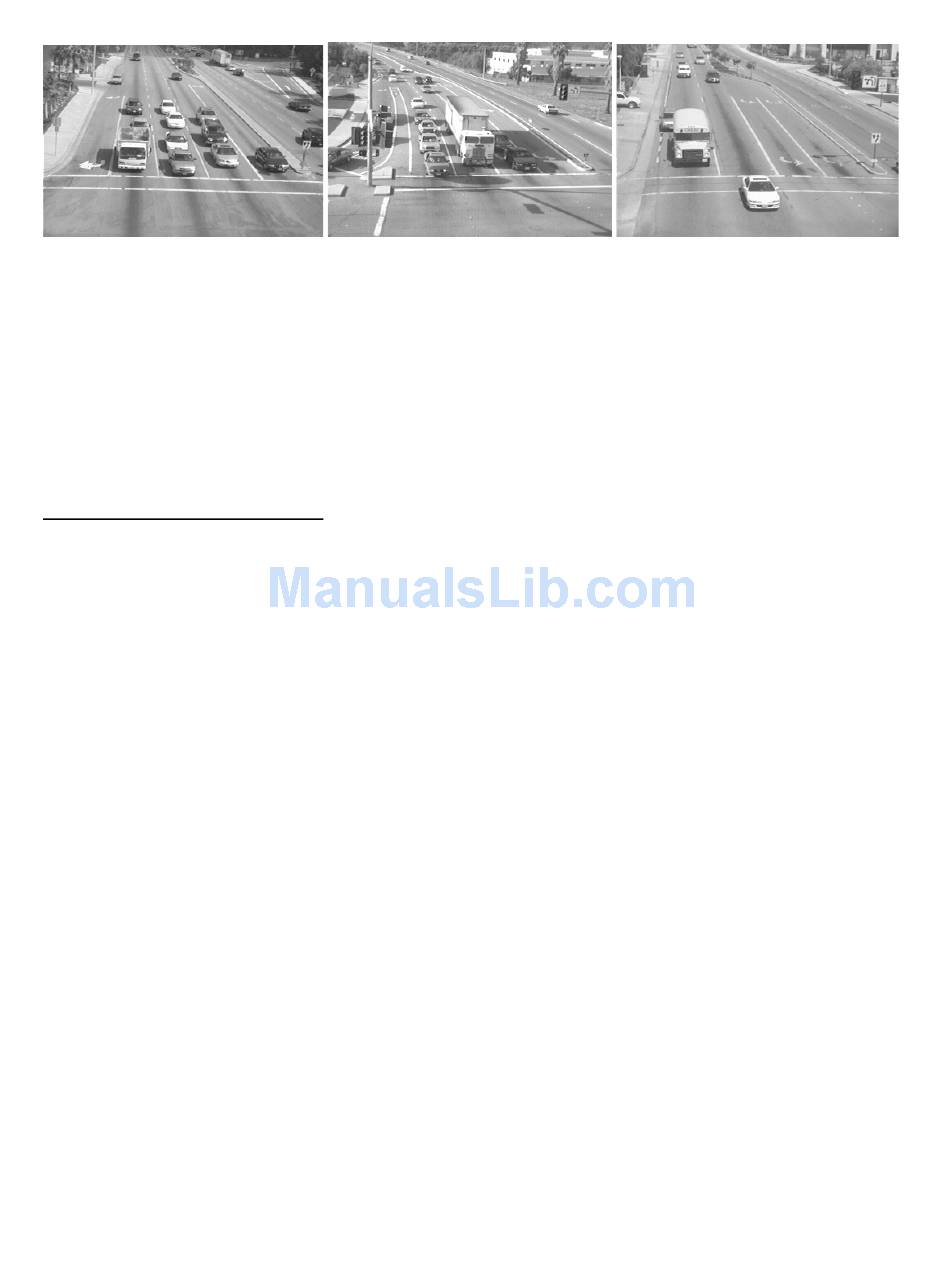

Figure 5.32
Examples of a Good Fields of View
Proper Camera Focus Adjustment
When you are sure that you can obtain the desired FOV, you will need to focus the camera using the
LAM. Proper focus is crucial for optimal Vantage system detection performance. A camera that is out of
focus can significantly reduce the Vantage systems ability to perform; so it is important to take the time
to adjust the focus properly.
Monitor Vertical Hold Adjustment
Some monitors do not show the user the true field of view, therefore, it is actually possible to have
horizon in the FOV and not realize it. If the monitor has a vertical hold adjustment control, roll the
picture up and down to see everything that is actually contained in the frame. When purchasing a
monitor for use with the Vantage systems it is recommended that you buy a monitor with a vertical hold
adjustment or an underscan switch.
Process Completed
Disconnect the LAM and reconnect the camera power and video cable. You are ready to move on to
setting up the Vantage processor.
