Introduction

RZ4‐Advanced
eliminating the Deutsch and BNC connectors; only wire stripping tools and a screw driver are
needed to install and terminate the camera cables. A coax cable stripper with a brown insert
should be used to simplify the coax cable preparation. The RZ4‐Advanced camera is backward
compatible with existing camera installations in the field. Simply cut the existing cables and
connectors, strip the power and coax cables, and terminate with a standard screwdriver to the
back of the new RZ4‐Advanced camera. The RZ4‐Advanced camera also gives technicians the
option to set up the field of view (FOV) from the bucket truck or on the ground at the cabinet.
Technicians can use Iteris' lens adjustment module (LAM or LAMVIEW) with an adapter harness
to set up as currently installed at the camera, OR use an adapter box connected to your existing
LAM, set up and configure the camera FOV on the ground.
2

Features and Benefits

•
Specifically designed for vehicle detection applications
•
Optimized to work with Iteris' advanced detection algorithms
•
Quick‐click connectors and adjustable camera mount streamline installation and minimize setup
time – no crimping tools required!
•
Set up and configure at the camera or from the ground
•
Cable termination located at the rear of the camera simplifies cable connection
•
Advanced heater enables optimal video detection performance in adverse weather conditions.
3

Tools and Equipment

3.1 Camera Installation Tools

1. Banding tool
2. Ideal Industries 45‐521 coax stripping tool (optional)

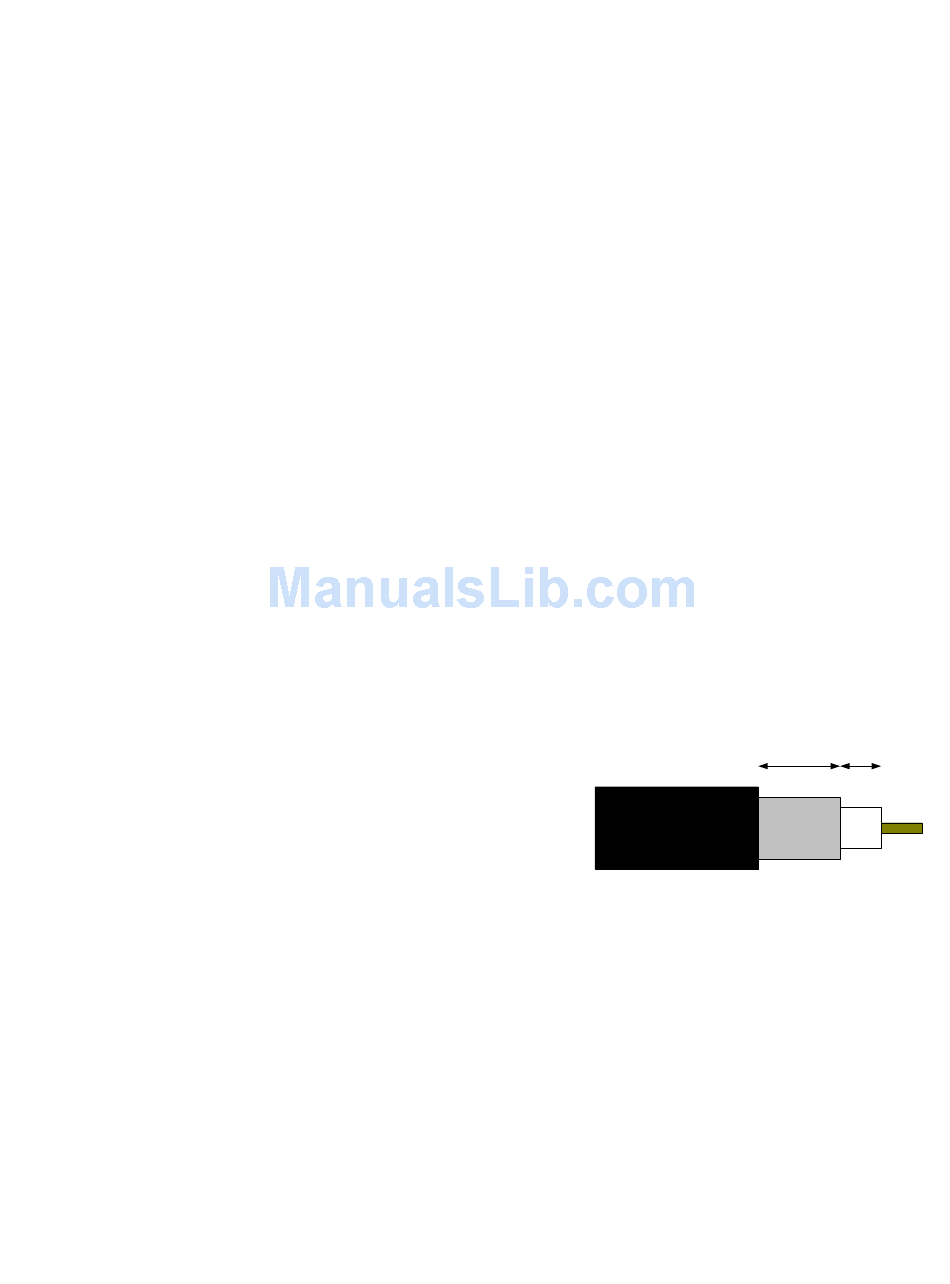

a. Brown Cartridge: A .328 B .109in
3. Ideal Industries 30‐483 coax crimping tool and die set
4. 9/16" and 3/4" wrench
5. Socket wrenches
6. Screwdrivers
7. Wire cutters and wire strippers
8. Cable cutter
9. Two‐way communication equipment (optional)
10. Bucket truck
11. Video monitor/patch cable
12. Vantage Lens Adjustment Module (LAMVIEW)
13. Volt/Ohmmeter
14. Electrostatic discharge (ESD) wrist strap (for Edge processor installation)
TM
our new premium camera offering that provides for streamlined installation by
A B
Figure 3.1
