5.2.5 Installing the LAM Adapter Module

1. Remove Power Cable (Deutsch Connector) from LAM/LAMView if attached (figure 5.18).
2. Slide Communication Cable/Connector through hole in the bracket on LAM Adapter (figure 5.19).
3. Hook LAM Adapter bracket under the bottom of the existing LAM bracket on the back of the
LAM/LAMView (figure 5.19).
4. Hook Top Mounting Bracket over the top left of the bracket on the back of the LAM/LAMView
and slide into position (figure 5.20).
5. Screw the two brackets together with the thumbscrews provided (figure 5.21).
6. Connect the LAM Adapter Video BNC connector to the BNC connector on the LAMView or to the
Video input on the cabinet monitor (figure 5.22).
7. Connect the LAM/LAMView Communication Cable/Connector to the Power/Comm Connector
(Deutsch Connector) on the bottom of the LAM Adapter (figure 5.22).
8. Connect the Power Connector supplied as part of the LAM Adapter kit (Deutsch Connector) to
the LAM/LAMView (figure 5.22).
9. Connect the coax video cable from the camera to the BNC connector on the LAM Adapter (figure
5.22).
10. The unit is now ready for use.

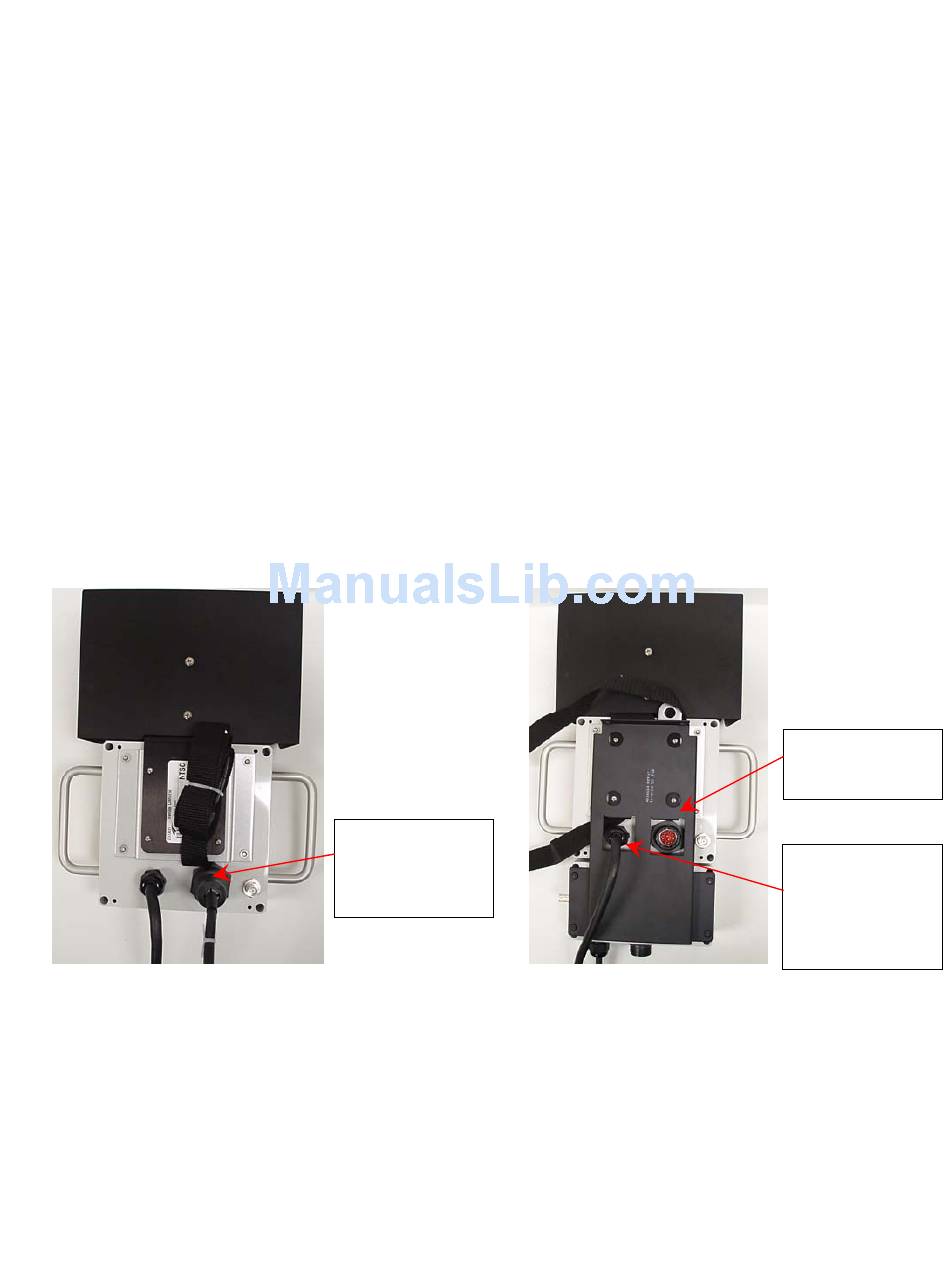

Figure 5.18
Remove Power
Cable (if
attached)
Figure 5.19
Hook under
LAM Bracket
Slide
Communication
Cable through
opening
