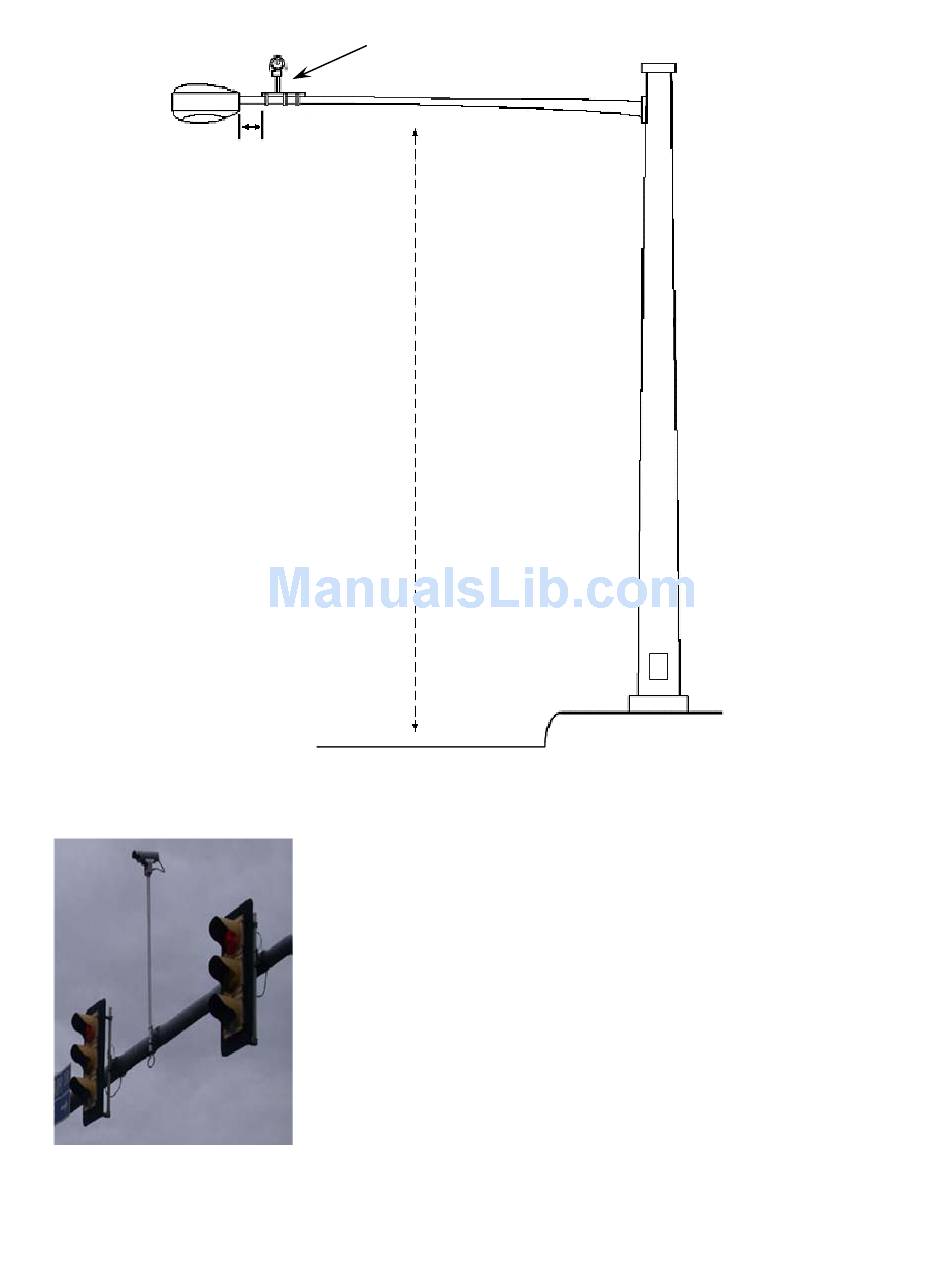

Iteris RZ4 Advanced Installation Manual page 13

Approximately 12"
(30cm) from the
luminaire head
Camera height should be
at least 30' (10m) above
Figure 5.3
Possible Camera
Mounting Location
Figure 5.2
Note: If the luminaire arm is too short to center the camera over the
field of view, especially on wide roadways, then an extension bracket on
the mast arm may be the better choice. Centering the camera is just as
important as gaining camera height. The mast arm mounting would end
up with a camera height of about 25 feet when using a 6 foot extension
bracket.
Luminaire Arm Mounting with Pelco Bracket
11
