5
Camera Installation
Camera installation involves the following steps:
•
Camera Mounting
•
Field Of View
•
Surge Protection
5.1 Camera Mounting

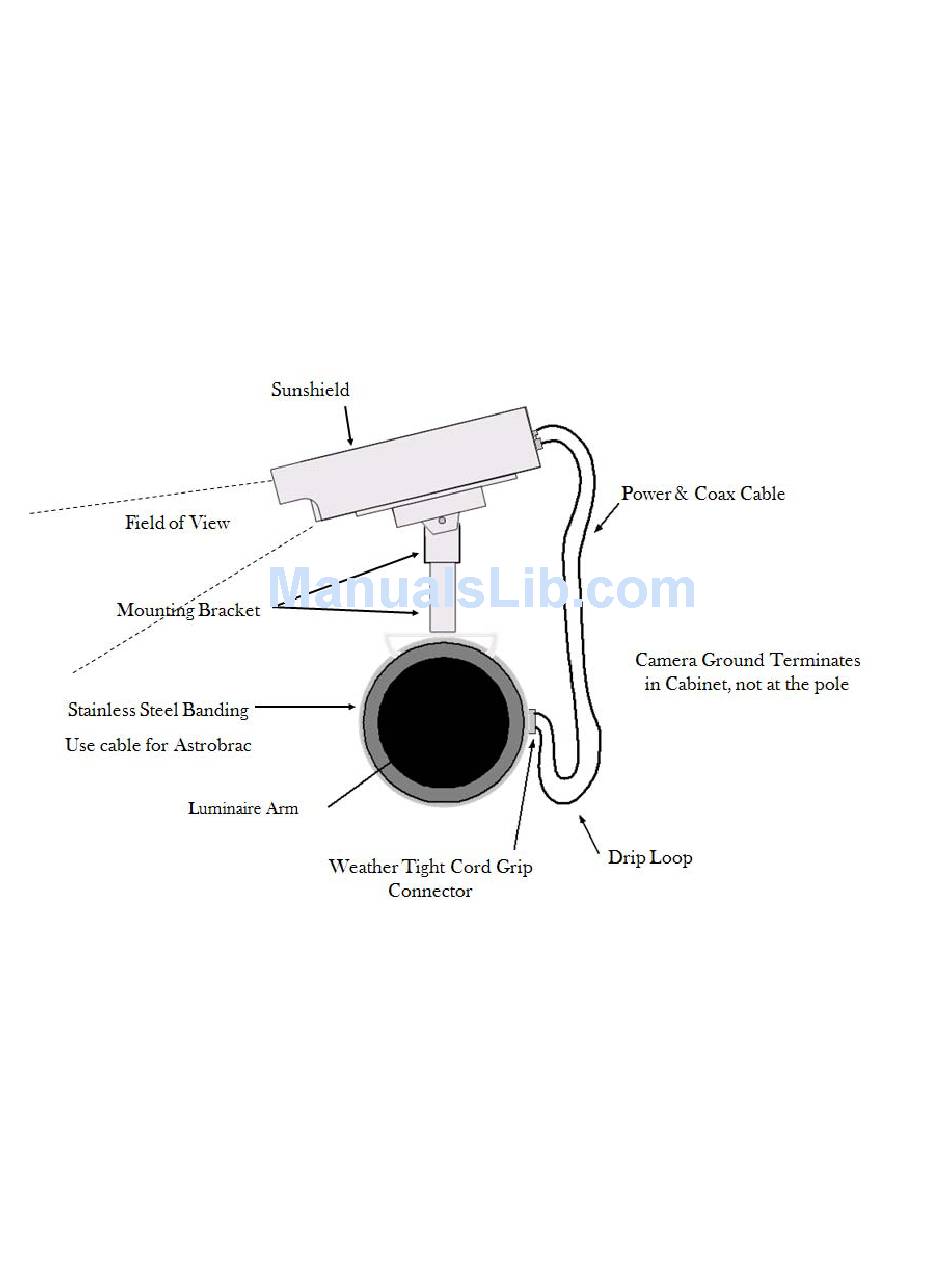

The physical camera mounting is done using a camera bracket that is banded to the luminaire arm or
can be mounted on the mast arm using a suitable extension bracket.
One possible camera mounting location is up on the luminaire arm centered over the field of view,
however, it is not always possible to use this mounting. Camera mounting is critical to providing the
proper field of view, something that will be discussed in detail in the next section.
Figure 5.1
10
