5.2.2 Electronic Camera Adjustment

Lens Adjustment Module (LAM) Hook Up
TM
RZ4‐Advanced is Iteris' new premium camera offering that eliminates the need for a bucket truck to
perform Field Of View setup and configuration. The advanced communication features of this camera
allow control of zoom, focus and saving of settings of the FOV from the ground through the video coax
cable.
To enable current LAM/LAMView modules to take advantage of this feature, a LAM Adapter module has
been developed.

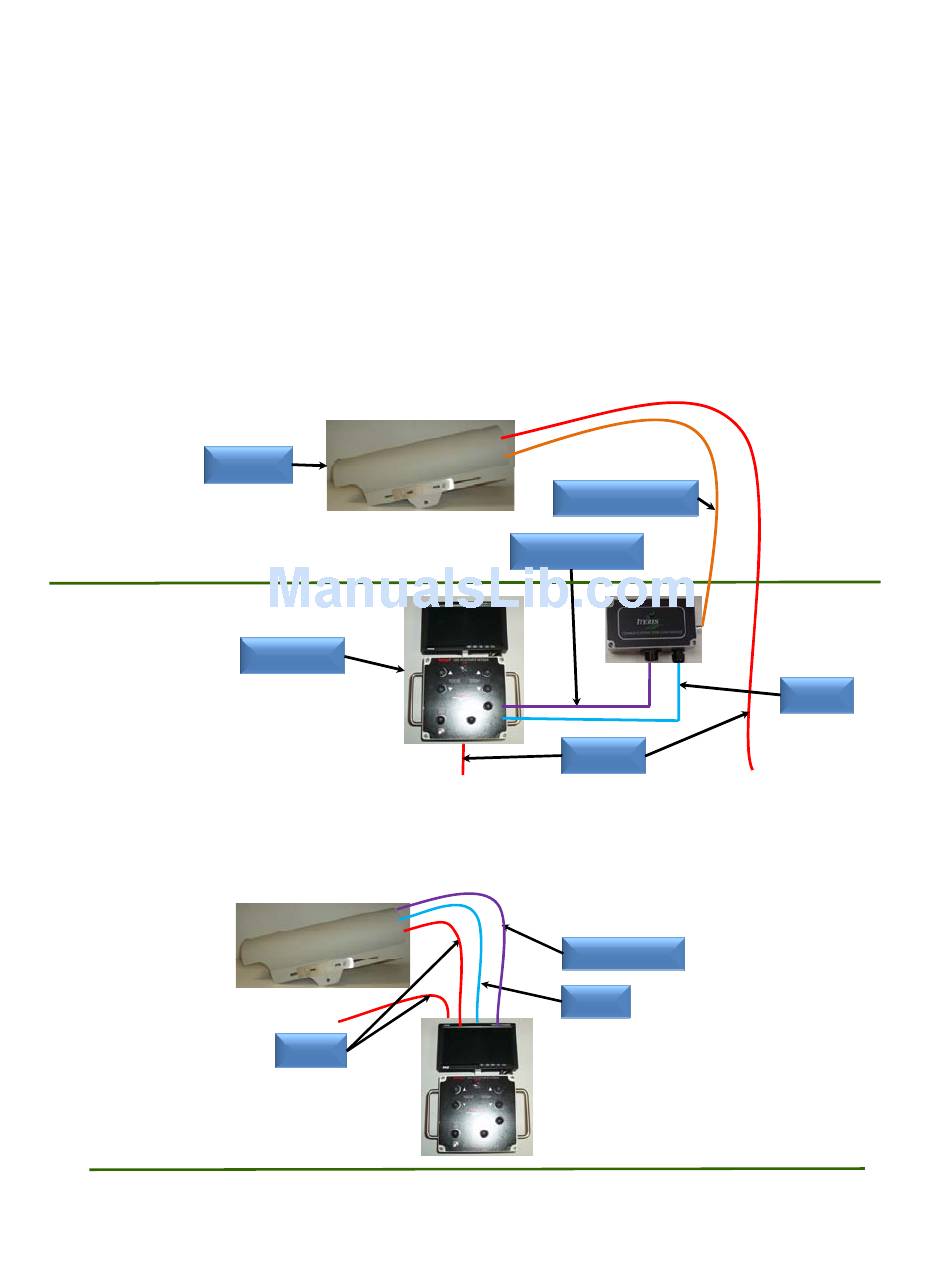

The following diagram shows how the LAM Adapter is used in the case where the lens control is
conducted from the controller cabinet (ground level).
Camera
Ground Level
If, however, the RZ4-Advanced camera needs to be adjusted directly at the back of the camera a LAM
Harness Adapter is provided.
Ground Level
LAMView
Figure 5.14
Power
Figure 5.15
Video/Comm
Lens Control
Power
Lens Control
Video
Video
