5.2.6 Installing the LAM Harness Adapter

NOTE: Before beginning, power to the Camera should be turned off.
1. Remove Power Cable (Deutsch Connector) from LAM/LAMView (figure 5.24).
2. Attach Power Adapter Cable to LAM/LAMView (figure 5.25).
3. Attach 6ft Video Cable (supplied with LAM/LAMView) to the LAM/LAMView (figure 5.25).
4. Disconnect the power connector from the back of the camera, remove through cord grip (figure
5.26).
NOTE: If the power to the camera has not been turned off this connector will be energized. Please
handle with extreme caution. Electrical shock hazard exists.
5. Attach Power/Comm/Video Adapter Cable to the back of the camera (figure 5.26).
6. Connect the Comm (Deutsch Connector), Video and Power from the Camera to the
LAM/LAMVIEW (figure 5.27).
7. Restore power to the camera.
8. The unit is now ready for use.

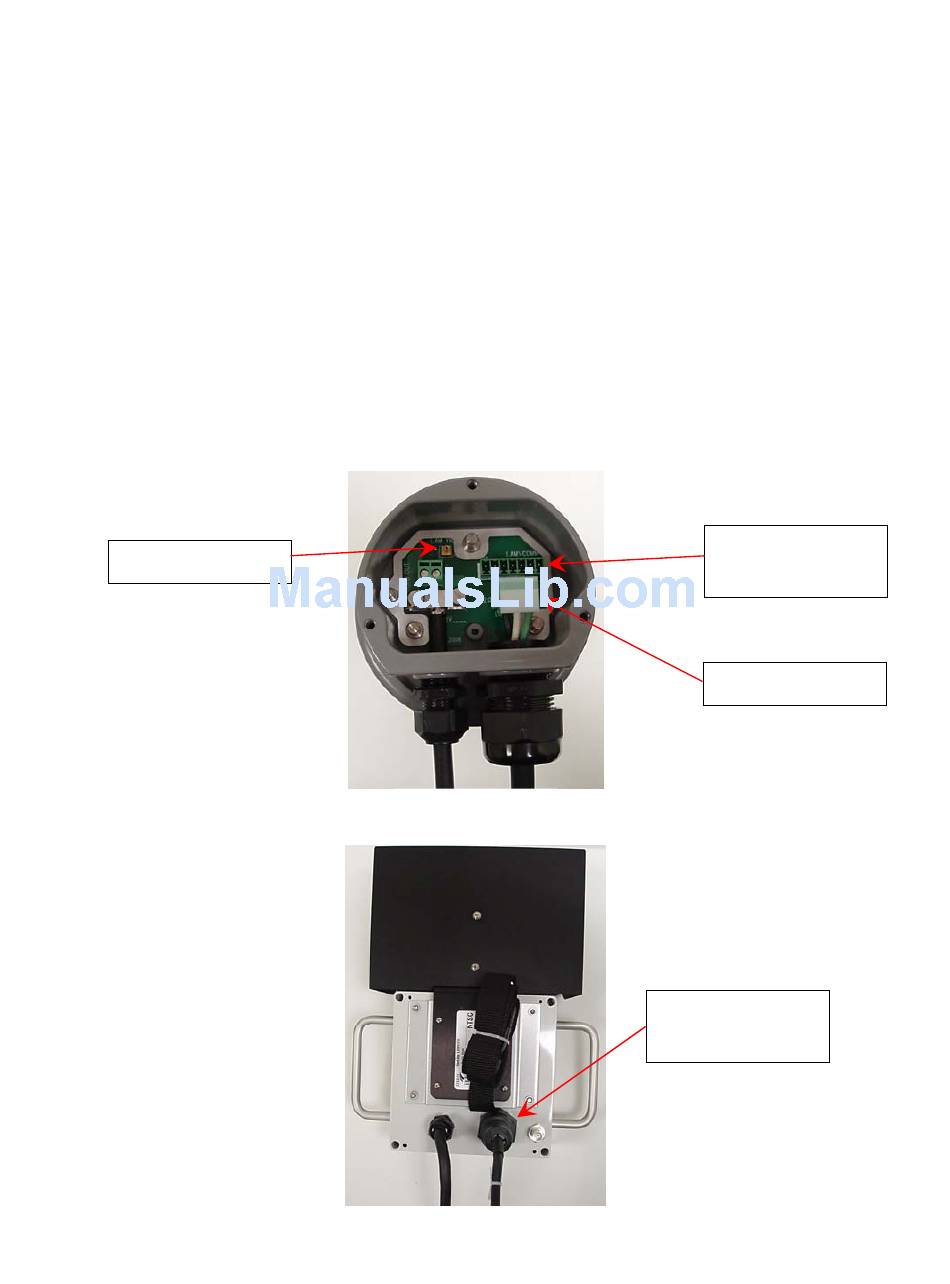

LAM Video Output
Figure 5.23
Figure 5.24
LAM Control
Connector
Power Connector
Remove Power
Cable
21
