Summary of Contents for Proceq Pundit PL-200PE

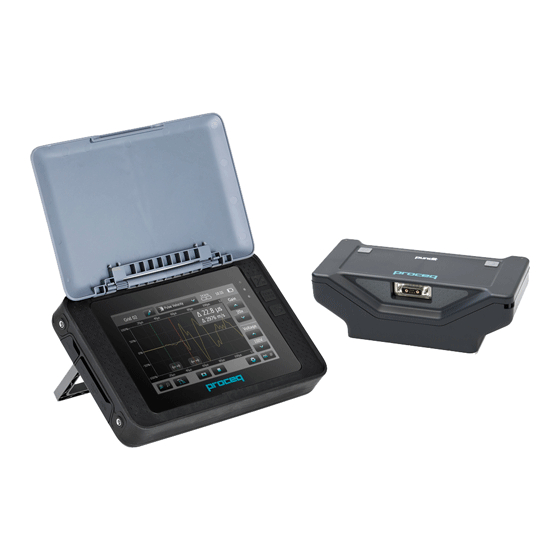

- Page 1 Pundit PL-200PE ® OPERATING INSTRUCTIONS 60 Years of Innovation 60 Years of Innovation Made in Switzerland Made in Switzerland...
- Page 2 Pundit Pulse Echo Transducer* Pundit Pulse Echo Cable* Pundit Pulse Echo Contact Tester* Battery Charger USB Cable DVD with Software Documentation* Carrying Strap Calibrated Tape* *Part of the “Pundit Pulse Echo Trans- ducer” package (Part No. 327 40 130) © 2014 Proceq SA...
- Page 3 Overview Pundit PL-200PE © 2014 Proceq SA...
-
Page 4: Table Of Contents
Further Functions ............17 Operation ..............6 Getting Started ..............6 Main Menu .................7 Settings ................7 Measurement Screen ............9 Measurement Modes ............11 Measuring with Pundit PL-200PE ........12 Explorer ..............12 Analysis of B-Scans ............13 Ordering information ..........13 Units .................13 Transducers ..............13 Accessories ..............14 Maintenance and Support ......... -
Page 5: Safety And Liability
This manual contains important information on the safety, use and main- equipment. tenance of the Pundit PL-200PE. Read through the manual carefully be- fore the first use of the instrument. Keep the manual in a safe place for • Carry out the stipulated maintenance properly and at the correct time. -
Page 6: Technical Specifications
The information provided in this manual covers the Pulse Echo application Pundit PL-200 Pundit PL-200PE only. The Pundit PL-200PE also supports all functionality provided by the Range 0.1 – 7930 μs Pundit PL-200. It is necessary to purchase the BNC adapter cable (Part No. -
Page 7: Main Menu
Each individual dry contact transducer can be tested for correct func- tionality. The graphic on the right hand side of the screen indicates which trans- ducer pair is to be tested (blue highlight). Press the Pulse Echo Contact © 2014 Proceq SA... - Page 8 Color Range and Color Scheme Color range may be automatic or manual. When set to manual, the color gain icon 9 appears on the measurement screen. Four different color schemes may be chosen according to preference. © 2014 Proceq SA...
-
Page 9: Measurement Screen
Voltage: Adjust the transmitter voltage. For best results, it is best to begin with low transmitter voltage and a low gain setting. Then increase until a stable signal level is achieved. Signal clipping should be avoided. © 2014 Proceq SA... - Page 10 Pulse velocity may be subsequently adjusted on saved files in the Explorer or in PL-Link. NOTE! Typical shear wave pulse velocities for concrete are in the region 2000 - 2500 m/s © 2014 Proceq SA...
-
Page 11: Measurement Modes
The spacing between A-Scans is entered in the “Settings” menu. A-Scan display at the right side of the measurement screen. This feature Position the transducer at the starting position. is also available on saved B-Scans in the Explorer or in PL-Link. © 2014 Proceq SA... -
Page 12: Measuring With Pundit Pl-200Pe
• For B-Scans a test grid should be drawn out on the surface. Alterna- • Generally, the minimum lateral dimension should be two times the tively Proceq provide a calibrated tape (Part No. 327 010 71) that can thickness of the object, or the depth of the anomaly you are trying to be stuck on the surface for the test and then removed afterwards. -
Page 13: Analysis Of B-Scans
Ordering information Analysis of B-Scans Please refer to the separate booklet Pundit PL-200PE B-Scan Measure- units ment Examples. PART NO. DESCRIPTION 327 10 002 Pundit Touchscreen without transducers Consisting of: Pundit Touchscreen, BNC adapter cable, battery charger, USB cable, DVD with software, docu-... -
Page 14: Accessories
327 01 033 Battery complete Warranty information 327 01 053 Quick charger Each instrument is backed by the standard Proceq warranty and extend- 710 10 028 Calibration rod 25 μs for Pundit PL-200 ed warranty options. 710 10 029 Calibration rod 100 μs for Pundit PL-200 •... -
Page 15: Pl-Link Software
Connecting to a Pundit touchscreen unit Connect the Pundit Touchscreen Unit to a USB port, then select the fol- lowing icon to download data from the Pundit Touchscreen Unit. © 2014 Proceq SA... -
Page 16: Adjusting The Settings
• The current A-Scan (e. g. #22) is indicated in the table. view of a measurement object. Adjusting the date and time In each case a drop down selection box will appear with the choice of Right click in the “Date & Time” column. setting. © 2014 Proceq SA... -
Page 17: Exporting Data
Click on the “Export as graphic” icon to open the following data or selected readings only. window which allows the various export options to be chosen. Clicking “Auto Scale” adjusts the zoom parameters of the waveform display to an optimum setting. © 2014 Proceq SA... - Page 18 2, lit. A, Office 410 197374 St. Petersburg Russia Phone/Fax + 7 812 448 35 00 info-russia@proceq.com Subject to change. Copyright © 2014 by Proceq SA, Schwerzenbach. All rights reserved. 820 327 03E ver 05 2014 Made in Switzerland...
