Summary of Contents for Proceq PUNDIT PL-200

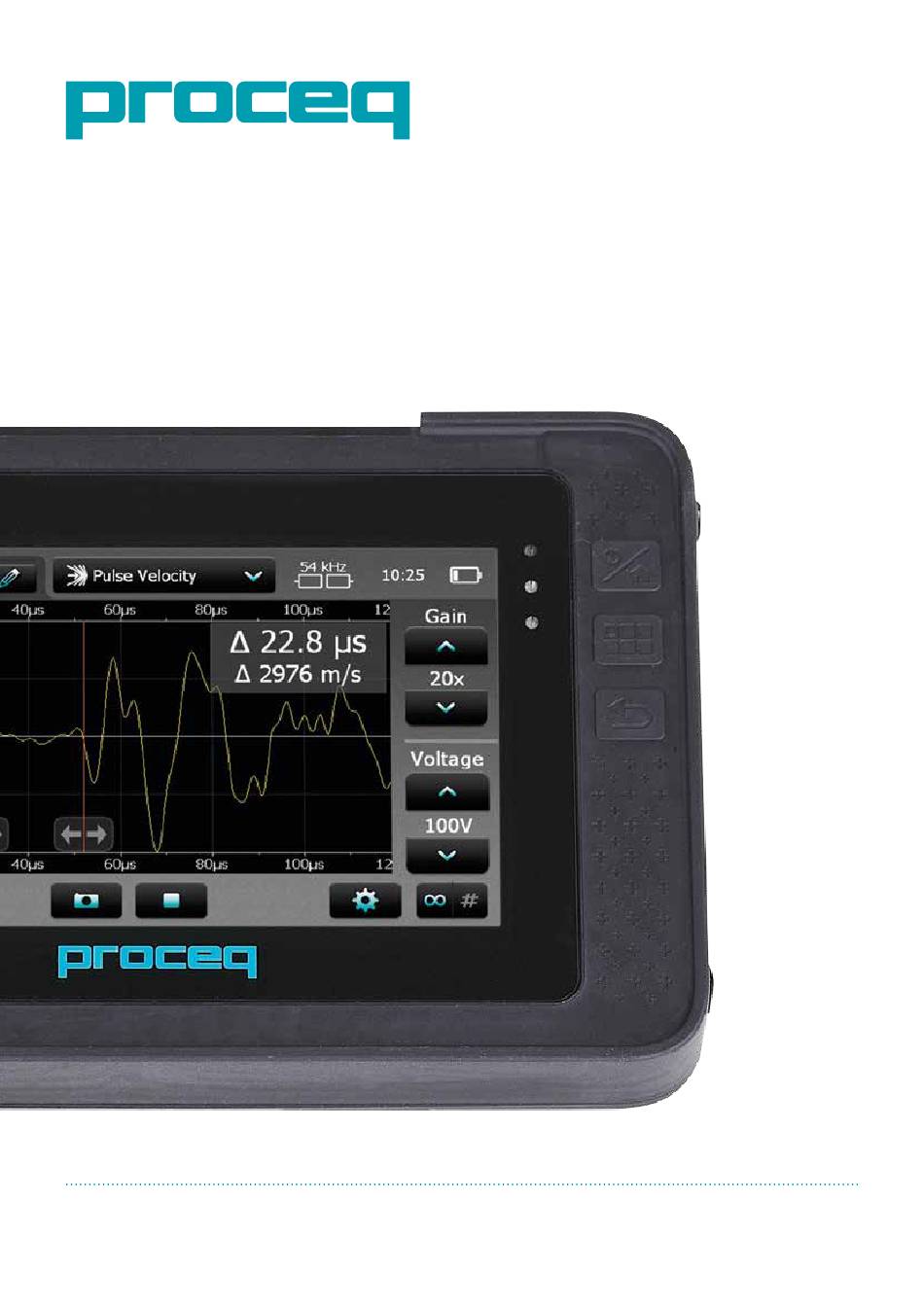

- Page 1 PUNDIT PL-200 ® ULTRASONIC PULSE VELOCITY PUNDIT PL-200PE ® ULTRASONIC PULSE ECHO 60 Years of Innovation Made in Switzerland...
-
Page 3: Applications Overview
Ultrasonic Pulse Velocity The Pundit PL-200 and Pundit PL-200PE continue the illustrious Pundit tradition that began in the 1970s. They Uniformity are the first Proceq products to be developed using a new Compressive strength Slab thickness generation and design-protected Touchscreen Unit. - Page 4 PUNDIT PL-200 ® ULTRASONIC PULSE VELOCITY Pundit PL-200 – The new Benchmark for Comprehensive Measurement Modes Ultrasonic Pulse Velocity Testing Line Scans Best-in-class Ultrasonic testing instrument providing superior Assesses the concrete features for on-site testing: uniformity and detects cracks as well as other Line Scans for concrete uniformity assessment defects.
- Page 5 ULTRASONIC PULSE VELOCITY Pulse Velocity Transducers Proceq offers an extensive range of transducers providing highest accuracy and a proven field track record. The selection of the correct transducer is dependent on the aggregate/grain size and the dimensions of the test object.

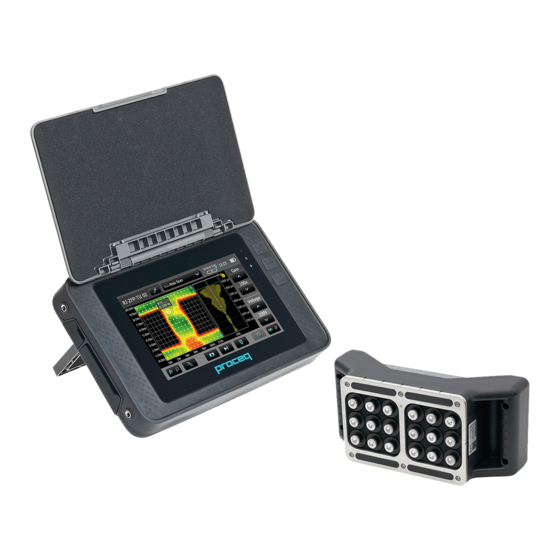

- Page 6 PUNDIT PL-200PE ® ULTRASONIC PULSE ECHO Pundit PL-200PE – Groundbreaking Scan Modes Ultrasonic Pulse Echo Testing A-Scan The Pulse Echo technology widely extends the application » A-Scan allows direct analysis of the raw signal. range of the Pundit Touchscreen Unit and offers a variety of »...
- Page 7 *A pulse velocity of 2500 m/s has been used for the computation of the wavelength. Expert Ultrasonic Training Testing with the Pulse Echo technology requires in-depth knowledge of the test object and application characteristics. Proceq offers comprehensive ultrasonic training seminars imparting this knowledge as well as all functionalities and features of the Pundit instruments.
-
Page 8: Technical Services
TECHNICAL SERVICES NDT Concrete Ultrasonic Training Concept Proceq’s training modules are strongly focused on a practical approach to routine testing of in-situ concrete quality using the Pundit range of ultrasonic products. Training facilities are located at Proceq headquarters in Schwerzenbach (Switzerland), Chicago (USA), Singapore and London (UK). -
Page 9: Ordering Information
710 10 028 Calibration rod 25 µs for Pundit PL-200 presented in good faith and believed to be correct. Proceq SA makes no warranties and excludes all liability as to the completeness and/or accuracy of the information. For the use and application of any product manufactured and/or sold by Proceq SA 710 10 029 Calibration rod 100 µs for Pundit PL-200... - Page 10 Made in Switzerland...
