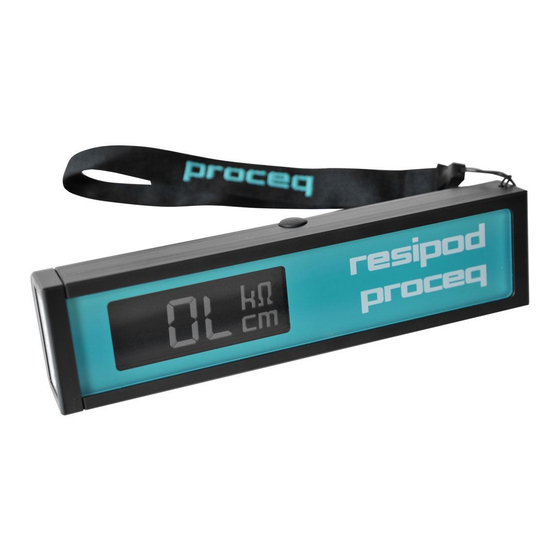

Summary of Contents for Proceq Resipod Family

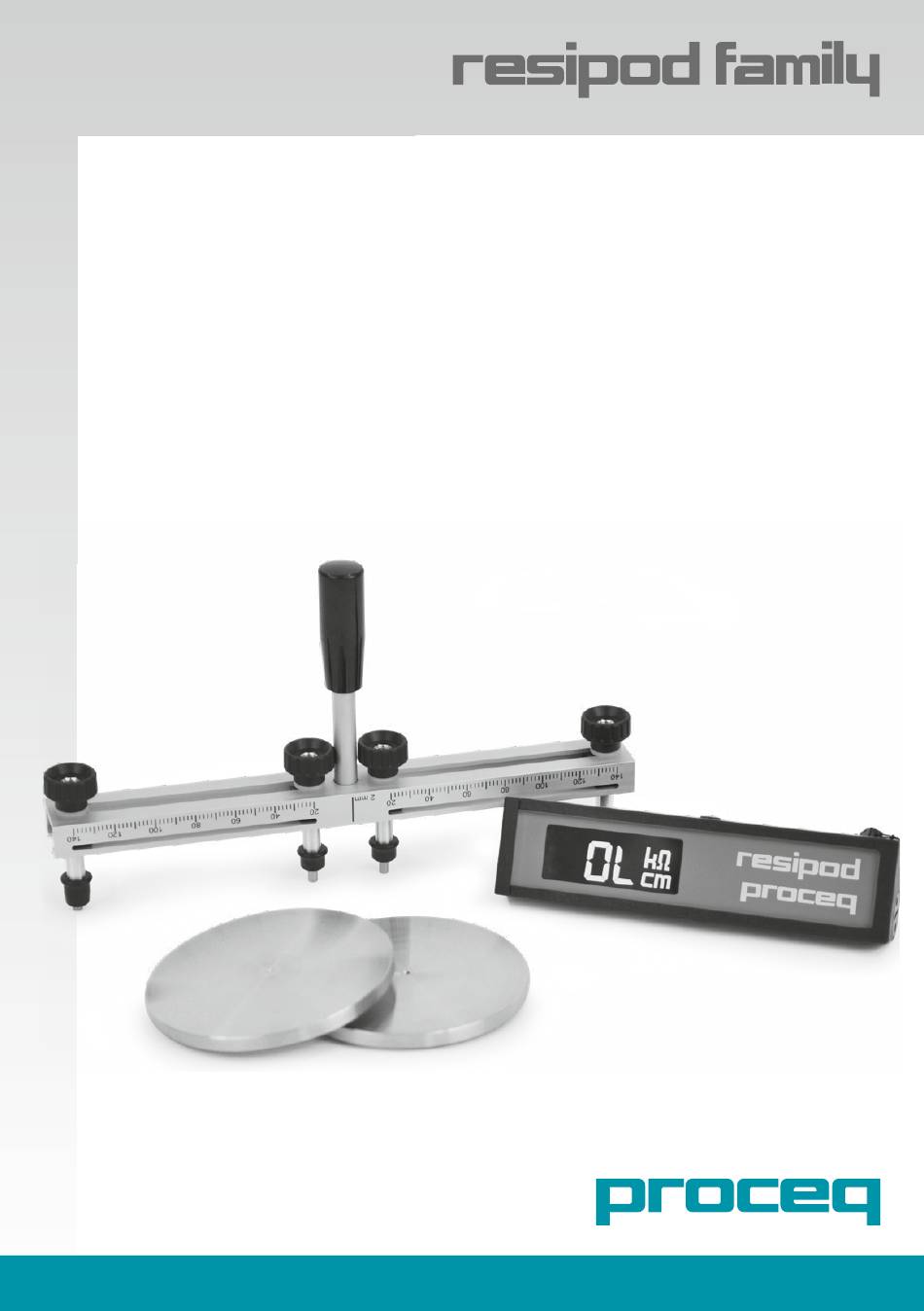

  • Page 1 Operating Instructions Concrete Durability Testing Made in Switzerland...

  • Page 2: Table Of Contents

    ResipodLink Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 © 2017 Proceq SA...

  • Page 3: Safety And Liability

    . All information contained in this documentation is presented in good faith and believed to be correct . Proceq SA makes no warranties and excludes all liability as to the completeness and/or accuracy of the information . Safety Instructions The instrument is not allowed to be operated by children or anyone under the influence of alcohol, drugs or pharmaceutical preparations .

  • Page 4: The Resipod Measurement Principle

    . The current is carried by ions in the pore liquid . The calculated resistivity depends on the spacing of the probes . Resistivity ρ= 2πaV/l [kΩcm] © 2017 Proceq SA...

  • Page 5: The Resipod Display

    Display resolution depends on the measured resistivity and the nominal current flowing . See technical data . Battery status The battery status symbol will be displayed when the accumulator is at 10% of its capacity . Otherwise it is blanked out . © 2017 Proceq SA...
  • Page 6 . It may also be used to introduce a correc- tion based on a form factor if desired . Whenever the apostrophe to the right of the kΩ symbol is lit, it indicates that a correction factor has been applied . © 2017 Proceq SA...

  • Page 7: Measuring Resistivity With Resipod

    . The size of the contact however, means it is not always possible to drive the full 200µA into the concrete to obtain the maximum measurement resolution . © 2017 Proceq SA...

  • Page 8: Memory Function

    1 to 19 . Each object can contain up to 99 readings . Object 1 - Reading 1 Object 19 – Reading 99 You may check the last entry “Object – Reading” number simply by pressing the “Save” button when the instrument is not in hold modus . © 2017 Proceq SA...
  • Page 9 All 19 objects have been used . It is necessary to delete readings before using the memory further (see above) . Reading number is >99 The current object is full . Move to the next object to store further readings (see above) . Memory is empty . © 2017 Proceq SA...

  • Page 10: Resistivity Measurements On Site

    3% for saturated concrete and 5% for dry concrete . Influence of moisture content A higher moisture content lowers the resistivity . This can be due to saturation or due to a change in the water/cement ratio . © 2017 Proceq SA...

  • Page 11: Applications

    – a RILEM TC-154 technical recommendation” by Rob B . Polder . The values have been converted to kΩcm to match the display of the Resipod . More details on the interpretation of results may be found in that document . © 2017 Proceq SA...
  • Page 12 The effectiveness of a cathodic protection system depends very much on the resistivity of the concrete . Mapping out the resistivity prior to installation allows the structure to be divided into separate zones requiring different levels of current flow . © 2017 Proceq SA...

  • Page 13: Quality Control Applications

    . Details of the test can be found on the official AASHTO website: http://tig .transportation .org/Pages/SurfaceResistivityTest .aspx The Resipod family is completed by two further instruments differentiated by application as can be seen in the table: Resipod...
  • Page 14 The resistance of the foam inserts varies with the pressure applied . The resistances of the top and bottom inserts can be measured as follows: Test set-up to measure the resistance of the upper foam insert (R upper Upper plate Upper foam insert Lower plate © 2017 Proceq SA...
  • Page 15 Upper plate Upper foam insert Cylinder under test Lower foam insert Lower plate The measured resistance is the sum of the resistance of the cylinder plus the two inserts, therefore: – R cylinder measured upper lower © 2017 Proceq SA...

  • Page 16: Resipod Geometric

    The geometric correction factor for cylinders is designed to comply with the latest research in- tended to extend the current AASHTO surface resistivity method to other sample geometries . In addition to this the user also has the possibility to enter a self-determined correction factor . © 2017 Proceq SA...

  • Page 17: Units, Parts And Accessories

    197 x 53 x 69 .7 mm (7 .8 x 2 .1 x 2 .7 inch) Weight 318 g (11 .2 oz) Operating temperature 0° to 50°C (32° to 122°F) Storage temperature -10° to 70°C (14° to 158°F) © 2017 Proceq SA...

  • Page 18: Maintenance And Support

    Expected test result Expected test result Current range 38 mm (1.5”) spacing 50 mm spacing 200µA (upper row) 12 (±0 .2) kΩcm 16 (±0 .2) kΩcm 50 µA (lower row) 90 (±1 .8) kΩcm 120 (±2 .4) kΩcm © 2017 Proceq SA...
  • Page 19 . Support Concept Proceq is committed to providing a complete support service for this instrument by means of our global service and support facilities . It is recommended that the user register the product on www . proceq .com to obtain the latest on available updates and other valuable information .

  • Page 20: Resipodlink Software

    The “Date and time” when the data is downloaded onto the PC . The “Mean Value” . The “Total” number of measurements in this series . The “Standard Deviation” of the measurements in this series . © 2017 Proceq SA...
  • Page 21 . Exporting data ResipodLink allows you to export selected objects or the entire project for use in third party pro- grams . Click on the measurement object(s) you wish to export . © 2017 Proceq SA...
  • Page 22 Confirm to delete . It is not possible to delete individual series . Further Functions The following menu items are available via the icons at the top of the screen: “PQUpgrade” icon - Allows you to upgrade your firmware via the internet or from local files . © 2017 Proceq SA...
  • Page 23 Note: Whenever a non-standard contact spacing, or a geometric correction fac- tor is set, then all measurements on the Resipod are deleted . Therefore it is im- portant to save any measurements stored on the Resipod before commencing . © 2017 Proceq SA...
  • Page 24 (k) based on the options selected above . Downloading loading the Correction Factor to Resipod • Complete the action by pressing OK . A warning will be shown to indicate that all measurements currently saved on the Resipod will be deleted . © 2017 Proceq SA...
  • Page 25 Applied correction = 2πa/k (“a” in cm) . Display of corrected resistivity values in ResipodLink The correction settings are recorded with the measurement data and displayed in ResipodLink as this example of a bulk resistivity measurement shows © 2017 Proceq SA...
  • Page 26 Notes © 2017 Proceq SA...
  • Page 27 Notes © 2017 Proceq SA...
  • Page 28 Five Continent International Mansion, No . 807 Zhao Jia Bang Road Shanghai 200032 Phone +86 21-63177479 +86 21 63175015 info-china@proceq .com www.proceq.com Subject to change without notice . Copyright © 2017 by Proceq SA, Schwerzenbach Part number: 82038104E Made in Switzerland...
