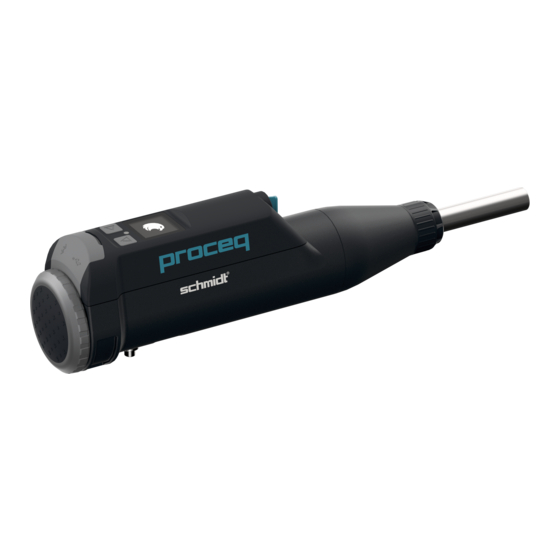

- Page 1 Original Schmidt OS8000 Silver Schmidt OS8200 Tutorial 02 Hammer controls...
- Page 2 Identical operation Original Schmidt OS8000 Silver Schmidt OS8200...
- Page 3 Power ON / OFF Press – ON Press and hold > 5s – OFF Press – ON Press and hold > 5s – OFF Slide © 214 Proceq...
- Page 4 Back light ON / OFF Press and hold > 1.4s - ON Press and hold > 1.4s – OFF Slide © 214 Proceq...
- Page 5 Quick start a new series Press and hold > 1.4s Operation possible at any time Current series is saved New series is started Slide © 214 Proceq...
-
Page 6: Menu Navigation
Menu navigation Scroll Select < < Slide © 214 Proceq... - Page 7 Mode selection (Print versions only) LIVE MEAN S0071 Mode LIVE Scroll Standard PRINT Memory Select Info < Slide © 214 Proceq...
-
Page 8: Standard Selection
Standard selection LIVE MEAN S0071 Mode ASTM Scroll Standard JSCE Memory Select Info < Slide © 214 Proceq... -
Page 9: Clear Memory
Clear memory LIVE MEAN S0071 Mode Delete all Clear series Standard Memory < Cancel Info Delete Any unsynchronized data will be lost Slide © 214 Proceq... - Page 10 Info LIVE MEAN S0071 Serial number Mode OS82-001-0008 Standard Firmware version FW:2.0.1 Memory < Info LIVE MEAN S0071 Slide © 214 Proceq...
- Page 11 Measurement Calculated rebound Standard value Last measurement LIVE LIVE LIVE LIVE 39.5 S0071 X(09) S0071 S0071 S0071 Delete last measurement S0071 Delete whole series Impact No. Series ID Slide © 214 Proceq...
-
Page 12: Viewing Results
Viewing Results Scroll through results Return to series LIVE LIVE LIVE LIVE LIVE 39.5 39.5 X(20) X(20) S0071 S0075 S0075 S0075 S0075 S0075 Delete whole series Start new series No. of impacts Slide © 214 Proceq... -
Page 13: Printing Results
Printing Results Scroll through results Return to series PRINT PRINT PRINT PRINT LIVE 39.5 39.5 X(20) S0071 X(20) S0075 S0075 S0075 S0075 S0075 S0075 Slide © 214 Proceq... - Page 14 Time out No activity > 5 minutes • Power off • Current series is saved • Current series is closed Slide © 214 Proceq...
- Page 15 Download a print out of this tutorial https://www.proceq.com/downloads/ Slide © 214 Proceq...
